Termination for CAN/CAN FD networks - D-Sub 9 Connectors
CAN termination is equipped with a D-Sub 9 connector and a 120 Ohm resistor.

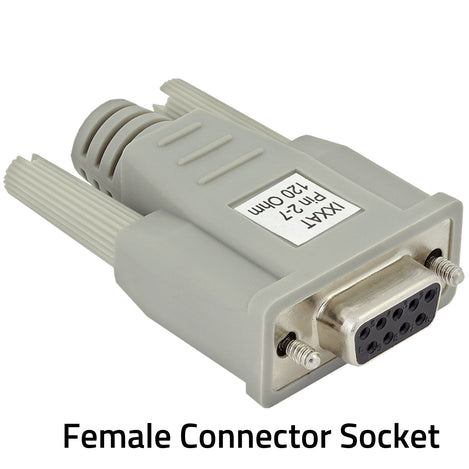

CAN termination is equipped with a Female D-Sub 9 connector and a 120 Ohm resistor.

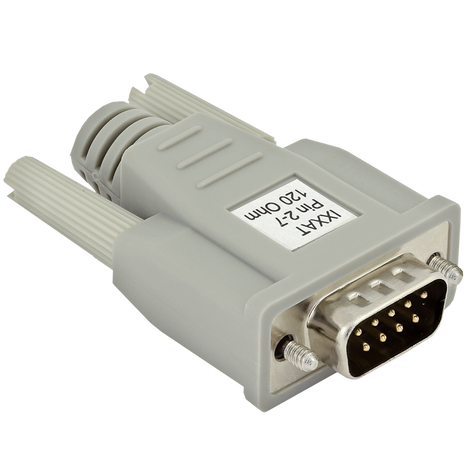

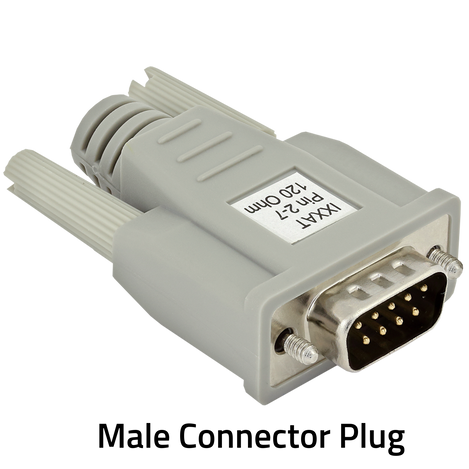

CAN termination is equipped with a Male D-Sub 9 connector and a 120 Ohm resistor.
Gender Changer Connector Socket for D-Sub 9 connectors
Termination for CAN/CAN FD networks - D-Sub 9 Connectors
Product Images
Termination for CAN/CAN FD networks - D-Sub 9 Connectors: Socket (female)
$18.00
SKU: GC-IXT-CAN-TERM-F
MPN: 1.04.0075.01000
Manufacturer: Ixxat
Connector Type
-
$18.00
-
$18.00
-
$42.00
We Have You Covered
Product Information
Product Description
The Ixxat CAN termination is equipped with a D-Sub 9 connector and a 120 Ohm resistor which ensures proper termination of CAN and CAN FD buses. It is used when a CAN node lacks internal termination, or if no CAN node is connected at the end of the CAN bus. Per ISO 11898-2, high-speed CAN systems require end resistors.
D-Sub 9 Connector Types
- Socket (Female)
- Plug (Male)
- Gender Changer (Male to Female)
Optimal Signal Integrity
Integrates a 120 Ohm resistor, ensuring proper CAN/CAN FD bus termination. The resistor is placed between pin 2 (CAN-L) and pin 7 (CAN-H).
Universal Compatibility
Socket and plug types come with a 9-pin D-Sub, fitting standard CAN interfaces.
Convenient Integration
Socket and plug types feature a direct 1-to-1 pin assignment, making connection straightforward.
Order Summary
| SKU | Connector Type | Manufacturer Part # (MPN) |
| GC-IXT-CAN-TERM-F | Socket (Female) | 1.04.0075.01000 |
| GC-IXT-CAN-TERM-M | Plug (Male) | 1.04.0075.02000 |
| GC-IXT-CAN-TERM-MF |
Gender Changer (Male to Female) |
1.04.0075.03000 |
Features
- Optimal signal integrity with proper CAN/CAN FD bus termination
- Universal compatibility with 9-pin D-Sub socket
- Convenient integration with a direct 1-to-1 pin assignment
Documents and Drivers
Documentation
CAN Termination Datasheet - Socket/Plug
D-Sub 9 Connector with CAN Termination Datasheet - Gender Changer
Specifications
Insulator
PBT glass fiber reinforced
Contact
brass, gold plated over nickel
Shell
tin plated
Insulator resistance
500 MOhm min. at 500 V DC
Temperature
-55°C ~ 105°C (-67°F ~ 221°F)
Current rating
3 AMP
Dielectric strength:
500V AC for one minute
Certifications & Standards
WEEE Category: IT and telecommunications equipment
ETIM Classification: EC002584
