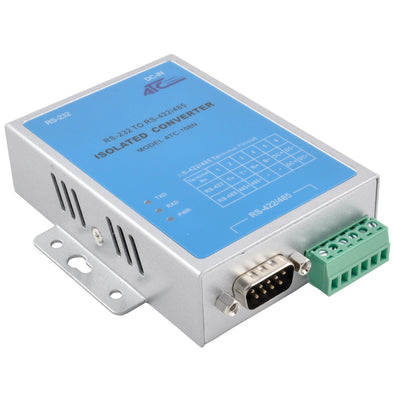

RS485 to RS232 Converter - ATC-107N

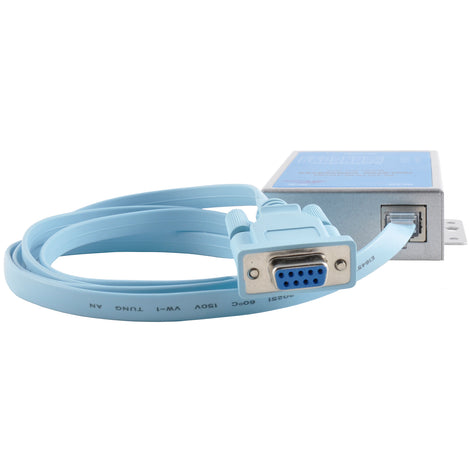

RS485 to RS232 Converter Serial Cable

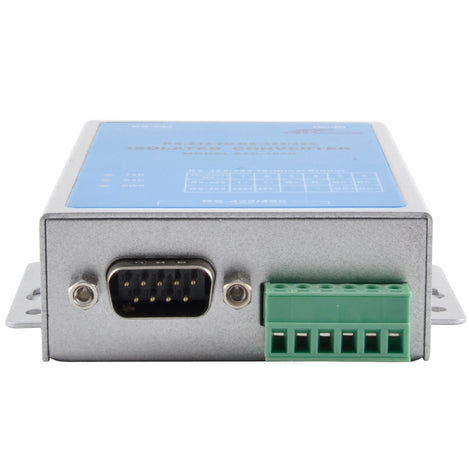

RS485 to RS232 Converter Front

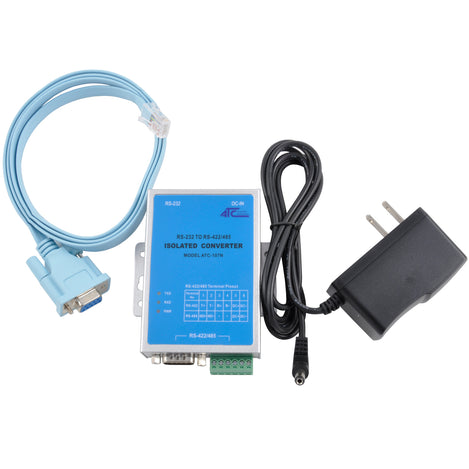

RS485 to RS232 Converter Kit
ATC 107N - Industrial RS485 to RS232 Converter
Product Images
ATC 107N - Industrial RS485 to RS232 Converter
$62.44
SKU: GC-ATC-107N
MPN: ATC-107N
Manufacturer: ATC
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The ATC-107N is an Industrial RS485 to RS232 or RS422 to RS232 converter with both photoelectric isolation and 1000W lightning and surge protection. This converter provides connection for point to point or point to multi-point communication.
The RS232 connection is an RJ45 serial port. A RJ45 to DB9 Female cable is supplied to make the RS232 port a DB9 Female. The other side of the converter has both a DB9 Male RS422 connector and a 6 position terminal block for RS485/422 connections.
The power for the ATC-107N has 2 parts: an RS485/R422 side and an RS232 side.. A 9V power supply is provided for the RS485/422 side. The RS232 side is powered by the RS232 signal levels of the attached device and must not be lower than +5V. Otherwise, consider using the ATC-108N.
Possible applications:
- Industrial distribution systems
- Industrial control automation
- Road traffic control automation
- Closed circuit monitoring
- Security protection systems
- Intelligent cards
- Gate safety/control systems
Documents and Drivers
Documentation
ATC-107N User Manual
Specifications
Connector(s)
- RS232: RJ45 connector DB9 Female
- RS422: DB9 Male or 6 position terminal block
Dimensions
95 x 85 x 26 mm
Enclosure
Industrial Metal Enclosure
Humidity
5% to 95%
Indicators LED
TXD, RXD, Power
Isolation
3500V RMS, 500VDC
Mounting
Wall Mount
MPN
ATC-107N
Power Supply
9VDC external power supply included
Security/Protection
- Lightning strike/surge protection
- -RS485, RS485:1000W
- -RS232: 600W
- ESD
Serial Types
RS232, RS422, RS485
Temperature Range
-25°C to +70°C (-13ºF to 158ºF)
Transmission Distance
0-5 kilometers (115200-600BPS)
Transmission Mode
Asynchronous half or full duplex
Transmission Speed
Up to 115.2K BPS to 1.2KM
