ATC-108N Industrial Isolated 232 to 485 Adapter
232 to 485 Adapter - ATC 108N

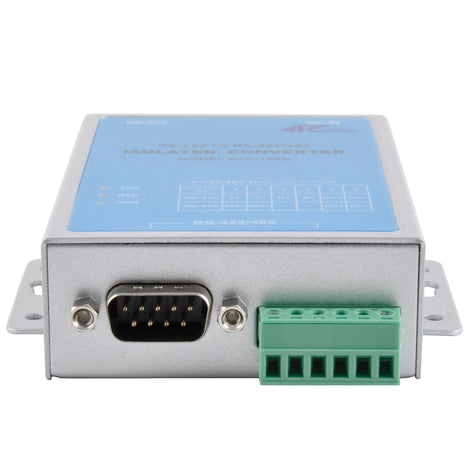

232 to 485 Adapter Front

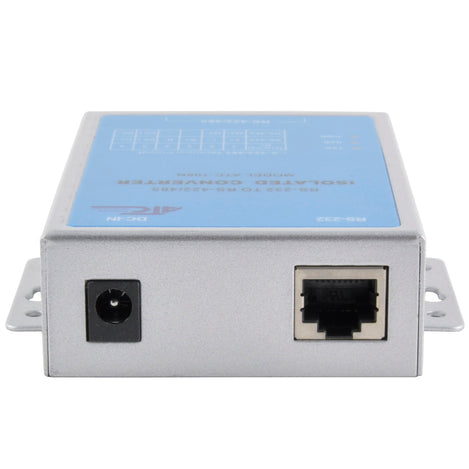

232 to 485 Adapter Back

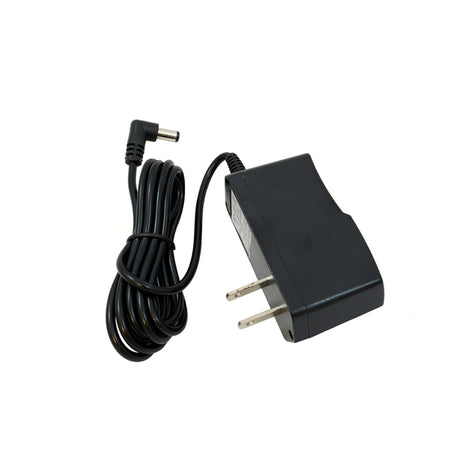

ATC-108N Power Supply Image

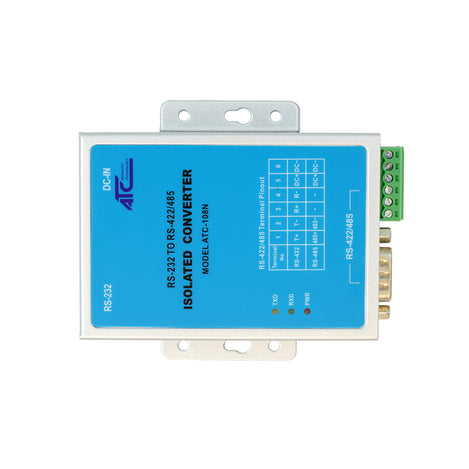

ATC-108N Adapter Top View Image
ATC-108N Package Contents Image

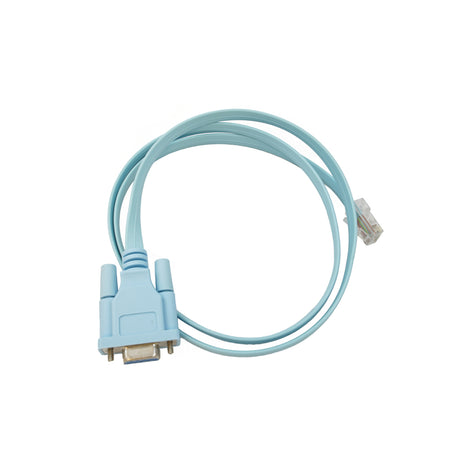

ATC-108N Power Supply Image
ATC-108N Industrial Isolated 232 to 485 Adapter
Product Images
ATC-108N Industrial Isolated 232 to 485 Adapter
$99.94
5.0 stars 5.0 (1) See customer reviews
SKU: GC-ATC-108N
MPN: ATC-108N
Manufacturer: ATC
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The ATC-108N is an Industrial 232 to 485 adapter with 422 support and both photoelectric isolation and 1000W lightning and surge protection. The RS232 connector is an RJ45 DB9 female. The RS422/485 side has 2 connectors, a 6 position terminal block and a DB9 male.
For power, a 9VDC wall power supply is included. The ATC-108N can also be powered from other DC power or device.
Example Applications
- Industrial distribution systems
- Industrial control automation
- Road traffic control automation
- Closed circuit monitoring
- Security protection systems
- Intelligent cards
- Gate safety/control systems
Documents and Drivers
Documentation
ATC-108N User's Manual
Specifications
Connector(s)
- RS232: RJ45 connector DB9 Female
- RS422: 6 position terminal block or DB9 Male
Dimensions
95 x 85 x 26 mm
Enclosure
Industrial Metal Enclosure
Humidity
5% to 95%
Indicators LED
TXD, RXD, Power
Isolation
3500V RMS, 500VDC
Mounting
Wall Mount
MPN
ATC-108N
Power Supply
9VDC external power supply included
Security/Protection
- Lightning strike/surge protection
- RS485, RS485:1000W
- RS232: 600W
- ESD
Serial Types
RS232, RS422, RS485
Temperature Range
-25°C to +70°C (-13ºF to 158ºF)
Transmission DIstance
0-5 kilometers (115200-600BPS)
Transmission Mode
Asynchronous half or full duplex
Transmission Speed
Up to 115.2K BPS to 1.2KM
