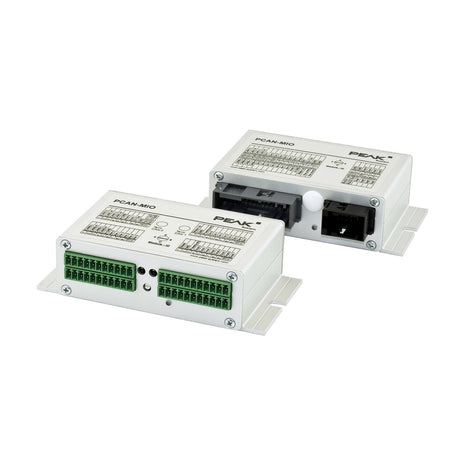

PCAN-MIO Universal Modular Controller: Phoenix terminal (Industrial) - Add PCAN-USB adapter

$874.00

Leave a review

SKU: GC-CAN-MIO-I-SET

MPN: IPEH-002187-SET

Manufacturer: Peak System Technik

Delivery: Estimated ship date Jun 24
Qualifies for Free shipping to the continental US

Connector Type

Add adapter

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The PCAN-MIO is a universal, modular controller for use in both automotive and industrial industries. This multiple input output module (MIO) transfers analog and/or digital signals to the CAN interface or an output channel.

To accomplish this configuration, the PCAN-MIO module can be setup using comprehensive Windows® software. A large number of function blocks and other settings are available to help in creating such a configuration.

Order Summary

SKU

Connector Type

Add Adapter

Manufacturer Part # (MPN)
GC-CAN-MIO-A Tyco (Automotive) No adapter added IPEH-002187-A
GC-CAN-MIO-A-SET Tyco (Automotive) Add PCAN-USB IPEH-002187-A-SET
GC-CAN-MIO-I Phoenix terminal (Industrial) No adapter added IPEH-002187
GC-CAN-MIO-I-SET Phoenix terminal (Industrial) Add PCAN-USB IPEH-002187-SET

Features

  • 2 High-speed CAN channels
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN termination switchable
  • Aluminum casing with flange
  • Individual function blocks for data linkage and data modification
  • Detailed configuration with the software PPCAN-Editor 2 for Windows®
  • Module can store up to 15 configurations
  • CAN gateway between busses

Documents and Drivers

Documentation

PCAN-MIO User Manual

PPCAN-Editor configuration tutorial for PCAN-MIO

PPCAN-Editor Function Block Reference Guide

Downloads

PPCAN-Editor configuration tutorial Example Files for PCAN-MIO

PPCAN-Editor 2
Windows® configuration software for PCAN-MIO and PCAN-Router Pro

PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters

Specifications

Certifications

EMV, RoHS 2

Connector(s)

  • Automotive: Tyco 12-pin & 32-pin
  • Industrial: Spring terminal block 11-pin

Dimensions

130 x 65 x 35 mm (without connectors)

Humidity

15 - 90 %, not condensing

IO Type

  • Analog inputs: 6
  • Digital inputs: 8
  • Analog outputs: 2
  • Digital outputs: 8, 2 of them PWM-capable

MPN

IPEH-002187, IPEH-002187 Set, IPEH-002187-A, IPEH-002187-ASet

Power Supply

9 - 27 V DC

Product Weight

max. 280 g

Security/Protection

IP20

Temperature Range

  • Operating: -40°C to +85°C (-40°F to +185°F)
  • Storage: -40°C to +100°C (-40°F to +212°F)
