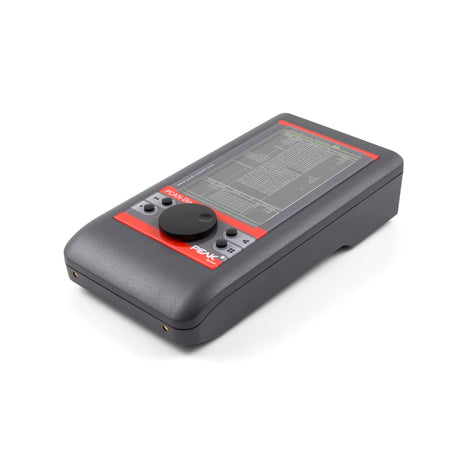

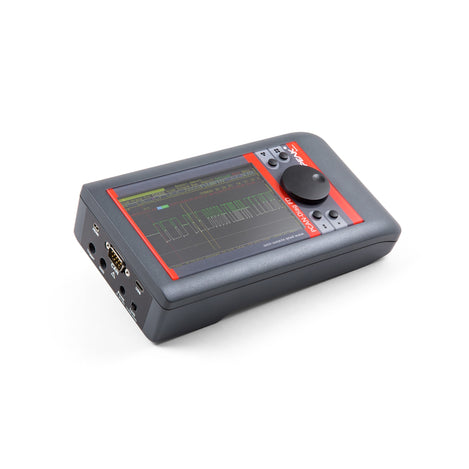

PCAN Diag FD - Handheld Diagnostic Tool for CAN FD Networks
PCAN Diag FD - Handheld Diagnostic Tool for CAN FD Networks
Product Images
PCAN Diag FD - Handheld Diagnostic Tool for CAN FD Networks
$1,619.00
SKU: GC-CAN-DIAG-FD
MPN: IPEH-003069
Manufacturer: Peak System Technik
Stock Status: In stock
Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
We Have You Covered
Skip To Footer
Product Information
Product Description
The PCAN Diag FD is a powerful handheld diagnostic tool for CAN Bus networks. The tool provides a higher bandwidth for data transfers using the Flexible Data (FD) rate, allowing for a transfer rate of 64 data bytes per CAN FD frame with bit rates up to 12 Mbit/s. The Diag FD is downward compatible with the CAN 2.0 A/B standards and can be used with existing CAN networks.

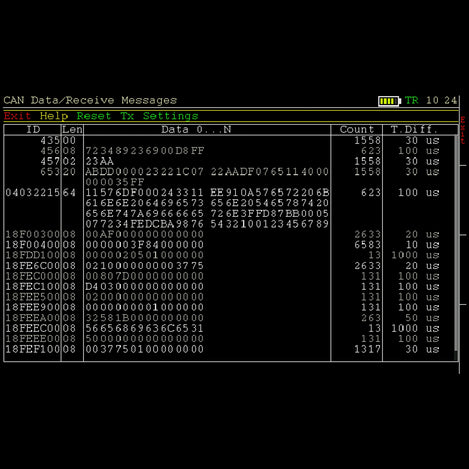

This diagnostic tool receives all messages and can transmit individual messages or sequences while also detecting the CAN bus baud rate, bus load, and network termination.
With the built-in 2 channel oscilloscope displays, the CAN signals can be setup to trigger on start or end frames. The CAN frames are decoded based on analog curve and can detect errors in the frame.
The CAN Diag FD can be powered externally with the supplied cable or internally with recharging batteries.
Package Contents :
- PCAN Diag FD
- USB connector cable
- HDMI/micro HDMI connection cable
- Power supply unit (with changeable plugs for Euro, US, and UK)
- Configuration software PCAN Diag FD Editor for Windows®
- PCAN-Symbol Editor for Windows®
- Conversion software PEAK-Converter for Windows®
- Quick start guide (Printed)
- User manual (PDF format)
- Delivered in shockproof plastic box
Features
General Overview:
- Portrait or landscape display depending on function and device orientation
- External display using micro HDMI interface
- Batteries can be recharged during operation
- Device operates via push dial with 4 buttons
- Internal memory card can also be used as USB mass storage when connected to a PC
Functions Overview:
- Switchable listen-only mode
- Save messages to internal memory card
- Use of decimal, hexadecimal, or binary
- Save bus load time diagrams
- Switchable CAN termination
- Incoming messages displayed with symbols, taking into account enums, multiplexers, and ID ranges

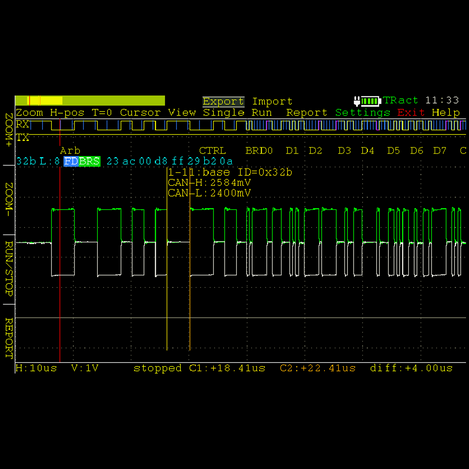

Oscilloscope Function Overview:
- 2 channels with a maximum sample rate of 100 MHz
- Display of CAN-High and CAN-Low signals and differences
- Trigger configurations to various properties of messages
- External measurement devices can be triggered with the banana jack, 4mm
- Display of raw CAN and CAN FD frames
- Decode CAN and CAN FD frames from recorded signal trace
- Save data as CSV files
- Extensive zoom functions
- Time measurement with a resolution of up to 10 ns
- Report function displays various properties and measuring data from CAN frame
Documents and Drivers
Documentation
PCAN Diag FD User Manual
PCAN Diag FD Quick Start Guide
Downloads
PCAN Diag FD Package
CAN Download Support
View the available Peak System downloads:
Specifications
Certifications
CE
Dimensions
110mm x 47mm x 206mm
Display
TFT 800 x 480 pixel
Highspeed CAN
ISO 11898-2 (MCP2558FD)
Interface(s)
Internal Memory Card for saving projects. Also can be used as a USB mass storage device when connected to a PC
Memory
Internal memory card, up to 1 Megasamples
MPN
IPEH-003069
Pins

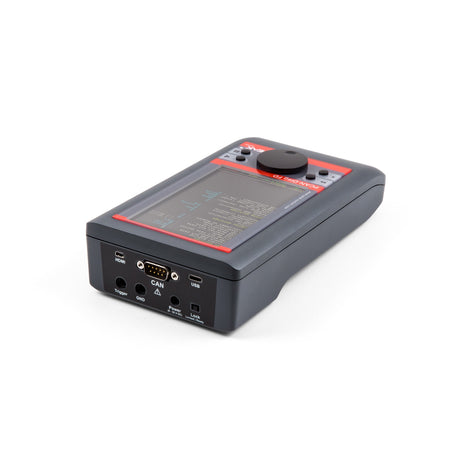

D-Sub : 9 pins
Power Supply
Internal rechargeable batteries or provided supply unit
Product Weight
2 lbs
Radio Channels/Bandwidth
64 data bytes per CAN FD frame
Security/Protection
IP20
Software
PCAN Diag Editor Software & PCAN Symbol Editor Software
Temperature Range
- Operating (with external power supply): 0°C to +40°C (32°F to +104°F)
- Operating (with internal batteries): 0°C to +50°C (32°F to +122°F)
- Storage: -20°C to +50°C (-4°F to +122°F)
