PCAN Diag 2 - Handheld Diagnostic Tool
PCAN Diag 2 - Handheld Diagnostic Tool Angle
PCAN Diag 2 - Handheld Diagnostic Tool Angle 2
PCAN Diag 2 - Handheld Diagnostic Tool Screen Shot
PCAN Diag 2 - Handheld Diagnostic Tool
Product Images
PCAN Diag 2 - Handheld Diagnostic Tool
$985.00
Regular price: $995.00
SKU: GC-CAN-DIAG2
MPN: IPEH-002069-V2
Manufacturer: Peak System Technik
Stock Status: In stock
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
We Have You Covered
Product Information
Product Description

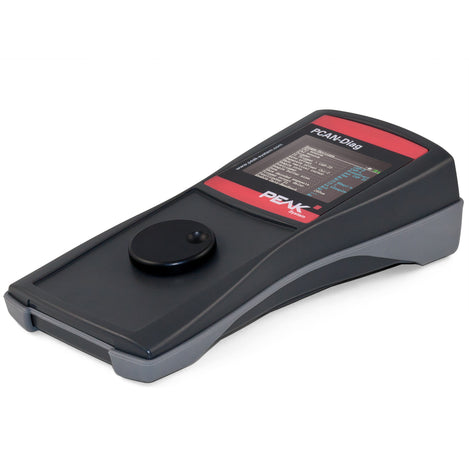

The PCAN DIAG 2 (Peak PCAN Diag 2 IPEH-002069-V2) is a powerful CAN Bus Diagnostic handheld tool with integrated 2 channel oscilloscope and complete set of CAN messages, diagnostic information. The CAN Diag can be powered using batteries or wall plug.
The Diag 2 handheld automatically detects the CAN bus baud rate, bus load, and network termination. The Diag 2 receives all messages and can transmit individual messages or sequences.

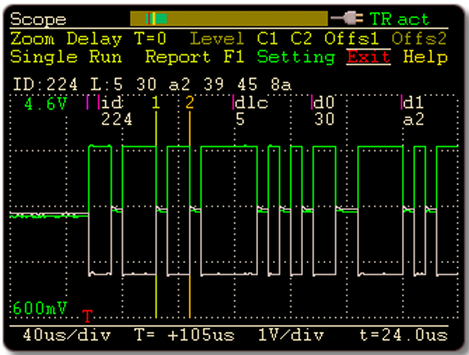

The built-in 2 channel oscilloscope displays the CAN signals and can be setup to trigger on start or end frames. The CAN frames are decoded based on analog curve and can detect errors in the frame. The LCD display is in color and has excellent readability.
Features
- Transmitting individual CAN frames or CAN frame lists

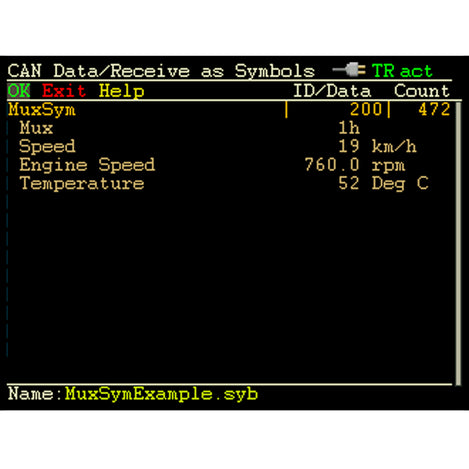

- Symbolic representation of received message by CAN definition files
- Setup of CAN definition files using Windows configuration software, transfer of data via CAN
- Measurement of CAN bus load
- Meaurement of CAN termination
- Switchable CAN termination for connected bus
- Measurement of voltage level of all pins for CAN
- 2 channel Oscilloscope / 20MHz per channel
- Decoding of CAN frames
- Depiction of raw CAN frames
- Extensive Zoom functions
- Shockproof plastic enclosure
- Editor/Configuration Windows Software
- Internal Memory card for storage of data, configuration, help files, symbol files and projects.
- USB file device when connected to a PC
- PCAN Diag Editor Software included
- PCAN Symbol Editor Software included
Documents and Drivers
Documentation
PCAN DIAG 2 User Manual
PCAN-Diag2 Quick Start Guide
Downloads
CAN Download Support
View the available Peak System downloads:
Specifications
Connector(s)
CAN connection via DB9 connector
Display
OLED display with 320 x 240 pixels
Included in Box
Plastic case for carrying
Interface(s)
Internal Memory Card for saving projects. Also can be used as a USB mass storage device when connected to a PC
MPN
IPEH-002069-V2
Power Supply
4, 1.5V AA batteries or included AC wall supply (8-50VDC)
Protocols
High speed CAN ISO 11898-2, CA transceiver module on request for low speed CAN ISO 11898-3 or Single wire CAN SAE J2411
Software
PCAN Diag Editor Software & PCAN Symbol Editor Software included
Temperature Range
Operating: 0°C to +50°C (32°F to +122°F)
