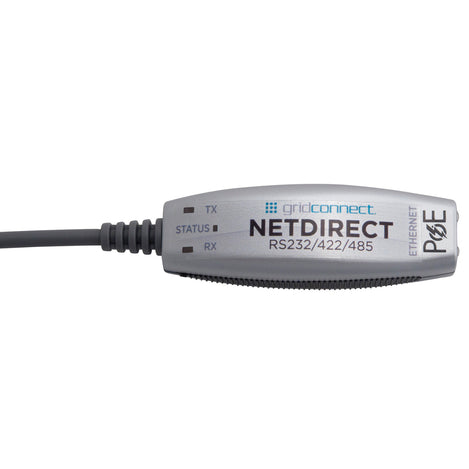

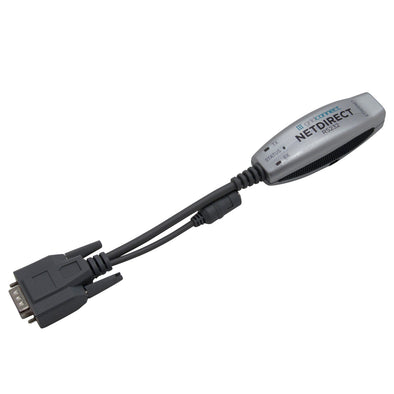

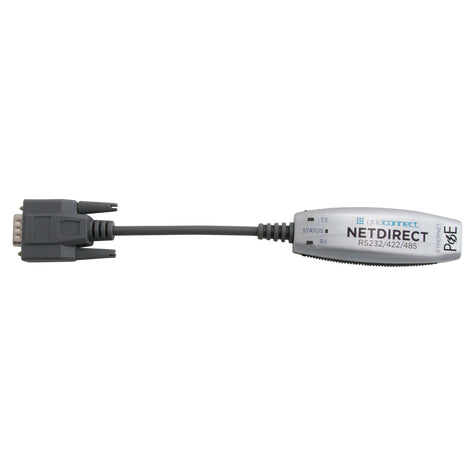

NetDirect - Serial to Power Over Ethernet (PoE) Cable: DTE (male)

The NETDirect Serial to Power over Ethernet (PoE) Adapter is a compact, self-powered serial-to-network solution that enables RS232, RS422, and RS485 devices to communicate over Power over Ethernet (PoE) networks. Designed for industrial automation, remote monitoring, and networking applications, this PoE-powered serial device server eliminates cable length restrictions and enables secure, remote access to serial devices over LAN or the Internet without requiring an external power supply.

Key Features & Benefits

• PoE-Powered Serial-to-Ethernet Conversion – Converts RS232, RS422, and RS485 signals into a network-ready Ethernet PoE connection, eliminating the need for an external power supply.

• Seamless Plug-and-Play Installation – Simple software setup with virtual COM port support, allowing easy PC-to-networked serial device communication.

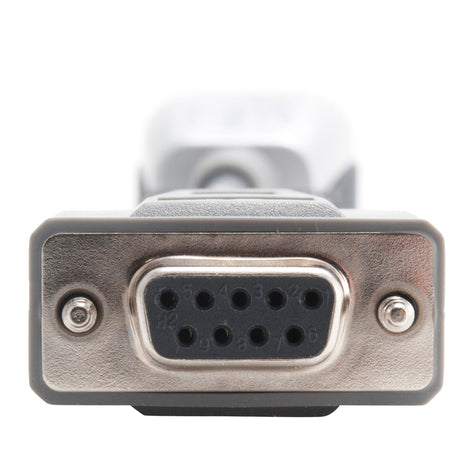

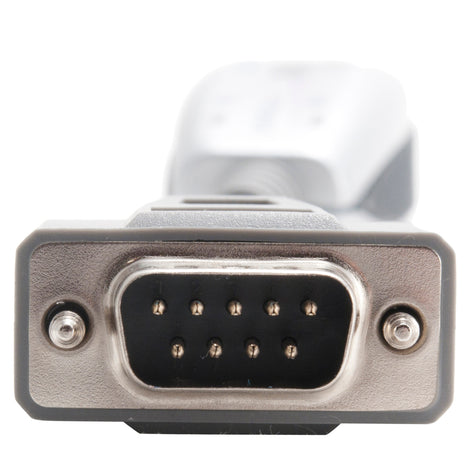

• Flexible Serial Configurations – Supports DTE (male) or DCE (female) serial connections, with options for RS232-only or RS232/422/485 models.

• Industrial-Grade Performance – Designed for harsh conditions, with an operating temperature range of -40°C to +70°C, 1500V Ethernet isolation, and 15KV ESD protection.

• Global Compliance & Certifications – UL, CE, RoHS, IEC, CSA, CAN, and FCC-approved, making it suitable for worldwide industrial and commercial applications.

Quick & Easy Setup

Setting up the NETDirect Serial to PoE Network Converter takes just minutes:

1. Connect the NETDirect adapter to your RS232, RS422, or RS485 device.

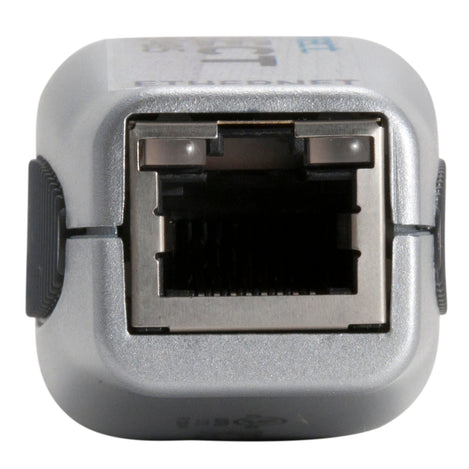

2. Attach the adapter to your Ethernet network via RJ45 connection.

3. Power the device via PoE, eliminating the need for external power sources.

4. Use the included software and virtual COM port redirector to map your serial device to an Ethernet IP address.

5. Start communicating between your PC and serial device over LAN or the Internet.

Why Choose NETDirect?

• True PoE Functionality – Unlike standard serial-to-Ethernet adapters, NETDirect eliminates the need for an external power supply, making installation easier and reducing clutter.

• All-in-One Solution – Combines a PoE serial-to-Ethernet converter, virtual COM software, and flexible power options in a single, compact cable.

• Universal Compatibility – Works with any RS232, RS422, or RS485 serial device, including industrial controllers, POS systems, and remote sensors.

• Secure & Reliable – Supports high-speed communication with baud rates up to 921.6Kbps and 1500V Ethernet isolation for protection.

• Global Compliance – Certified for UL, CE, RoHS, IEC, CSA, CAN, and FCC, ensuring worldwide regulatory approval.

Compatible with Any RS232, RS422, or RS485 Device

The NETDirect Serial to PoE Network Converter is ideal for:

• Industrial Automation – Connect PLCs, machine controllers, and manufacturing equipment to PoE-powered Ethernet networks.

• Retail & POS Systems – Enable remote monitoring of barcode scanners, receipt printers, and point-of-sale terminals over a secure PoE network.

• SCADA & Remote Monitoring – Extend RS485 sensors, energy meters, and HVAC controllers over the Internet without additional power wiring.

• Networking & IT – Convert serial-based networking equipment and legacy IT hardware to IP-based management systems using PoE.

Who Needs NETDirect?

• Industrial Automation Engineers – Integrate serial control systems into PoE Ethernet networks.

• Retail IT Administrators – Maintain seamless communication between POS terminals and networked servers without extra power wiring.

• Facilities & Building Automation Managers – Enable remote access to environmental monitoring and HVAC systems using PoE.

• Network Technicians & IT Professionals – Upgrade legacy serial-based networking devices to PoE-capable systems.

Power over Ethernet (PoE) – No External Power Required

The NETDirect Embedded PoE Serial Device Server is designed for maximum flexibility, eliminating the need for traditional power sources:

• PoE-Powered – Draws power directly from the Ethernet cable, reducing clutter and simplifying installation.

• No Wall Adapters Needed – Unlike traditional serial-to-Ethernet adapters, NETDirect runs entirely on PoE, making it ideal for remote installations.

• Cost-Effective Power Solution – Saves on cabling costs by powering and networking devices through a single Ethernet cable.

Customization Available

Grid Connect offers custom engineering services to customize the NetDirect to your exact requirements.

NDAA Compliant

This product is fully NDAA compliant, making it a trusted choice for use in government, military, and other security-sensitive applications. Its compliance ensures it meets U.S. regulations for secure and reliable industrial connectivity solutions.
