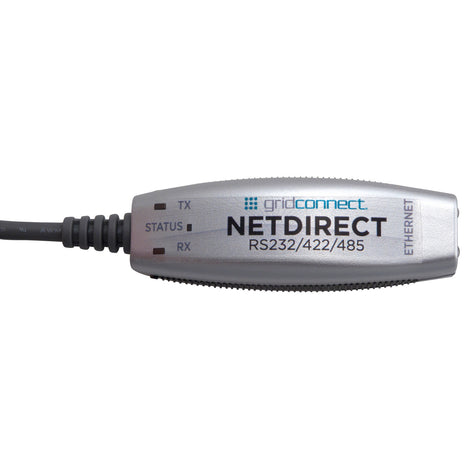

NetDirect RS232 RS485 RS422

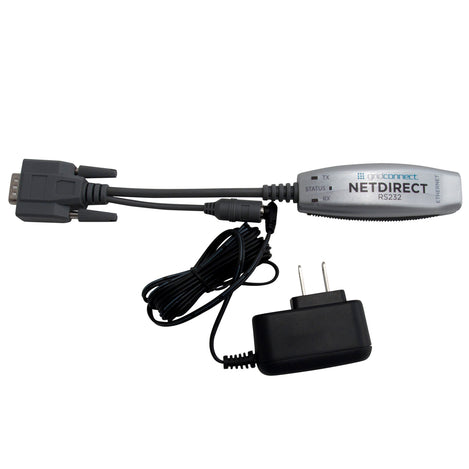

NetDirect With Power Supply

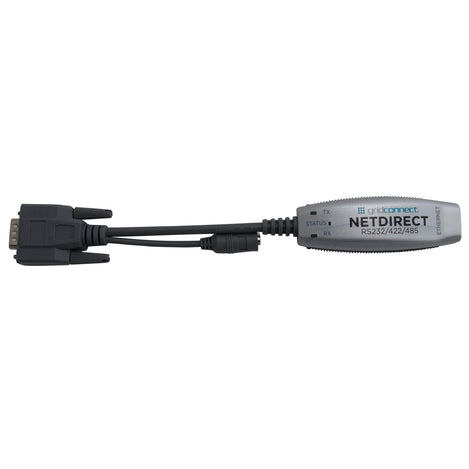

NetDirect Grid Connect

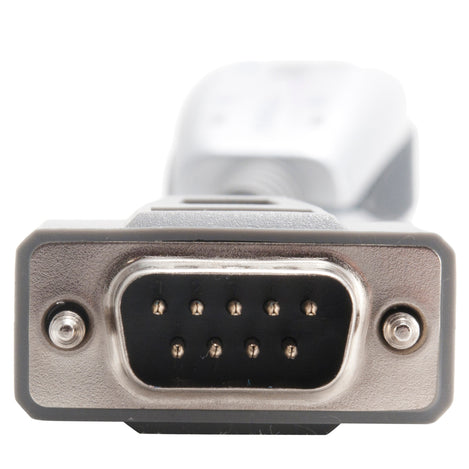

NetDirect RS232 DTE

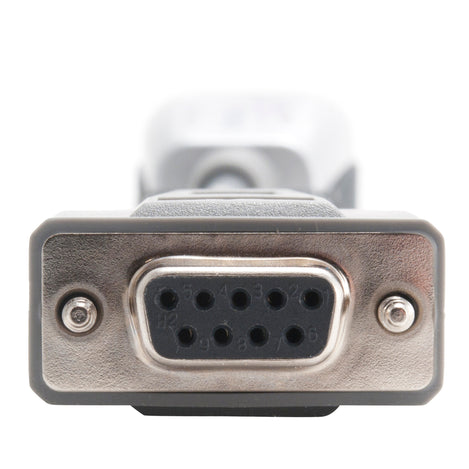

NetDirect RS232 DCE

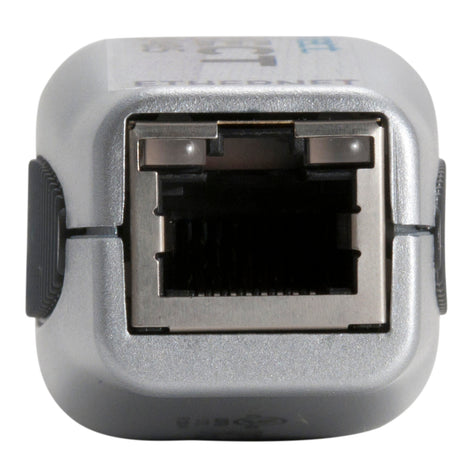

NetDirect Ethernet Port
NetDirect - Serial to Ethernet Cable
Product Images
NetDirect - Serial to Ethernet Cable: RS232 - Universal - DTE (male)
$117.95
5.0 stars 5.0 (1) See customer reviews
SKU: GC-ND-232-DTE-U
MPN: GC-ND-232-DTE-U
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Delivery: Ships within 1-2 business days
Qualifies for Free shipping to the continental US
Serial Type
-
$117.95
-
$121.95
Power Supply
-
$97.95
-
$97.95
-
$91.95
-
$117.95
Connector
-
$117.95
-
$117.95
We Have You Covered
Skip To Footer
Product Information
Product Description
NetDirect is a simple to use Serial to Ethernet Cable allowing for plug and play conversion of RS232, RS422, or RS485 signals over an ethernet network.
The NetDirect Device Service is a small compact cable that allows you to simply convert your RS232 or RS422 or RS485 device to an Ethernet port. This conversion allows you to put you devices on a network and have access to them over a wide range via the Internet or local Ethernet network. The NetDirect can be purchased in several different configurations. First the serial port side can be either RS232 only or RS232/422/485. Second the NetDirect can be powered using a wall supply, through the DB9 connector on Pin 9, or the USB port.
As a Serial Device Server, the NetDirect converts your standard RS232, RS422, or RS485 serial port to an Ethernet Port. The baud rates supported by the NetDirect are from 300 to 921.6K baud and the various data formats, 7 or 8 data bits, 1 or 2 stop bits, parity of none, even, odd, mark, hardware flow control using RTS/CTS signals or software control using XON/XOFF and modem controls signals DTR/DSR/DCD.
The NetDirect has supports either DTE (male pins) or DCE (female no pins) on the serial side of the cable. The power for the NetDirect can be supplied from the cable power plug, from pin 9 of the DB9 connector or through the USB port. The NetDirect has an Ethernet isolation value of 1500 volts and an ESD protection on the serial port of 15KV.
The NetDirect is industrially tough and is designed for operating temperature of -40C to +85C, it has also be approved for worldwide use by UL, CE, RoHS, IEC, CSA , CAN and FCC.
The NetDirect uses a simple install program and a virtual COM port redirector to map your PC serial port to Ethernet IP addresses.
NetDirect models include:
- RS232 only version DCE or DTE with or without 110VAC or 220VAC wall power supply
- RS232/422/485 version DCE or DTE with or without 110VAC or 220VAC wall power supply
Order Summary
SKU |
Serial Type |
Power Supply |
Connector |
Manufacturer Part # (MPN) |
|---|---|---|---|---|
| GC-ND-232-DCE-110 | RS232 | 110V - U.S./North America | DCE (female) | GC-ND-232-DCE-110 |
| GC-ND-232-DCE-220 | RS232 | 220V - Europe | DCE (female) | GC-ND-232-DCE-220 |
| GC-ND-232-DCE-NOPS | RS232 | No Power Supply | DCE (female) | GC-ND-232-DCE-NOPS |
| GC-ND-232-DTE-110 | RS232 | 110V - U.S./North America | DTE (male) | GC-ND-232-DTE-110 |
| GC-ND-232-DTE-220 | RS232 | 220V - Europe | DTE (male) | GC-ND-232-DTE-220 |
| GC-ND-232-DTE-NOPS | RS232 | No Power Supply | DTE (male) | GC-ND-232-DTE-NOPS |
| GC-ND-485-DCE-110 | RS232/RS422/RS485 | 110V - U.S./North America | DCE (female) | GC-ND-485-DCE-110 |
| GC-ND-485-DCE-220 | RS232/RS422/RS485 | 220V - Europe | DCE (female) | GC-ND-485-DCE-220 |
| GC-ND-485-DCE-NOPS | RS232/RS422/RS485 | No Power Supply | DCE (female) | GC-ND-485-DCE-NOPS |
| GC-ND-485-DTE-110 | RS232/RS422/RS485 | 110V - U.S./North America | DTE (male) | GC-ND-485-DTE-110 |
| GC-ND-485-DTE-220 | RS232/RS422/RS485 | 220V - Europe | DTE (male) | GC-ND-485-DTE-220 |
| GC-ND-485-DTE-NOPS | RS232/RS422/RS485 | No Power Supply | DTE (male) | GC-ND-485-DTE-NOPS |
| GC-ND-232-DCE-U | RS232 | Universal | DCE (female) | GC-ND-232-DCE-U |
| GC-ND-232-DTE-U | RS232 | Universal | DTE (male) | GC-ND-232-DTE-U |
| GC-ND-485-DCE-U | RS232/RS422/RS485 | Universal | DCE (female) | GC-ND-485-DCE-U |
| GC-ND-485-DTE-U | RS232/RS422/RS485 | Universal | DTE (male) | GC-ND-485-DTE-U |
Features
- RS232 Only or RS232 / RS422 / RS485 Version
- DB9 DCE (female) and DB9 DTE (male) Versions
- Included AC Power adapter, 500mA @ 9VDC
- Serial baud rates up to 921.6K
- 128.192/256 bit AES Encryption
- Plastic housing
- 10/100M Ethernet Connection
- OEM versions available for small minimum quantity
- Includes CD with Manuals, PC Setup and Virtual COM Port Redirector Software
- Supports Windows 7/Vista/XP/Server (32/64 bit)
- 5 Year Limited Warranty
Documents and Drivers
Documentation
NetDirect Datasheet
RS485 Converter Comparison Chart
NetDirect User Manual
Downloads
Latest DeviceInstaller
Latest Com Port Redirector
Specifications
Certifications
- UL
- CSA/CAN
- CE
- FCC Part 15 Subpart B, Class B
- IEC
- VCCI
- C-Tick
Characters T
7 or 8 data bits
Connector(s)
- Serial Connector: DB9 - DCE (female) or DB9 - DTE (male) and custom cables/connectors (call) also available.
- Network Connector: RJ45
Data Rate
up to 921,600 bps
Dimensions
- Plastic Body: 86.6x30x29mm
- With Cable: 242x33x29mm
Flow Control
XON/XOFF, RTS/CTS
Humidity
0 to 90% non-condensing
Indicators LED
- TX
- RX
- Status
Interface(s)
Network: Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
Isolation
- Ethernet: 1500VAC
- Serial: 15KV ESD protection
Management
SNMP, Telnet, serial, internal web server, and Microsoft Windows-based utility configuration
Modem Control
DTR, DSR/DCD
Power
- DB9 Pin 9 input voltage 5-15VDC
- Power supply voltage 9VDC
- USB input voltage 5VDC
Power Consumption
1.3 watt
Protocols
TCP/IP, UDP/IP, ARP, IMCP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP
Security/Protection
128/192/256 bit AES Encryption
Serial Interfaces
374,373,369
Serial Types
372,370,371
Software
Windows-based Installer and Virtual Comm Port Redirector, Support for Windows 7/Vista/XP/Server (32/64 bit)
Stop Bits
1 or 2
Temperature Range
-40 to +85°C (-40 to + 185°F)
