NET232+CC Serial to Ethernet Adapter, Cisco® RJ45 Console Port
NET232+CC Serial Ethernet Adapter Image

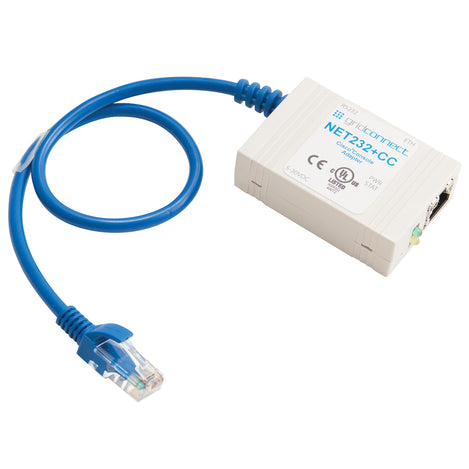

NET232+CC with Cisco RJ45 Console Port Image

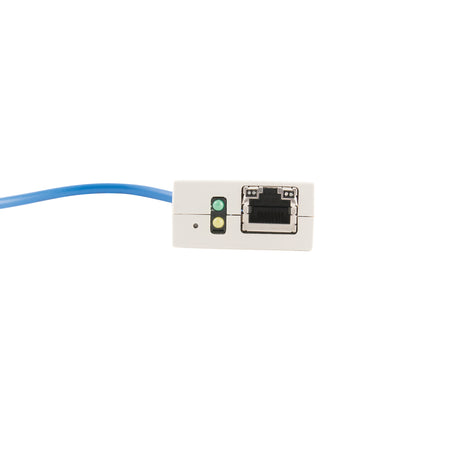

NET232+CC RJ45 Port Image

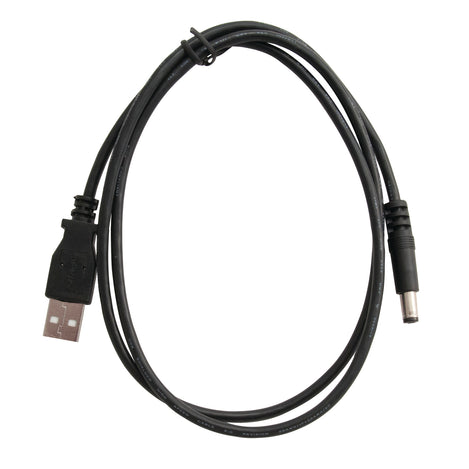

NET232+CC USB to Barrel Jack Cable Image
NET232+CC Serial to Ethernet Adapter, Cisco® RJ45 Console Port
Product Images

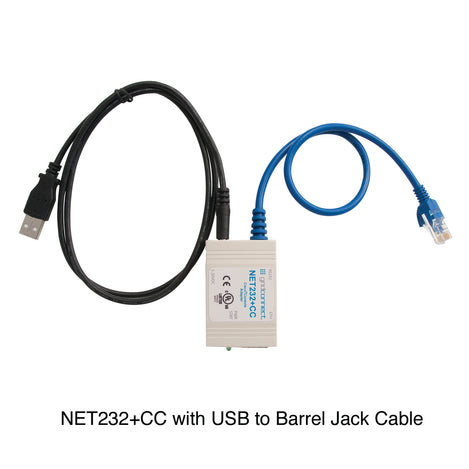

NET232+CC Serial to Ethernet Adapter, Cisco® RJ45 Console Port: USB to Barrel Jack
$99.95
5.0 stars 5.0 (2) See customer reviews
SKU: GC-NET232-PLUS-CC-USB
MPN: GC-NET232-PLUS-CC-USB
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Delivery: Ships within 1-2 business days
Free shipping to the US on orders over $100
Power Supply
-
$99.95
-
$99.95
-
$99.95
We Have You Covered
Skip To Footer
Product Information
Product Description
The NET232+CC is a fully featured serial to Ethernet device server, especially designed for use with equipment following the Cisco® RJ45 console port pinout. The NET232+CC provides remote access over Ethernet TCP/IP to routers, switches, servers, and other equipment that have a serial RJ45 console port or management port. Any Cisco equipment that uses the Cisco 72-3383-01 (DB-9 to RJ45) Console Cable can use the NET232+CC.
Examples of Cisco products that use this type of console port.
- Catalyst® 2350 Series switches
- Catalyst 6500 Series switche
- Cisco ASA 5500-X Series firewalls.
Example of other manufacturers using this same RJ45 pinout
- IBM® Power 710 server
- Power 730 server
- Power 8 Servers
At no additional charge, the NET232+CC supports
- multiple TCP connections (up to 4 TCP or a mixture of TCP and UDP)
- DNS
- email serial triggers
- mail authentication
- 256-bit AES encryption
- serial data rates up to 921K
- auto-sensing 10/100Mbps Ethernet
The NET232+CC features an industrial grade temperature range, detailed LED status indicators, and a factory reset button (accessible through a pin-hole with a paperclip)
Configuration is simple using the provided installation software and web page. Just connect the adapter to an RS232 based RJ45 Serial port and to the local Ethernet network and then run the free software to find and set up the NET232+CC. Typical use is to connect the console/management/system port over the network to a TTY console terminal program such as Hyperterminal. “Virtual” COM ports can also be created on a PC using the included Comm Port Redirector software.
The NET232+CC can be powered from a nearby USB Port by using the optional “USB to Barrel Jack” cable. This cable simply takes the 5VDC power from the USB Port to power the NET232+CC. Power can also be optionally provided by a wall supply (US 110V or Euro 220V).
T
Order Summary
SKU |
Power Supply |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-NET232-PLUS-CC-110 | 110V - U.S./North America | GC-NET232-PLUS-CC-110 |
| GC-NET232-PLUS-CC-220 | 220V - Europe (Except U.K.) | GC-NET232-PLUS-CC-220 |
| GC-NET232-PLUS-CC-USB | USB to Barrel Jack Cable | GC-NET232-PLUS-CC-USB |
Features
- Advanced RS232 Serial RJ45 to Ethernet (RJ45) Device Server
- 10BASE-T and 100BASE-TX Ethernet (auto-sensing)
- Serial baud rates up to 921K
- Simple Web Page Configuration
- Supports Multiple TCP Connections (up to 4) or a Mixture of TCP and UDP
- Secure 256-bit AES Encryption and Email Authentication with User Name and Password
- Email Serial Triggers (Supporting up to 6-byte Match Sequence or Embedded Modem Dial Commands)
- Push Button Factory Default Reset
- Industrial Temperature Range -40ºC to +85ºC
- Powered by USB to Barrel Jack Cable or Wall Adapter
- Compact Size (63.5 x 42.7 x 20.2 mm)
- RS232 Serial Cable 15 inch with RJ45 Male Plug
- UL, CE, RoHS Compliant
Documents and Drivers
Documentation
NET232+ Datasheet
NET232+CC User Manual
Device Installer User Guide
Redirector Quick Start Guide
NET232+ REACH Certification
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Certifications
UL, CE, RoHS Compliant
Characters T
7 or 8 data bits
Connector(s)
Network Connector: RJ45
Data Rate
- Serial: Up to 921K
- Ethernet: 10/100M
Dimensions
63.5 x 42.7 x 20.2 mm (excludes cable)
Firmware
Upgradeable via TFTP and Serial Port
Flow Control
XON/XOFF, RTS/CTS, none
Humidity
5% to 95% Non-Condensing
Indicators LED
Power, Status, Ethernet Link and Activity
Interface(s)
- Network: RJ45 Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
- Serial: RS232 RJ45
MPN
GC-NET232-PLUS-CC
Parity
odd, even, none
Power
Power Options:
- USB to Barrel Jack Cable (uses power from USB port) (option)
- 110V AC Adapter, 500 mA @ 9VDC (option)
- 220V AC Adapter, 500 mA @ 9VDC (option)
Product Weight
62.4 g (2.2 oz) - Approximate, Without Power Supply
Protocols
TCP/IP, UDP/IP, ARP, ICMP, SNMP, SMTP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP
Security/Protection
256-bit AES Encryption
Serial Interfaces
374,373
Serial Types
372
Serial Type Config
401
Software
MS Windows-based DeviceInstaller software device installer and MS Windows-based Comm Port Redirector
Stop Bits
1 or 2
Temperature Range
-40ºC to +85ºC (-40ºF to +185ºF)
