This product is discontinued and no longer available.

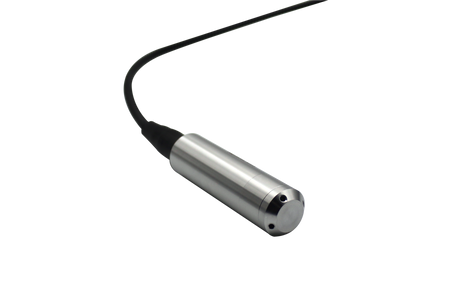

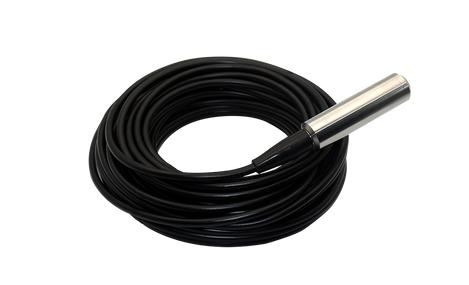

LoRa Wireless Tank Level Sensor
LoRa Wireless Tank Level Sensor
Product Images
LoRa Wireless Tank Level Sensor: 2 Meters
SKU: GC-AK-LBTDPS-2
MPN: LBTDPS-2
Manufacturer: AKCP Co Ltd.
We Have You Covered
Product Information
Product Description
The LoRa™ Tank Level Sensor is a long-range wireless sensor with LoRa radio technology. The device easily pairs with the L-DCIM gateway and allows you to monitor and track data over time. The system also provides real-time alerts on specified status changes.
For optimal placement the sensor comes with two (2) cable lengths and is designed for harsh environments with an IP54 rated enclosure. The advanced LoRa technology allows broadcasting in low-signal areas (up to 10 km in open space and 250 meters in buildings).
The sensor is powered by four (4) internal batteries or by an external micro-USB power source. With the micro-USB as the main power supply the internal batteries are designated for back-up support in the event of a power outage. The batteries are guaranteed with a 10-year life-span when broadcasting every 15 minutes.
Order Summary
Product Image |
SKU |
Cable Length |
Manufacturer Part # (MPN) |
|
|---|---|---|---|---|
 |
GC-AK-LBTDPS-2
|
2 Meters | LBTDPS-2 | |
|
GC-AK-LBTDPS-5 DISCONTINUED |
5 Meters | LBTDPS-5 |
Features
LoRa™ radio technology
- Increased signal penetration
- Maximixed signal distance
- "Listen before talk" to minimize packet collisions
- Frequent broadcasting
- Battery or USB Powered
- 10 year guaranteed battery life
- IP54 rated casing for all environments
- DIN rail, magnets, or wall mounting options
Documents and Drivers
Documentation
LoRa Tank Level Sensor
Specifications
Antennas
Di-Pole LoRa
Certifications
FCC Part15C, CE EN300220-2
Connector(s)
Micro-USB power supply
Dimensions
77 x 47 mm
Humidity
20% to 80% (non-condensing)
Indicators LED
Sensor Mode
Measurement Values
- Liquid’s height
- Liquid’s Volume
Mounting
DIN Rail, Wall Mount, Magnetic
MPN
LBTDPS-2, LBTDPS-5
Power Consumption
12 mWatt
Power Supply
Internal batteries or micro-USB port
Radio
LoRa™ Radio 902-915 MHz Max TX Power +20dBm
Temperature Range
-35ºC to 80ºC (-31ºF to 176ºF)
