IP Intercom Bundle – Gate to House/Truck-Scale: 220V Europe

$1,093.00

Leave a review

SKU: GC-IPIC-GTI-220

MPN: GC-IPIC-GTI-220

Manufacturer: Digital Acoustics LLC

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

Power Supply

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

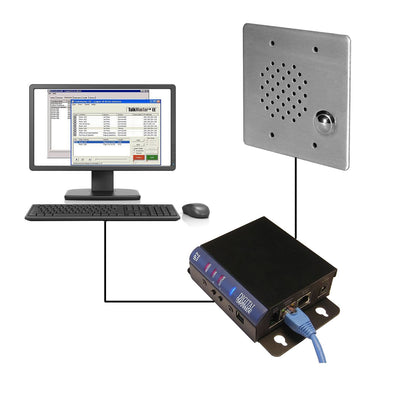

The IP Intercom Bundle for Gate to House or Truck-Scale is a complete bundle that provides all the necessary pieces to create an intercom connection between 2 locations.

The desktop intercom is designed for indoor environments such as a guard station or reception desk. The Intercom offers 2-way communications with a push-to-talk button and 8-Ohm speaker.

The included IP7-FX Intercom Module is an all-in-one multipurpose system that connects the intercom to the door station. The device offers an on-board relay and sensor for door/gate access controls, allowing for remote monitoring and control over secure entrances.

The kit also includes a door station with speaker and microphone for 2 way communications with the desktop intercom. The door station is a tamper resistant, 2.5-inch square frame speaker, with push-to-talk button and designed for outdoor use.


Kit Includes:



Product Image
Part
SKU
Manufacturer Part # (MPN)
Authorized North America Distributor Stamp 1 - White Desktop Intercom (with power supply) GC-IPIC-EDW IP7-EDW
Authorized North America Distributor Stamp 1 - IP7-FX Intercom and Paging Module GC-IPIC-IP7-FX IP7-FX
Authorized North America Distributor Stamp 1 - External Door Station GC-IPIC-DOOR-QM4 PNL-CIS-4/8

This bundle is ideal for truck scales, for communicating with the driver and the scale office. Set up is easy with the provided Windows PC Software.

Features

  • Local or Worldwide Ethernet or Internet Connection
  • External Door Station for Push-to-Talk and Speaker
  • On-Board Relay for Door/Gate Access control
  • Simple configuration using PC software
  • Simple installation using 10/100M Ethernet
  • High Quality Voice/Audio with Push-to-Talk button and speaker interface
  • Desk unit features Volume Up, Volume Down, and Monitor/Open buttons
  • Desk unit status LEDs (Active, Link, Monitor and Talk)

Documents and Drivers

Documentation

IP7 Desktop Intercom Datasheet

IP7-FX Intercom Module Datasheet

CIS4/8 External Intercom Door Station Datasheet

Specifications

Audio Connection

  • Line In: Nominal 1V p/p
  • Line Out: Pro Audio (2 Volts Peak to Peak)

Audio Latency

<200ms Auto-Adaptive

Connection Modes

  • TalkMaster™ Focus Endpoint
  • SIP 2.0 Endpoint
  • Hybrid TalkMaster™ Focus/SIP 2.0 Endpoint
  • Direct Mode
  • Singlewire Informacast

Connector(s)

Network: 2x RJ-45

Connector IO

3.81mm DIN Pluggable, RJ45, USB-B, RJ10

Core

ICC-512 50 MIPS System on a Chip

Fault Management

Advanced Fail-ForwardTM fault detection

Indicators LED

Desk Unit status: Active, Link, Monitor, Talk

Interface(s)

Network: 10/100M Ethernet

Microphone

Balanced, Pseudo-differential / AGC > 40dB

MPN

GC-IPIC-GTI

Network Interface

10/100 Base-T Ethernet, Auto-MDIX

POE Standard

802.3af (15.4W)

Programmable IO

Flash programmable via USB, Ethernet

Protocols

TCP, UDP, RTP, SIP, ICMP, IGMP Multicast

Speaker Out

8 Watts (PoE or 12VDC) 25 Watts (24VDC)
