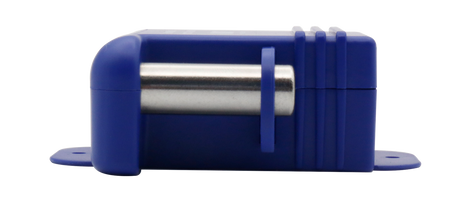

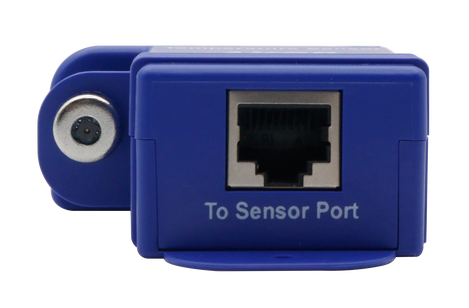

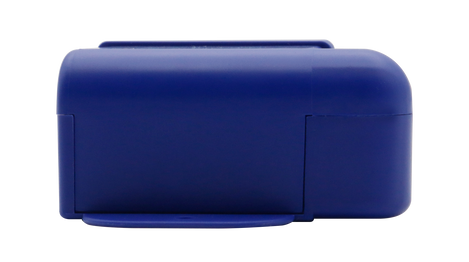

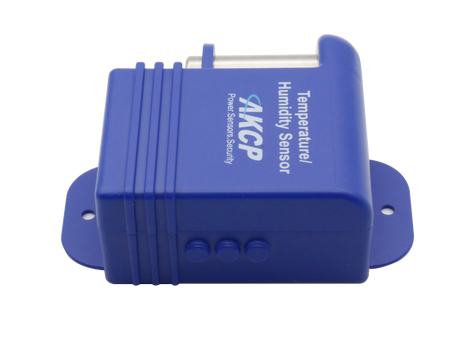

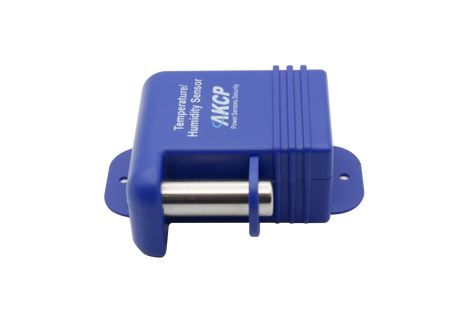

Humidity Data Logger - Temperature & Humidity Sensor for AKCP Controllers: Waterproof 15 ft cable

5.0 stars 5.0 (1) See customer reviews

SKU: GC-AK-THS-W15

MPN: THSW15

Manufacturer: AKCP Co Ltd.

Choose Type

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The Humidity Data Logger has both temperature and humidity measuring capabilities in a single sensor. This extends the capability of any sensorProbe or securityProbe by measuring temperature and humidity using only 1 RJ-45 jack.

When the sensor is plugged into the RJ-45 port, the sensorProbe will auto detect the sensor and will display temperature & humidity  for each port that contains a Humidity Data Logger.  A built in graph option is included on all sensorProbes for graphing temperature and humidity variations over a period of time.

Each sensor has its own SNMP OID so that data can be collected over the network and graphed using an external application like MRTG.

The temperature sensor can be read using included SNMP utilities to allow graphing and datalogging at 0.2°C resolution.

The CAT5 Enabled version allows you to place the sensor up to 1000 feet from the SensorProbe using standard CAT5 cable (5 ft cable included).



Order Summary



Product Image

SKU

Product Options

Package Contents
CAT5 Enabled Image GC-AK-THS-00 CAT5 Enabled Temperature Data Sensor and 5 Ft cable with RJ-45 connectors
1 Ft Cable Image GC-AK-THS-01 1 Ft Cable 1 Ft cable with sensor and RJ-45 connector
15 Ft Cable Image GC-AK-THS-15 15 Ft Cable 15 Ft cable with sensor and RJ-45 connector
Water Resistant Pipe 15 Ft Image GC-AK-THS-W15  (DISCONTINUED)
Water Resistant 15 Ft Cable
15 Ft water resistant cable with sensor and RJ-45 connector

Features

  • sensorProbe and securityProbe controllers autodetect the presence of the dual sensor
  • Dual sensor only requires 1 port on controllers
  • Sensor element wettable without damage
  • CAT5 Enabled version allows you to add up to 1000' of CAT5 cable to the sensor
  • Own SNMP OID for data collection via network

Documents and Drivers

Documentation

Temperature & Humidity Sensor Datasheet
1 Ft. Cable

Temperature & Humidity Sensor Datasheet
CAT5 Enabled

Temperature & Humidity Sensor Datasheet
Waterproof 15 Ft. Cable

AKCP Sensor Selection Summary

Specifications

CAT5 Enabled

Version allows you to add up to 1000' of CAT5 cable to the sensor

Communications Cable

RJ-45 jack to dual sensor using UTP CAT5 wire

Management

Sensor element wettable without damage

Measurement Accuracy

Temperature:

  • Maximum: ±2.3 at -40°C (±4.1 at -40°F)
  • Minimum: ±0.4 at +25°C and ±1.7 at +75°C (±0.9 at +25°F and ±4 at +167°F)

Humidity:

  • 25°C (77°F) ±3%

Measurement Range

  • Temperature: -40°C (-40°F) to +75°C (+167°F)
  • Humidity: 0 to 100% Relative Humidity

Measurement Rate

One reading per second

Measurement Resolution

  • Temperature: 1°C (1°F)
  • Humidity: 1%

MPN

THS00

Power Consumption

  • Temperature: Typical 10.70 mWatt, 2.14 mA sensorProbe autodetects the presence of the temperature sensor
  • Humidity: Typical 7.25 mWatt, 1.45 mA

Power Supply

Powered by the sensorProbe. No additional power needed
