DATAEAGLE 3712A X-TREME Kit - Wireless PROFIBUS, PROFIsafe

$4,400.00

Leave a review

SKU: GC-SCH-DE-XTR-3712A-KIT

MPN: GC-SCH-DE-XTR-3712A-KIT

Manufacturer: Schildknecht AG

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.
Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

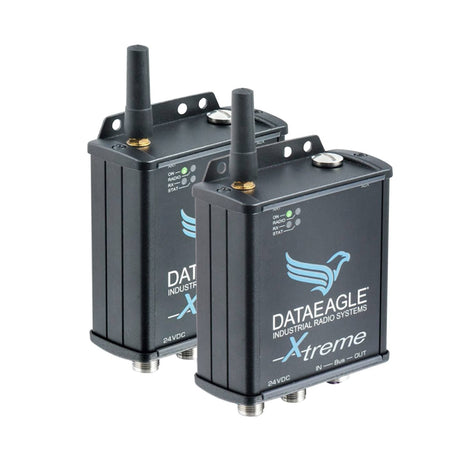

The DATAEAGLE 3712A X-Treme Kit allows for PROFIBUS DP data transfers over a reliable, wireless network using PROFIsafe technology. The kit consists of 2 pre-paired radios (1 master and 1 slave) for plug & play implementation.  An antenna is not included.  Contact sales to select the correct antenna for your application.

The connection is created between 2 copper DP segments, and is capable of data transmissions up to 1.5 Mbit/s. The system supports up to 8 PROFIBUS DP slaves and a total of 4 radio slaves, creating a multipoint radio topology.

The X-Treme kit is small and easily mounted in any environment with an IP65 rated case and secure surface mounting with 4 screw-holes.

The device uses a patent filter technology that ensures a highly reliable and error-free link running on 2.4 GHz Bluetooth, 100m W (EIRP) frequency and is able to transmit up to 100 meters indoors and 300 meters in open areas.


Compare DATAEAGLE 3000 Series.

Common Applications Include:
  • Replacement of conductor lines
  • Replacement of optical coupler
  • Replacement of trailing cable/cable chains
  • Replacement of slip rings
  • Water/sewage and raw materials management
  • Cranes/crane systems
  • Storage systems
  • Machine construction
  • Automotive industry
  • Transport vehicles
  • Lifts/elevators



Features

  • Max. number of radio slaves: 1
  • Max. number of DP slaves: 1
  • IP65 rated case
  • 187.5 kbit/s PROFIBUS DP transmission rate
  • Transmission range up to 100 meters (indoors)
  • Transmission range up to 300 meters (outdoors)
  • 24V DC power supply
  • Mounting plate with 4-hole screw fastening
  • 2.4 GHz Bluetooth, 100mW (EIRP)

Documents and Drivers

Documentation

DataEagle 3710 X-TREME User Manual

DataEagle 3000 Series Datasheet

DataEagle 3000 X-TREME Series Quick Reference Guide

Specifications

Antennas

SMA Connection - 50 Ohm

Cable Length

5 m

Certifications

CE, FCC

Connector(s)

Terminal clamps and 9 pol. SUB D

Dimensions

42 mm x 88 mm x 120 mm

Enclosure

IP65 rated case

Frequency Band

2.4 GHz Bluetooth

Included in Box

  • 1 DataEagle X-Treme 3717-A Master
  • 1 DataEagle X-Treme 3717-A Slave
  • 2 Omnidirectional Antenna
  • 3 dB with magnetic base and connecting cable (5m)

Interface(s)

PROFIBUS

Mounting

Mounting plate with 4-hole screw fastening

MPN

11326, 11327

Power Consumption

100 mA

Power Supply

24 V DC

Product Weight

280 g

Range

  • Indoor: 100m
  • Outdoor: 300m

Temperature Range

-20ºC to 60ºC (-4ºF to 140ºF)

Transmission Speed

187.5 kbit/s

Transmit Power

100 mW (EIRP)
