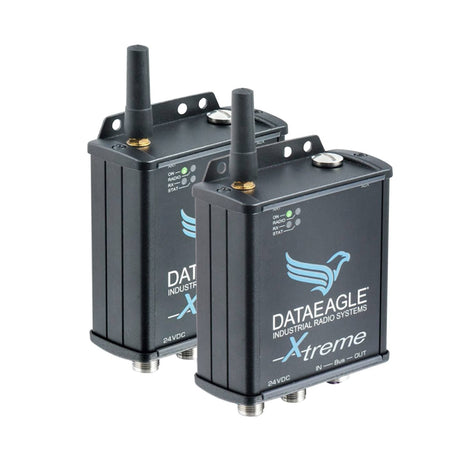

DATAEAGLE 3710 X-TREME Starter Kit - Wireless PROFIBUS

$2,704.00

Leave a review

SKU: GC-SCH-DE-XTR-3710-SK

MPN: 11173

Manufacturer: Schildknecht AG

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.
Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The DATAEAGLE 3710 X-Treme Starter Kit offers a reliable, wireless PROFIBUS DP transfer with an easy plug & play implementation. The system is capable of data transmission up to 187.5 kbit/s and supports 1 PROFIBUS slave or 1 radio slave.

The X-Treme starter kit is designed for harsh environments with an IP65 rated case and is easily mounted with 4-hole screw fastening. The patent filter technology ensures a highly reliable and error-free link running on 2.4 GHz Bluetooth, 100m W (EIRP) frequency. The device can be used in all kinds of environments or hard to reach places and is capable of transmissions up to 100 meters indoors and 300 meters in open areas.

The Kit includes 1 master and 1 slave unit pre-paired and ready to use. An antenna is not included.  Contact sales to select the correct antenna for your application.

Additional devices with PROFIBUS DP interface can be connected via radio links, allowing the DATAEAGLE to be implemented in existing networks.


Compare DATAEAGLE 3000 Series.

Common Applications Include:
  • Replacement of conductor lines
  • Replacement of optical coupler
  • Replacement of trailing cable/cable chains
  • Replacement of slip rings
  • Cranes/crane systems
  • Storage systems
  • Machine construction
  • Lifts/elevators
  • Automotive industry
  • Transport vehicles
  • Water/sewage and raw materials management



Features

  • Max. number of radio slaves: 1
  • Max. number of DP slaves: 1
  • IP65 rated case
  • 187.5 kbit/s PROFIBUS DP transmission rate
  • Transmission range up to 100 meters (indoors)
  • Transmission range up to 300 meters (outdoors)
  • 24V DC power supply
  • Mounting plate with 4-hole screw fastening
  • 2.4 GHz Bluetooth, 100mW (EIRP)

Documents and Drivers

Documentation

DataEagle 3710 X-TREME User Manual

DataEagle 3000 Series Datasheet

DataEagle 3000 X-TREME Series Quick Reference Guide

Specifications

Antennas

SMA Connection - 50 Ohm

Cable Length

5 m

Certifications

CE, FCC

Connector(s)

Terminal clamps and 9 pol. SUB D

Dimensions

42 mm x 88 mm x 120 mm

Enclosure

IP65 rated case

Frequency Band

2.4 GHz Bluetooth

Included in Box

  • 1 DataEagle X-Treme 3717-A Master
  • 1 DataEagle X-Treme 3717-A Slave
  • 2 Omnidirectional Antenna
  • 3 dB with magnetic base and connecting cable (5m)

Interface(s)

PROFIBUS

Mounting

Mounting plate with 4-hole screw fastening

MPN

11173

Power Consumption

100 mA

Power Supply

24 V DC

Product Weight

280 g

Range

  • Indoor: 100m
  • Outdoor: 300m

Temperature Range

-20ºC to 60ºC (-4ºF to 140ºF)

Transmission Speed

187.5 kbit/s

Transmit Power

100 mW (EIRP)
