DATAEAGLE 3712A Compact Kit - Wireless PROFIBUS, PROFIsafe

$4,400.00

Leave a review

SKU: GC-SCH-DE-CPT-3712A-KIT

MPN: GC-SCH-DE-CPT-3712A-KIT

Manufacturer: Schildknecht AG

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.
Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

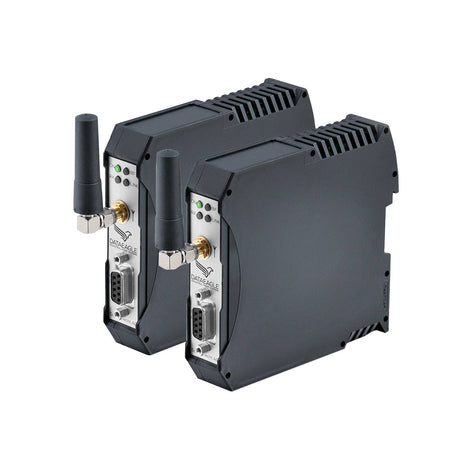

The DATAEAGLE 3712A Compact Kit uses a patent filter technology to ensure a highly reliable, error-free connection for wireless PROFIBUS DP transfers. This kit is a plug & play system that includes 2 pre-paired radios (1 master and 1 slave) equipped with PROFIsafe technology. An antenna is not included.  Contact sales to select the correct antenna for your application.

The DIN rail mounting and IP20 rated case allows the device to be used in a variety of environments. The network uses 2.4 GHz Bluetooth, 100m W (EIRP) frequency and is capable of transmissions up to 300 meters in open areas or 100 meters in doors.

The network is able to support a total of 4 radio slaves and 8 PROFIBUS DP slaves with a data transmissions up to 1.5 Mbit/s. Additional devices with PROFIBUS DP interface can be tied in with radio links, allowing the device to be implemented in an existing network.


Compare DATAEAGLE 3000 Series.

Common Applications Include:
  • Replacement of conductor lines
  • Replacement of optical coupler
  • Replacement of trailing cable/cable chains
  • Replacement of slip rings
  • Water/sewage and raw materials management
  • Cranes/crane systems
  • Storage systems
  • Machine construction
  • Automotive industry
  • Transport vehicles
  • Lifts/elevators



Features

  • 1.5 Mbit/s PROFIBUS DP transmission rate
  • Max. number of radio slaves: 4
  • Max. number of DP slaves: 8
  • PROFIsafe technology
  • 2.4 GHz Bluetooth, 100mW (EIRP)
  • Transmission range up to 100 meters (indoors)
  • Transmission range up to 300 meters (outdoors)
  • 24V DC power supply
  • DIN rail mounting
  • IP20 rated case

Documents and Drivers

Documentation

DataEagle 3712A Compact User Manual

DataEagle 3000 Series Datasheet

DataEagle 3000 Compact Series Quick Reference Guide

Specifications

Antennas

SMA Connection - 50 Ohm

Cable Length

5 m

Certifications

CE, FCC

Connector(s)

Terminal clamps and 9 pol. SUB D

Dimensions

114.5 mm x 22.5 mm x 99 mm

Enclosure

IP20 rated case

Frequency Band

2.4 GHz Bluetooth

Included in Box

  • 1 DataEagle Compact 3712A Master
  • 1 DataEagle Compact 3712A Slave
  • 2 Omnidirectional Antenna
  • 3 dB with magnetic base and connecting cable (5m)

Interface(s)

PROFIBUS

Mounting

DIN rail

MPN

11168, 11169

Power Consumption

100 mA

Power Supply

24 V DC

Product Weight

130 g

Range

  • Indoor: 100m
  • Outdoor: 300m

Temperature Range

-20ºC to 60ºC (-4ºF to 140ºF)

Transmission Speed

1.5 MBit/s

Transmit Power

100 mW (EIRP)
