Product Information
Product Description

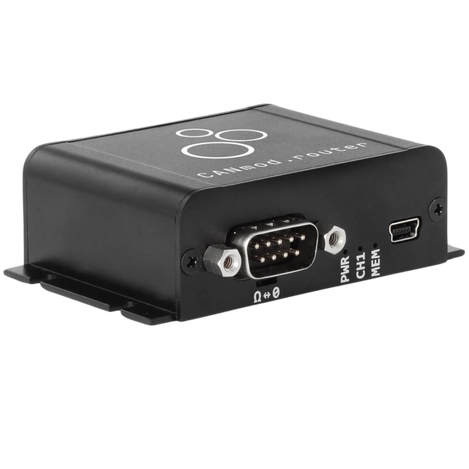

The CANmod.router lets you receive/transmit CAN data (Classical or FD) from/to 4 isolated secondary CAN buses via 1 primary CAN bus (or USB). This compact module is 100% standalone (no PC required) and offers pro specs, daisy chaining and powerful configuration options.
When used with the CANedge, it enables you to log 5 x CAN buses (or beyond via daisy chaining).
It can be used as a powerful 4 x CAN FD to USB interface with free software/API tools.
View Connector Pinout Information
Example: Transport muxed CAN data through tunnels
In mux-mode, traffic from/to the secondary CAN buses is routed through the primary CAN bus via tunnels (CAN frames that transport the original data). Muxed data received by a user CAN node (e.g. CANedge) can be easily demuxed to its original form via software/API tools.
Example: Interface 4 CAN buses with just 1 CAN bus (or USB)
Receive/transmit data from/to 4 x CAN buses via 1 x CAN bus (or USB) - e.g. for use by CAN loggers, ECUs or via USB streaming.
- 4 x CAN (incl. CAN FD) with basic galvanic isolation
- Power via DB9 (5-26 V and DB9 cables) or USB (5V)
- Independently configure each secondary CAN interface
- Optional silent mode and independently customizable bit-rates
- Advanced message filters and prescalers
- Configure transmit lists - and/or control via primary CAN
- Support for CAN error frame logging
- Quickly connect 4 x CAN via DB25-to-4x-DB9 adapter cable
- Daisy chain multiple modules for 8, 12, 16, ... CAN channels
Example: CANedge + CANmod.router = 5 x CAN bus data logger
The CANedge supports 2 x CAN. By adding a CANmod.router, you can now log 1 x CAN (CH1) + 4 x CAN (CH2) - or beyond.
- Power the CANmod.router via the CANedge 2nd port 5V
- Maximize 4 x CAN throughput via CAN FD routing (mux-mode)
- Easily demux routed data via MF4 converter or Python API
- Control transmission on the 4 x CAN via CANedge
- Use daisy chaining to log 1 + 8 x CAN, 1 + 12 x CAN (or beyond)
Example: Stream 4 x CAN FD via USB in SavvyCAN/Python
You can also interface the 4 x CAN buses via USB - making the CANmod.router the best value/cost CAN interface on the market.
- Receive/transmit data from 4 x CAN FD via USB
- Stream 6,000+ frames/second without frame loss
- Power the CANmod.router via USB for easy installation
- Stream raw / DBC decoded data in free SavvyCAN GUI
- Develop any integration via free Python API
- Example: Visualize decoded data in Grafana-MQTT dashboards
Features
- Plug and Play - Connect up to 4 x CAN via 1 x CAN (or USB) - no configuration required
- Compact size
- Pro Specs - 4 x CAN FD. Basic galvanic isolation. Silent mode. Zero data loss. 1 ms precision. Error frame support.
- Mux Mode - Transport 4 x CAN via 1 x CAN. Easily demux data.
- Seamless - Fully supported by CANedge/CANmod software/API tools.
- Configurable - Configure filters, prescalers, transmit lists, CAN IDs, bit-rates and more via JSON config and GUI
Documents and Drivers
Documentation
CANmod.router Connector Pinout Information
CANmod.router Documentation Information
Specifications
Package Contents
CANmod.router module and USB dust cover
Firmware updates
Supports free firmware updates vis USB for adding features
Software
- Free open source editor tool for easy device configuration
- Free open source SavvyCAN GUI for streaming of raw / DBC decoded data via USB
- Free open source Python API for streaming of raw / DBC decoded data via USB
Certifications
CE, FCC, IC and RoHS certified
CAN BUS (CAN-S)
Channels
4 x CAN channels (incl. CAN FD support)
Isolation
Basic galvanic isolation
Standard
ISO 11898: Compliant with CAN (between 5K and 1 Mbit/s baud rates) and CAN FD (1M, 2M, 4M, 5M)
Protocols
Receive/transmit raw data from/to CAN based protocols
Identifiers
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Retransmission
Retransmission of frames that have lost arbitration or been disturbed by errors
Transceiver Protection
- Protection: +/- 25kV HBM ESD, +/-12kV IEC ESD, +/-14 V bus fault, short circuit
- Common mode input voltage: +/-12V
- TXD dominant timeout (prevents network blocking in the event of a failure)
CAN BUS (CAN-P)
Channels
1 x CAN channel (incl. CAN FD support)
Modes
The device can either broadcast the data onto the CAN bus - or provide it on-request
Standard
ISO 11898: Compliant with CAN (between 5K and 1 Mbit/s baud rates) and CAN FD (1M, 2M, 4M, 5M)
Identifiers
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Termination
Termination can be toggled via switch below DB9 connector
Retransmission
Retransmission of frames that have lost arbitration or been disturbed by errors
Transceiver Protection
- Protection: +/- 25kV HBM ESD, +/-12kV IEC ESD, +/-14 V bus fault, short circuit
- Common mode input voltage: +/-12V
- TXD dominant timeout (prevents network blocking in the event of a failure)
CONFIG (CAN-S)
Independence
Each secondary CAN channel can be independently configured (router mode is set globally)
Bit-Rate
Select between standard bit-rates (5K to 1M) or use custom bit-timing (configure per channel)
Bit-Rate Auto-Detect
Bit-rates can be set manually (auto-detection pending FW)
Silent Mode
Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
Filters
32 regular/extended ID filters per channel (mask, acceptance, rejection)
Prescalers
Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes)
Transmit
- Transmit lists of up to 16 CAN frames per channel (single-shot/periodic)
- Transmission can also be directly controlled from the CAN-P interface
CAN Error Frames
Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
CONFIG (CAN-P)
Bit-Rate
Select between standard bit-rates (standard: 5K to 1M, FD: 1M to 4M) or use custom bit-timing
Identifier Customization
Individually configure each CAN ID (11-bit or 29-bit)
ELECTRICAL
Input Supply
- +5V to +26V DC via the DB9 connector (power via pin 1 or pin 9)
- Alternatively power via USB (for updating firmware/config or for streaming data in real-time)
Power Consumption
Extremely low (<1W) - no risk of battery drainage
Protection
- Reverse voltage protection on CAN-bus supply
- Transient voltage event protection on supply lines
MECHANICAL
Enclosure
IP40, Compact aluminum enclosure: 65 x 48 x 24 mm ( 2.6 x 1.9 x .9 in) (Excludes: flanges & connectors).
Weight
75 grams ( .17 lb)
Connectors
- Front: 1 x Standard D-sub 9 (DB9) connector
- Back: 1 x D-sub 25 (DB25) connector
USB
Standard mini USB connector for config/FW updates and streaming
LEDs
Module status via 7 external LEDs: Power, CAN-P, Memory, CAN-S1, CAN-S2, CAN-S3, CAN-S4
Temperature
Operating temperature: -25°C ~ 70°C (-13°F ~ 158°F)
Mounting
Can be mounted via velcro strips or mounting kit
Precision
Cross-channel precision of 1 ms
Frames/Second
Mux-mode: Route 6,000+ frames/second (Classical CAN)
