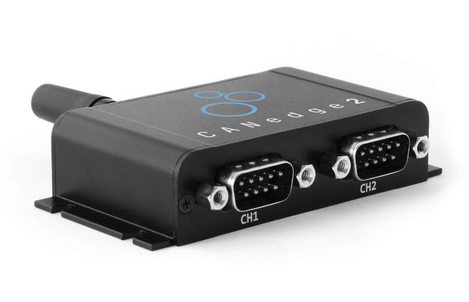

CANedge2 - Wi-Fi CAN BUS Data Logger
CANedge2: 2x CAN Bus Data Logger (SD + WiFi)
CANedge2 - Wi-Fi CAN BUS Data Logger
Product Images
CANedge2 - Wi-Fi CAN BUS Data Logger: 8GB SD Card
$529.95
5.0 stars 5.0 (2) See customer reviews
SKU: GC-CSS-CANEDGE2-8GB
MPN: #83 CANEDGE2-8GB
Manufacturer: CSS Electronics ApS
Stock Status: In stock
Delivery: Ships same or next business day
Qualifies for Free shipping to the US
SD Card
-
$529.95
-
$619.95
We Have You Covered
Skip To Footer
Product Information
Product Description
CANedge2 is a data logger with 2 CAN/LIN channels, Wi-Fi capabilities and an extractable industrial SD card. Data with timestamps can be logged directly to the SD card or can be auto-pushed to a local or remote server.
This compact device connects securely to local or remote servers via Wi-Fi access points such as WLAN, 3G or 4G. Firmware and configuration updates can be done over-the-air.
With software based on open standards, there are no proprietary tools required and no subscription fees.
The CANedge2 is perfect for the areas of :
- Telematics
- Fleet management
- R & D field tests
- Diagnostics & maintenance
Order Summary
SKU |
SD Card |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-CSS-CANEDGE2-8GB | 8GB SD Card | #83 CANEDGE2-8GB |
| GC-CSS-CANEDGE2-32GB | 32GB SD Card | #91 CANEDGE2-32GB |
Intro to CANedge
Features
- Extractable 8GB or 32GB industrial SD card
- Dual high sped CAN/CAN FD/LIN channels
- Data encryption and compression
- Upload data to your own local/dedicated/cloud server
- Auto-upload log data from SD when connected to Wi-Fi
- Manage via over-the-air updates
- Zero fees. Zero lock-in. Interoperable. Open source tools
- Fast boot time. Safely disconnect during use
Documents and Drivers
Documentation
CANedge2 Getting Started Introduction
CANedge2 Manual
Specifications
Antennas
External (SMA, 2400 Mhz, <2 dBi gain)
Certifications
- CE, FCC, IC and RoHS certified (see the manual)
- Tested for voltage transients (emissions/immunity), ISO 7637-2:2011, by TÜV SÜD (see the manual)
Connector(s)
2 x Standard D-sub 9 (DB9)
Dimensions
52.5 x 81.4 x 24.5 mm
Enclosure
Aluminum - IP 40
Encryption
- Supports WPA/WPA2
- WiFi access point & server credentials can be encrypted in the config on the device SD card
Firmware
- Updates are digitally signed to verify that they are from a trusted source
- Configuration/updates can be done OTA (Over-the-air)
Indicators LED
Logger status via 4 external LEDs: Power, CH1, CH2, Memory
Interface(s)
- SD card: 8GB or 32GB extractable Class 10 industrial micro SD (SDHC)
- Server: Popular S3 REST interface - MinIO (open source), AWS, Google Cloud, …
MPN
CANedge2-8GB, CANedge2-32GB
Power Consumption
Extremely low (~1 W) - no risk of battery drainage
Protocols
- CAN bus: Log raw data from CAN based protocols (J1939, FMS, CANopen, NMEA 2000, OBD2, ...)
- Wi-Fi: HTTP/HTTPS: Stable and secure transfers - ideal for big data telematics
Security/Protection
- Reverse voltage protection on CAN-bus supply
- Transient voltage event protection on supply lines
Software
- Free open source editor tool for device configuration (offline/online version available)
- Free open source asammdf software & API for editing, DBC converting & plotting MDF4 data
- Free open source C++ MDF4 converters - drag & drop log files to convert into e.g. CSV, ASC, PCAP
Standards
- CAN bus: ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 5 Mbit/s)
- LIN bus: Compliant with LIN 2.0 up to 20 Kbit/s ("enhanced" checksum format)
- LAN: IEEE 802.11 b / g / n
Temperature Range
-25̊ C to +70̊ C (-13° F to 158° F)
