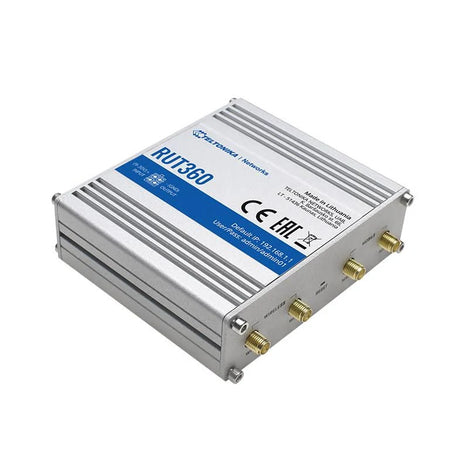

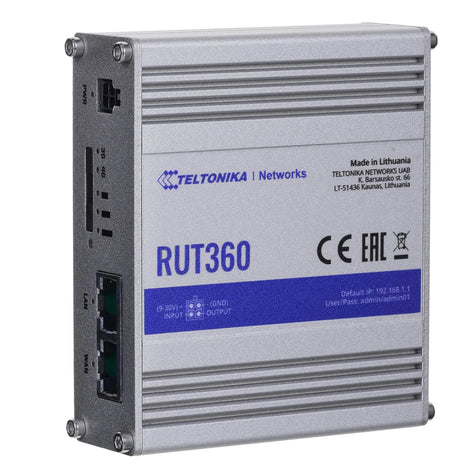

Teltonika RUT360 LTE CAT6 Industrial Cellular Router
Teltonika RUT360 LTE CAT6 Industrial Cellular Router
Product Images
Teltonika RUT360 LTE CAT6 Industrial Cellular Router
SKU: GC-TELT-RUT360
MPN: RUT360100100
Manufacturer: Teltonika IOT Solutions Canada Ltd.
We Have You Covered
Product Information
Product Description

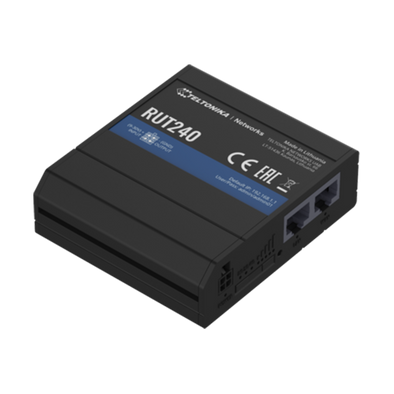

RUT360 is an updated North American version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks. Supports Universal IoT SIM cards and IoT SIM cards from AT&T and Verizon for North, Central, and South America.
RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.
Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.
Features
- 4G LTE CAT 6: Cellular speeds up to 300Mbps with Carrier Aggregation
- 802.11 b/g/n WiFi
- Small size - easy integration anywhere
- Rugged aluminum housing
- Firewall and numerous VPN services, including OpenVPN, IPsec, PPTP, L2TP & SSTP
- Compatible with Teltonika Remote Management System
Documents and Drivers
Documentation
RUT360 Cellular Router Datasheet
RUT360 Cellular Router Flyer
Specifications
Antennas

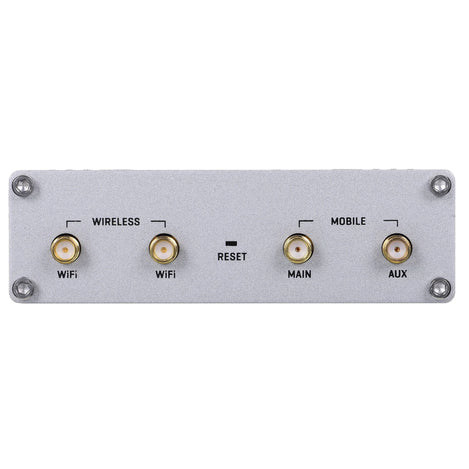

2 x SMA for LTE, 2 x RP-SMA for WiFi
Connector(s)
4 pin industrial DC power socket
CPU
QCA9531, MIPS 24kc, 650 MHz
Dimensions
100 x 30 x 85 mm (3.94 x 1.18 x 3.35 inches)
Firmware
WEB UI, FOTA, RMS, Keep settings
Flash Memory
16 MB, SPI Flash (optional up to 256 MB)
Housing
Aluminum
Humidity
10% to 90% non-condensing
Indicators LED
- 2 x Mobile connection type
- 3 x Mobile connection strength
- 2 x Eth status
- 1 x Power
Included in Box
- Router RUT360

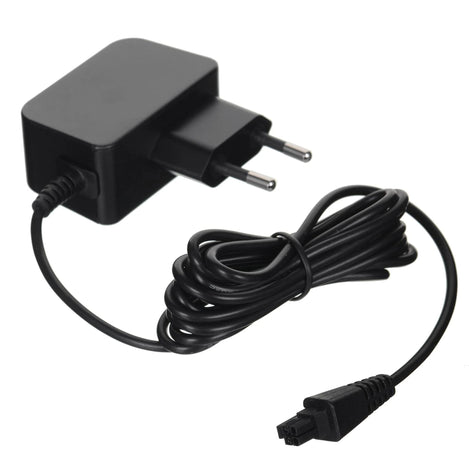

- 12 W PSU
- 2 x LTE antennas (swivel, SMA male)

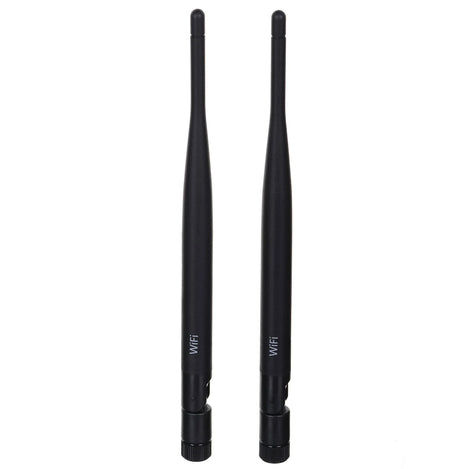

- 2 x WiFi antennas (swivel, RP-SMA male)

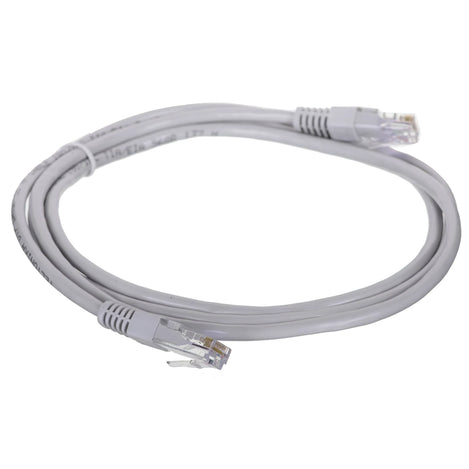

- Ethernet cable (1.5 m)

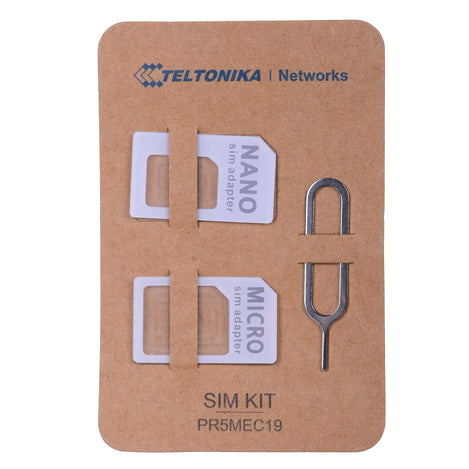

- SIM Adapter kit
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
Input/Output
2 x Configurable digital Inputs/Outputs on 4 pin power connector
Input Voltage
9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
Mounting
DIN rail, flat surface placement
MPN
RUT360100100
Pins
1 x 4 pin DC connector
Ports

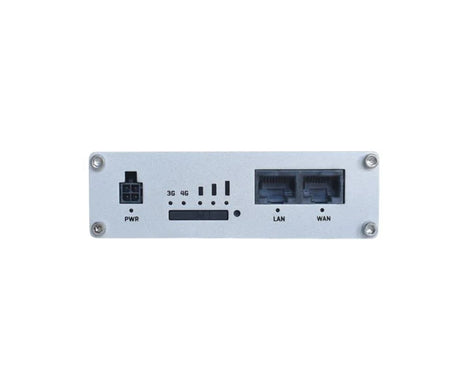

2 x RJ45 ports, 10/100 Mbps
Power Consumption
10.5 W max
Product Weight
247 g
Protocols
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
Security/Protection
- Authentication: Pre-shared key, digital certificates, X.509 certificates
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag based VLAN separation
- Mobile quota control: Set up custom data limits for the SIM card
- WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
- Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Slots
1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Temperature Range
-40°C to 75°C (-40°F to +167°F)
