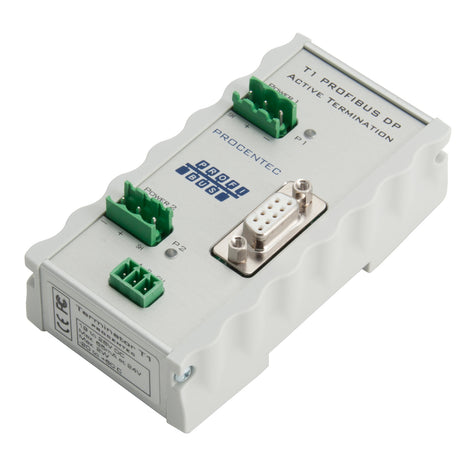

T1 - ProfiBus Terminator
T1 - ProfiBus Terminator, Anybus Diagnostics, MPN: 101-00211A
ProfiBus Terminator
T1 - ProfiBus Terminator
Product Images
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The T1 Terminator provides active and reliable termination for PROFIBUS networks which are based on RS 485. By using this component it is possible to turn off, remove or replace devices without disturbing the bus communication. This applies in particular to the devices at the end of the segment.
Special features which makes the T1 PROFIBUS Terminator a very useful infrastructure component.
- Redundant power supply and diagnostic LEDs to indicate the status of each power source
- Equipped with an additional DB9 connector for ProfiTrace or other maintenance/engineering tool
- Use DB9 connector as the primary bus connection if circumstances dictate
The T1 Terminator can be installed on a standard DIN-rail.
PROFIBUS Active Termination Explained
Specifications
Connector(s)
Removable screw terminals and 1 DB9 connector
Current
Consumption: < 60 mA
Data Rate
9,6 Kbps to 12 Mbps
Dimensions
106 x 55 x 33 mm
Enclosure
IP20
Indicators LED
Status, Power Supply
Mounting
DIN Rail
MPN
101-00211A
Power Supply
Redundant power supply (19-28 VDC)
Product Weight
< 125 g
Protocols
Supports all PROFIBUS RS 485 protocols (DP, DP-V1, DP-V2, FMS, PROFIsafe, PROFIdrive, MPI, etc.)
Temperature Range
-20°C to +60°C (-4°F to +140°F)
