STE2 R2: LAN/Wi-Fi Thermometer with alerting: 1 Pack

$294.00

Leave a review

SKU: GC-HWG-STE2-R2

MPN: 600753

Manufacturer: HW Group sro

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

Pack Size

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

STE2 R2 is a reliable environmental monitoring device for remote locations. LAN & WiFi, Email alerts, and SNMP monitoring available. External RJ11 sensors (up to 5 sensor values) and On/Off detectors (2x Digital Input) can be connected.

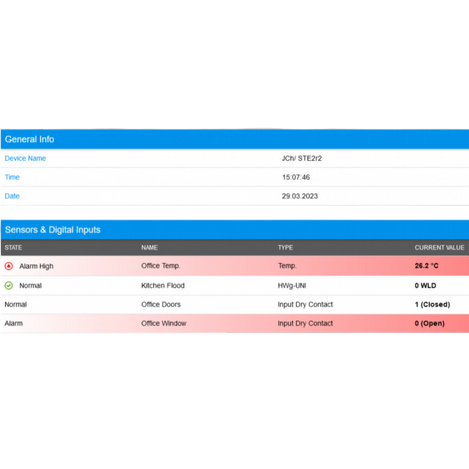

Sensor values are displayed via the device's web interface, in SNMP or XML API, on the Portal or HWg Monitor mobile app. Device can be connected to the network via WIFI or LAN (RJ45) with PoE power support.

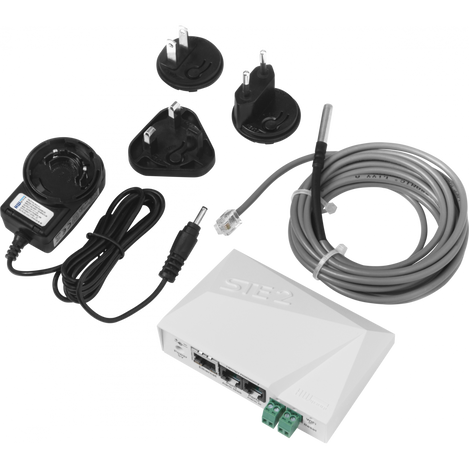

STE2 R2 package includes

  • STE2 R2 device
  • US/UK/EU power adaptor
  • 3m temperature outdoor sensor cable for remote temperature measurement (comes in 1 Pack, 20 Pack, 30 Pack options)

Applications and usage:

  • Remote data center environment monitoring & alerting
  • Remote temperature monitoring in IT
  • Remote air conditioning control (A/C unit cooling failure alert)
  • Food / Drug storage (control of storage conditions, creation of HACCP logs using application software)
  • Monitoring of temperature, relative humidity


Sensors

Additional sensors can be connected to a second RJ11 sensor port (% RH, Cryo temperatures, CO2, VoC, 4-20mA, water flood,etc.). RJ11 sensors can be daisy-chained or one physical sensor can measure several values (°C + %RH + VoC = 3 values). Up to 5 external RJ11 sensor values in total can be connected to STE2 R2.  Diagram of STE2 R2 showing connections of sensors to the 2 RJ11 ports


Order Summary

 SKU Pack Size Power Manufacturer Part # (MPN)
GC-HWG-STE2-R2 1 unit Pack US/UK/EU power adaptor 600753
GC-HWG-STE2-R2-20PK 20 unit Pack US/UK/EU power adaptor 600837
GC-HWG-STE2-R2-NP-30PK 30 unit Pack PoE only 600799

Features

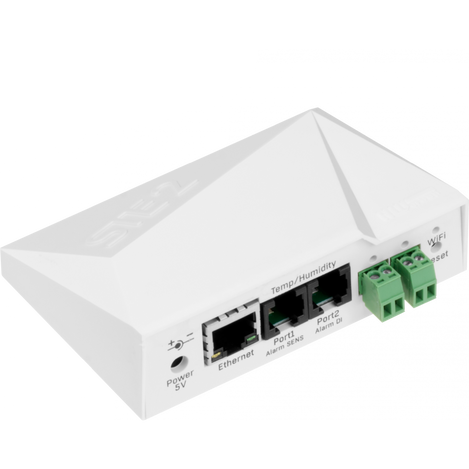

  • Connectivity: LAN, WiFi
  • 2x RJ11 port (1W-UNI) up to 5 sensor values in total
  • 2x DI (Digital input) for dry contacts
  • Temperature sensor (IP67 - 3m) included in the retail package
  • Power adapter (International = EU, UK, US) included for 1 Pack and 20 Pack options.
  • Product with OPEN API (SNMP, XML) SNMP, PoE (Power Over Ethernet) supported
  • Default portal: HWg-cloud.com (free service)

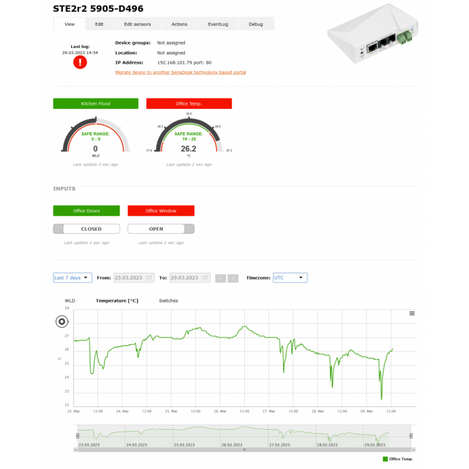

  • Compatible portals: SensDesk Technology
  • Mobile App: HWg Monitor (LAN or Portal connectivity)

Documents and Drivers

Documentation

STE2 r2 Flyer

STE2 r2 First Steps

STE2 r2 User Manual

Specifications

Ethenet

  • Interface: RJ45 (10/100BASE-T)
  • Supported protocols IP: ARP, TCP/IP (HTTP, HTTPS, SNTP, SMTP, HWg-Push, netGSM, TLS), UDP/IP (SNMP, Syslog)
  • SNMP: Version 1

Wi-Fi

  • Supported standards: 802.11 b/g/n
  • Frequency: 2.4GHz
  • Output: +19.5 dBm output power in 802.11b mode & +16 dBm for 802.11n
  • Security: WEP / WPA / WPA2 PSK
  • Antenna: Internal

External sensors

  • Port/connector: Port1, Port2 / RJ11 (1W-UNI)
  • Values limit: Up to 5 sensor values (°C, %RH, WLD, Voltage, etc.)
  • Sensor type: Only sensors from HW group s.r.o.
  • Sensors/distance: 2× Max. 60 meters total length (per each RJ11 port)

DI inputs (Dry Contact Inputs)

  • Port/connector: I1, I2 / ø2 mm terminal block
  • Type: Digital Input (supports NO/NC Dry contact)
  • Sensitivity: Sensitivity 1 (On) = 0-500 Ohm
  • Max. distance: Up to 50m

Power supply

  • Power voltage: 5V / 250 mA
  • Connector: Connector Jack Ø3.5 x 1.35 / 10 [mm]
  • PoE (Power over Ethernet): RJ45 - IEEE 802.3af Class 0

LED

  • Link: Yellow - Ethernet connection state
  • Activity: Green - Ethernet activity
  • Alarm: Port 1 - Alarm SENS - LED is lit in case of alarm active on a sensor, Port 2 - Alarm DI - LED is lit in case of alarm active on a DI
  • 2x DI input: Green - LED indicates switching on the DI Input
  • WiFi: Blue - connection state in operation (shining), search indicator (flashing slowly) and connecting (flashing quickly)

Other Parameters

  • Reset Button: Restore default settings: hold and connect power supply, keep holding button for 5 seconds.
  • Enclosure: Temperature sensor IP67
  • Operating temperature: -10°C ~ 60°C (14°F ~ 140°F)  Sensors temperature range can vary widely.
  • Dimensions:98 x 68 x 33 mm  (3.9 x 2.7 x 1.3 in)
  • Weight: 91 g (0.20 lbs)
  • Elmag. radiation: CE / FCC Part 15, Class B
  • Elmag. compatibility:  EN 61326-1:2013, EN 61010-1:2010, EN 55011:2009, EN 62311:2008
