HW group UPS 12V backup power source: No power supply

$202.50

SKU: GC-HWG-BUPS-12V
MPN: 600664
HW Group sro

Leave a review

Qualifies for free shipping to the continental US

Delivery: Ships within 7-14 business days
No power supply $202.50 With power supply $227.00

Customers Also Bought

Product Description

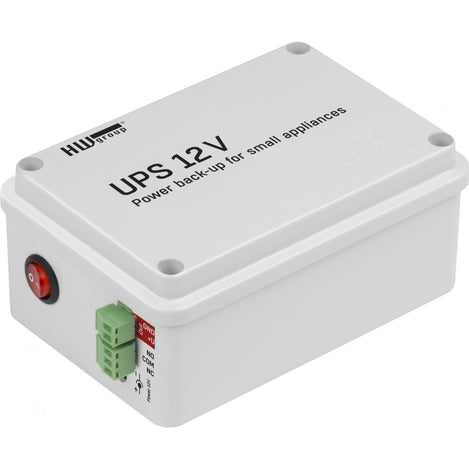

The UPS 12V is a compact backup power supply for devices requiring 12 V DC. It provides a regulated 12 V output up to 1.5 A and includes a built-in relay output to signal external power loss.

The unit is compatible with all HW group devices powered by 12 V adapters.

Use Case

While UPS systems are common in IT and household environments, small 12 V-powered devices (e.g., PBXs, monitoring units, control systems) are typically backed up using inefficient 230 V UPS solutions. The UPS 12V offers a dedicated, low-power alternative with minimal installation overhead.

During a power outage, the internal battery supplies 12 V to the load and opens the signal relay to indicate power loss. Once power is restored, the relay closes and the battery recharges.

Connection and Operation

  1. Connect the power adapter to the UPS. Both green LEDs should turn on.

  2. Connect the device to the Power Out connector.

  3. Switch on the UPS.

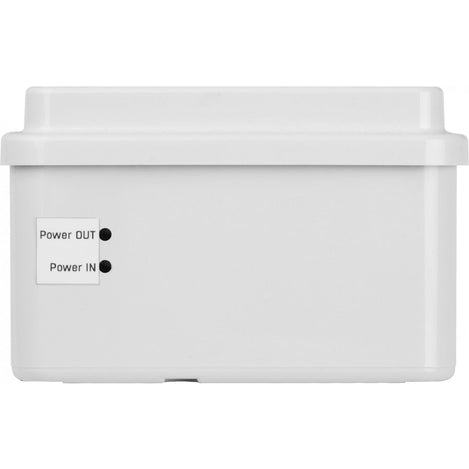

Function Test

  • Disconnect the power adapter.

    • Power IN LED turns off.

    • Power OUT LED remains on.

  • Switch off the UPS.

    • Power OUT LED turns off.

Note: The UPS power switch has no status indicator. Verify its state by checking the physical switch position.


Order Options

 SKU Power Supply Option Manufacturer Part # (MPN)
GC-HWG-BUPS-12V No Power Supply 600664

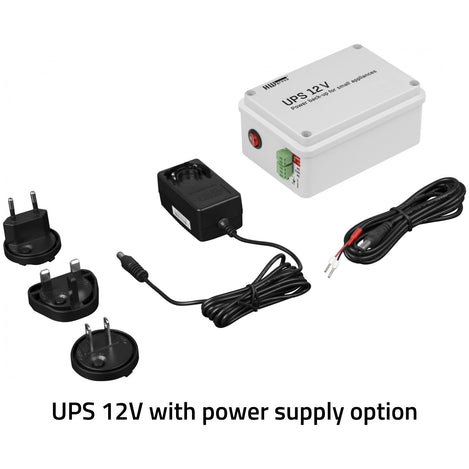

GC-HWG-BUPS-12V-SET Include Power Supply 600671

Features
  • Connection of backed-up appliances via pin connector
  • Up to 1,5 A load on 12 V output
  • UPS status information via relay output
  • Output voltage: 12V Dual Terminal
  • Input voltage: 12V/1,5V
  • Battery capacity: 1,3Ah (25°C) 0°C 85%, 25°C 100%, 40°C 102%
  • Signal relay load: 50V/1A

Documents and Drivers

Documentation

UPS 12V Flyer

Certification - EC declaration of conformity

Specifications

Power Supply

Jack Barrel

  • Connector: Inner 2.1 mm, Outer 5.5 mm
  • Voltage: 12 V
  • Consumption: 1500 mA

Terminal Block

  • Voltage: 12 V
  • Consumption: 1000 mA

Environment

  • Operating: -20°C ~ 50°C (-4°F ~ 122°F), 0% to 100%RH
  • Storage: -20°C – 60°C (-4°F ~ 140°F), 5% to 95%RH

Physical

  • Dimensions (W x H x D): 136 x 89 x 62 mm (5.3 x 3.5 x 2.4 in)
  • Weight: 705 g (1.55 lb)
