STE2 Plus: SNMP Temperature Monitoring with Extra Sensor Ports
STE2 Plus: SNMP Temperature Monitoring with Extra Sensor Ports
Product Images
STE2 Plus: SNMP Temperature Monitoring with Extra Sensor Ports: STE2 PLUS only (No Kit)
$325.50
SKU: GC-HWG-STE2-PLUS-PLN
MPN: 600819
Manufacturer: HW Group sro
Sensor Kit
-
$325.50
-
$418.80
-
$7,706.10
We Have You Covered
Product Information
Product Description
STE2 PLUS is a professional LAN & WiFi remote sensors monitoring product. You can connect external sensors (up to 15 values) to 2x RJ11 ports. External detectors can be connected to 2x DI (Digital Input). The STE2 PLUS is a professional product with HTTPS custom certificates, SNMPv3, SNMP Traps and IPv6.
Sensor values are displayed via the device's web interface, in API (SNMP or XML) on the Portal or on the mobile/tablet screen (HWg Monitor).
The device can be connected to the network via WIFI or LAN (RJ45) with PoE power support.

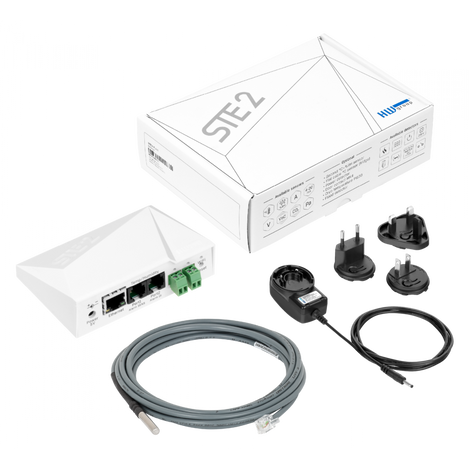

STE2 PLUS package includes
- STE2 PLUS device
- power adaptor
- Cloud if select option 1 temperature sensor kit
- 3m outdoor temperature sensor for remote temperature measurement (select kit options - view Order Summary below
Applications and usage
- Remote technical rooms monitoring
- Drug storage with reports from Portal
- Food storage (control of storage conditions, creation of HACCP logs using application software)
- Building environment monitoring
- Remote monitoring of refrigerator or freezer (alert when refrigerator fails, logging of operating and storage conditions)
- Detection of water flooding at the point
- Heating optimization (savings in heating and air conditioning costs)
Sensors
Up to 15 external temperature sensor values can be connected to STE2 PLUS. Sensors can be daisy-chained from RJ11 port. One physical sensor can measure several values (°C + %RH = 2 sensor values). The maximum limit is 15 sensor values in total.
Order Summary
| SKU | Temperature Sensor | Power | Cloud | Manufacturer Part # (MPN) |
| GC-HWG-STE2-PLUS-PLN | None | None | None | 600819 |
| GC-HWG-STE2-PLUS | 1 unit | US/UK/EU adaptor | Yes | 600832 |
| GC-HWG-STE2-PLUS-20PK | 20 Pack | US/UK/EU adaptor | None | 600838 |
Features
- Connectivity: LAN, WiFi
- 2x RJ11 port (1W-UNI) up to 15 sensor values in total
- 2x DI (Digital Input) for dry contacts
- Temperature sensor (IP67 - 3m) included
- Power adapter (International = EU, UK, US) included
- Professional product features: IPv6, SNMP Traps, SNMP v3, VDO, HTTPs (customer certificate), PoE (Power Over Ethernet)
- Default portal HWg-cloud.com (free service) with 1 temperature sensor kit option
- Compatible portals: SensDesk Technology (not included)
- Mobile App: HWg Monitor (LAN or Portal connectivity)
- SNMP v3 is secured version of SNMP protocol.
- 8x VDO (Virtual Digital Output) gives the STE2 PLUS the ability to control relay outputs on other LAN devices
- Alarm Reminder repeats information about the duration of the alarm condition as long as the condition persists.
Documents and Drivers
Documentation
STE2 PLUS Flyer
STE2 PLUS First Steps
STE2 PLUS User Manual
Specifications
Hardware
External power
5V Jack Ø 3.5 × 1.35 mm, PoE RJ-45
Temperature range
-10°C ~ 60°C (14°F ~ 140°F)
Dimensions
96 x 68 x 33 mm (3.8 x 2.7 x 1.3 in)
Weight
91 g (0.20 lb)
Connectivity
LAN, WiFi
External Sensors & Detectors
Sensor ports
2 RJ11 ports, 15 sensor values in total
Compatible sensors
RJ11 sensors from HW group (1W / 1W-UNI)
Main sensors you can monitor
- Temperature, Relative Humidity, Voltage,
- AC / DC Current, Flood detection, CO 2,
- VoC, Light intensity, & many more
Digital Inputs
2× Dry contact input
Communication
M2M Open API
SNMP v1/v2, SNMP v3, XML, HWg-Push
Alarms
Email, SNMP Traps, HWg-Push
Features
IPv6, VDO (Virtual Digital Outputs)
Sofware/Services
SensDesk Technology portal
Online remote monitoring service. Graphs, alerts, device management
HWg-cloud.com
Free of charge portal service
Mobile App
HWg Monitor
Other software
3rd party software, HWg-SDK
