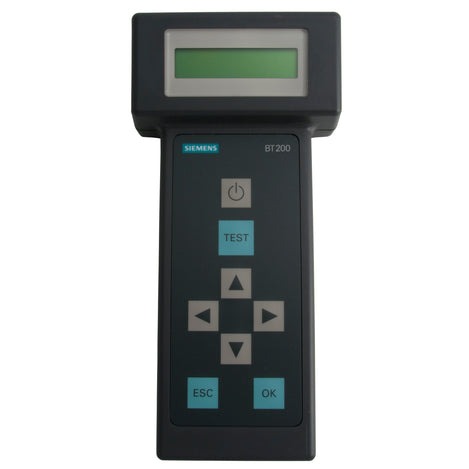

Siemens BT200 - Profibus DP Cable Tester, Charger Included
Siemens BT200
Siemens BT200 - Profibus DP Cable Tester, Charger Included
Product Images
Siemens BT200 - Profibus DP Cable Tester, Charger Included
SKU: GC-DETECT-PB-BT200
MPN: 40210 + 40211-A
Manufacturer: Procentec
We Have You Covered
Product Information
Product Description
The BT200 can quickly detect installation errors by verifying the PROFIBUS DP cable at the end of the installation phase. This simple tool requires no special knowledge to use and is easy to handle. Attach the BT200 to the first PROFIBUS connector and a test plug to the last PROFIBUS connector. Press 'Test' and the screen will display a fault or OK message.
Test functions include:
- Wiring test
- Station test
- Branch test
- Distance measurement
- Reflection test
Package includes:
- Siemens BT200 Cable Test unit
- Battery
- Test plug
- Test cable
- 110 V Charger
NOTE: It can only be used when the installation is NOT running (non active masters)!
Features
Detecting static faults
- Breaks in the signal wires and cable shield.
- Short-circuits between the signal wires.
- Swapped signal wires.
- Missing termination.
Device functionality
- RS 485 test.
- Power supply for line termination test.
- RTS signal test.
Administration
- Determining the length of the installed cable.
- Listing of accessible slaves.
Documents and Drivers
Documentation
BT200 Datasheet
BT200 User Manual
Specifications
MPN
40210 + 40211-A
