$59.95
This product is discontinued and no longer available.

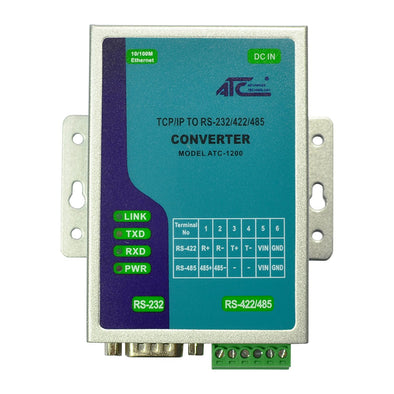

Suggested replacement: ATC-1200 - TCP/IP To RS-232/422/485 Converter
Serial Ethernet Converter- ATC-1000 Low Cost RS232/422/485 to Ethernet

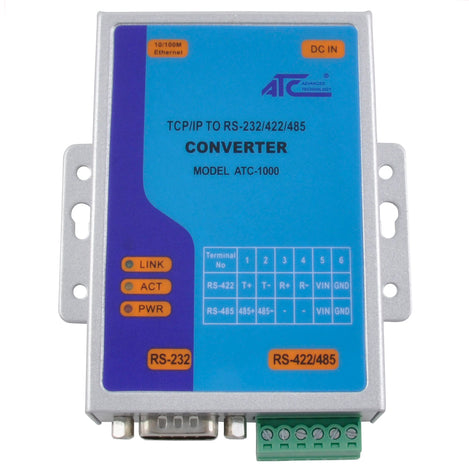

Serial Ethernet Converter - ATC-1000

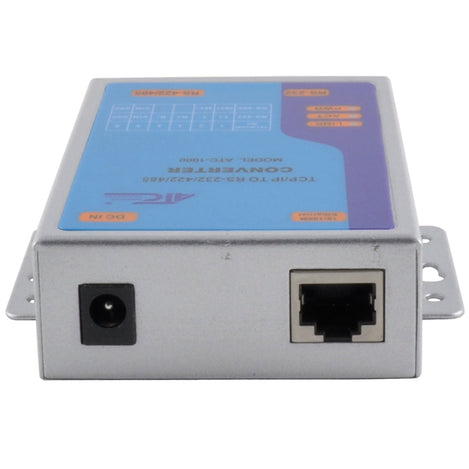

Serial Ethernet Converter - ATC-1000 Back

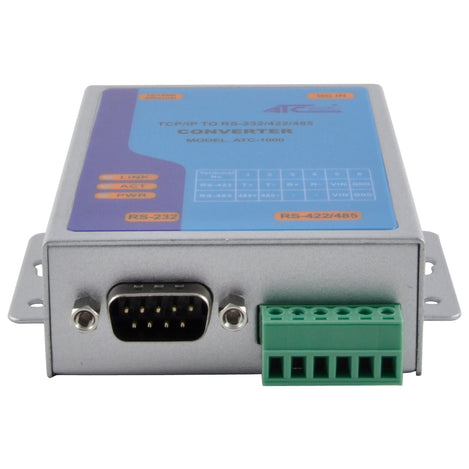

Serial Ethernet Converter - ATC-1000 Front

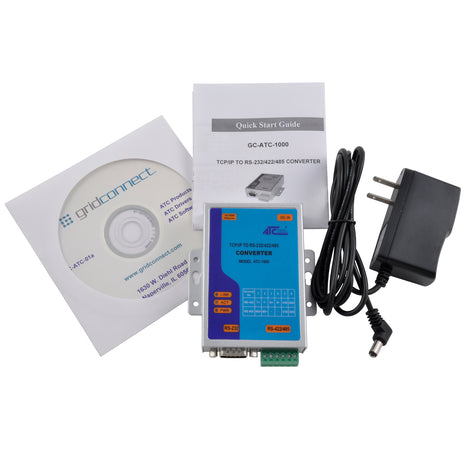

Serial Ethernet Converter - ATC-1000 Included in Box
Serial Ethernet Converter- ATC-1000 Low Cost RS232/422/485 to Ethernet
Product Images
Serial Ethernet Converter- ATC-1000 Low Cost RS232/422/485 to Ethernet
4.8 stars 4.8 (4) See customer reviews
SKU: GC-ATC-1000
MPN: ATC1000
Manufacturer: ATC
We Have You Covered
Skip To Footer
Product Information
Product Description
The ATC-1000 is a low cost high performance single port serial (RS232/422/485) to Ethernet converter. The ATC-1000 is simple to configure using a web page to configure the serial port parameters and the Ethernet network configuration.
Includes MS Window®-based PC software for configuration and COM port redirection, and an AC wall power supply.
Documents and Drivers
Documentation
Compare ATC Serial to Ethernet Adapters
ATC-1000 Datasheet
ATC-1000 User Manual
ATC-1000 Quick Start Guide
Downloads
ATC-1000 Tool Vcom for Windows
Specifications
Baud Rate
300bps to 230Kbps
Certifications
RoHS, CE
Characters T
7 or 8 data bits
Connector(s)
2, 4 wire RS485, plugable terminal block connector
Control Signals
CTS, RTS
Data Control T
RS485 conversion offers automatic data control
Dimensions
95 x 65 x 25mm
Flow Control
RTS/CTS
Interface(s)
- Serial: RS232/422/485 3-in-1 serial interface
- Network: 10/100M Ethernet, auto detect straight/cross cable
Mounting
Panel Mount, easy to install and fix
MPN
ATC1000
Parity
odd, even, none
Power Supply
Includes AC wall power adapter
Protocols
Supports: TCP/IP, UDP/IP, ARP, ICMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP
Security/Protection
All serial ports have 600W lightning protection
Serial Interfaces
373,369
Serial Types
372,370,371
Stop Bits
1 or 2
Temperature Range
-25 to +70°C (-4 to + 158°F)
