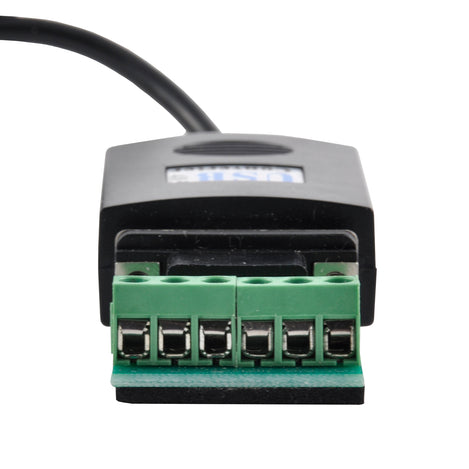

RS422 to USB / RS485 USB Adapter - BF-850 Front
RS485 USB Adapter w/RS422 to USB Support - BF-850
Product Images
RS485 USB Adapter w/RS422 to USB Support - BF-850
$39.95
SKU: GC-RS485USB-01
MPN: BF-850
Manufacturer: Chiyu Technology
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The BF-850 is a RS485/RS422 to USB adapter designed to provide instant connection from Serial interface to PC or server. The device follows USB/RS422 and RS485 standards and policies and is easily installed without turning your PC’s power off.
There is a unique I/O electric auto-control to control the direction of data transfer. No handshake signal is needed to transfer full duplex (RS422) or half duplex (RS485).
The BF-850 can be used in point to point or multipoint applications. In multipoint use, each unit adapter can connect up to 32 RS422/RS485 interface devices.
With the USB Plug-and-Play feature, you simply plug in, follow the instructions of Install Wizard. You don’t have to deal with Card Slots, I/O address, IRQ jumpers, DMA and others when you are connecting the devices. The System will recognize the device and install the drivers automatically.
The RS485USB is an ideal solution for your expanding applications.
Features
- One RS422/485 Port over USB Port
- Easy Serial Port Expansion over USB Port
- Supports 4-wire RS422 and 2-wire RS485 applications
- Supports RS485 Auto Transceiver Turn Around
- Supports USB Bus Power
- Hot Swappable and Plug-and-Play Features
- Compact Size for Critical Applications
Documents and Drivers
Documentation
BF-850 User Manual
Downloads
BF-850 Driver
Specifications
Characters T
7 or 8 data bits
Connection Modes
USB1.1 and USB2.0 Backward Compatible
Connector(s)
DB9/6 Screw Terminal Block
Data Rate
300 baud up to 921.6 Kbps
Dimensions
55 x 36 x 18 mm
Interface(s)
2 modes are selectable: 4-wire RS422 (TXD+/-, RxD+/-), 2-wire RS485 (Data+/-)
MPN
BF-850
Parity
odd, even, none
Product Weight
0.6 oz
Profiles
Serial Port Profile (SPP)
Serial Interfaces
369
Serial Types
370,371
Stop Bits
1 or 2
Supported OS
Supports Windows (Win98SE, ME, 2000, XP, 2003, 2008, Vista, 7, 10)
Temperature Range
-25°C to +70°C (-13°F to +158°F)
Humidity
5% to 90 % (non-condensing)
