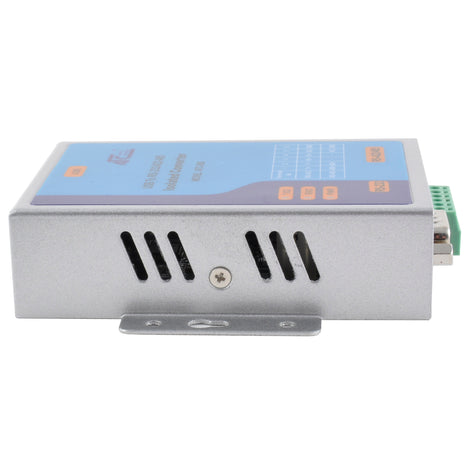

RS232 to USB - ATC-850 Industrial USB to Serial RS232/422/485 Adapter
RS232 to USB - ATC-850 Industrial USB to Serial RS232/422/485 Adapter
Product Images
RS232 to USB - ATC-850 Industrial USB to Serial RS232/422/485 Adapter
$99.94
5.0 stars 5.0 (1) See customer reviews
SKU: GC-ATC-850
MPN: ATC-850
Manufacturer: ATC
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The ATC-850 is an industrial high speed RS232 to USB adapter with support for RS422/RS485 to USB as well. The ATC-850 uses a DB9 male connector for RS232 and supports baud rates from 300 to 460K baud. The terminal block connector is used for the RS422 and RS485 interfaces and supports baud rates from 300 to 921K baud. The USB interface is 1.1 and 2.0 compatible and uses the FTDI high speed serial to USB chip.
Documents and Drivers
Documentation
ATC-850 User's Manual
Downloads
ATC-850 CAD Dimensions
ATC-850 Windows Driver
Specifications
Connector(s)
- RS232 DB9 male connection
- USB-B cable included
CPU
Uses the FTDI serial to USB chip
Dimensions
105 x 85 x 27 mm (not including cable)
Enclosure
Industrial Enclosure for USB to RS232/422/485 converter
Flow Control
RS485 half duplex, auto flow control
Humidity
10% to 90% (non-condensing)
Included in Box
USB 1m USB-A to USB-B cable included
Indicators LED
TX, RX, Power
Interface(s)
USB 1.1 and 2.0 compliant
Isolation
Voltage 3500 VRMS, 500 VDC
MPN
ATC-850
Power Supply
From the USB + 5VDC computer port, <200 mA
Security/Protection
RS485 bus protection 600 W
Serial Interfaces
373,369
Serial Types
372,370,371
Supported OS
- Windows 7 to Windows 11
- Windows Server
Temperature Range
-25°C to +70°C (-13°F to +158°F)
