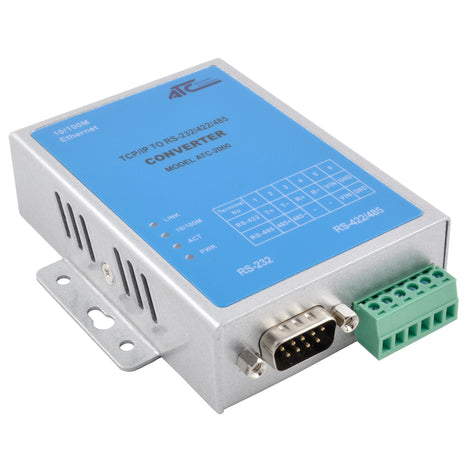

RS232 Ethernet Converter - ATC-2000

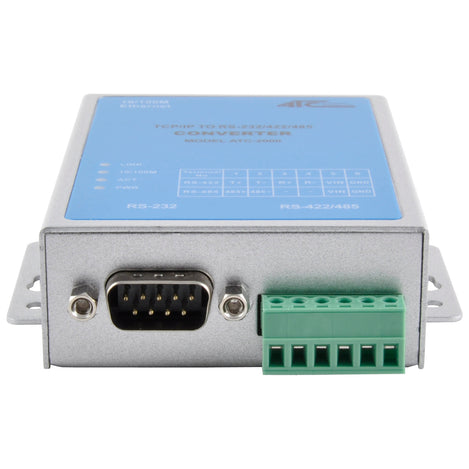

RS232 Ethernet Converter - ATC-2000 Front

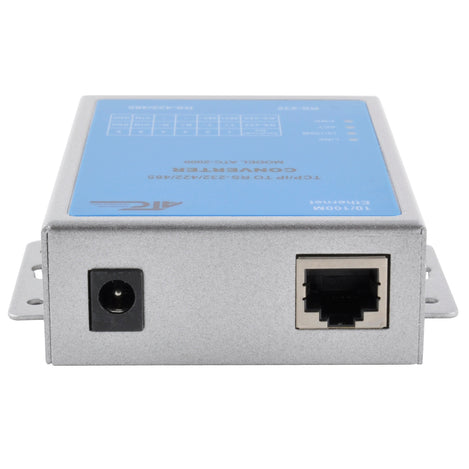

RS232 Ethernet Converter - ATC-2000 Back

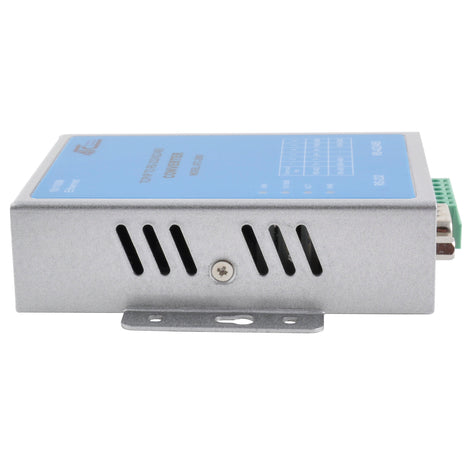

RS232 Ethernet Converter - ATC-2000 Side
RS232 Ethernet Converter - ATC-2000 Included in Box
RS232 Ethernet Converter-ATC-2000 Industrial 1 Port Serial to Ethernet
Product Images
RS232 Ethernet Converter-ATC-2000 Industrial 1 Port Serial to Ethernet
$112.44
SKU: GC-ATC-2000
MPN: ATC-2000
Manufacturer: ATC
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The GC-ATC-2000 is a robust RS232/RS422/RS485 to TCP/IP device server, integrated with advanced network management features. The ATC-2000 is designed to allow industrial equipment to be accessed and controlled via the Intranet or Internet. With its integrated RTOS (Real Time Operating System) and complete TCP/IP protocol stack, the ATC-2000 provides a high performance system for connecting your device to the network. Its configuration utility also makes set-up a snap and eases installation.
The GC-ATC-2000 has a Web Configurator that is easy to use and totally independent of the operating system platform you use.
Documents and Drivers
Documentation
ATC-2000 Datasheet
ATC-2000 Quick Start Guide
ATC-2000 User Manual
ATC-2000 CE Certificate
ATC-2000 RoHS Certificate
Downloads
ATC-2000's VCOM For Win7 win8 win10
ATC-2000's VCOM For Win98 WinXP
Specifications
Baud Rate
Up to 230K
Certifications
RoHS, CE
Characters T
5, 6, 7, 8 data bits
Connector(s)
2, 4 wire RS485, plugable terminal block connector
Control Signals
CTS, RTS
CPU
16 bit processor
Data Control T
RS485 conversion offers automatic data control
Dimensions
95 x 65 x 25mm
Flow Control
XON/XOFF, RTS/CTS
Interface(s)
- Serial: RS232/422/485 3-in-1 serial Interface
- Network: 10/100M Ethernet, auto detect straight/cross cable
Mounting
Panel Mount, easy to install and fix
MPN
ATC2000
Parity
odd, even, none
Power Supply
Includes AC wall power adapter
Protocols
Supports: TCP/IP, UDP, DHCP, PPPoE, Dynamic DNS
Real Timer Operating System
Yes
Security/Protection
All serial ports have 600W lightning protection
Serial Types
RS232, RS422, RS485
Stop Bits
1 or 2
Temperature Range
-40°C to +70°C (-40°F to +158°F)
