DISCONTINUED
Replacement product: GC-RAK7268CV2-US915-LTE, Call to Order or for information

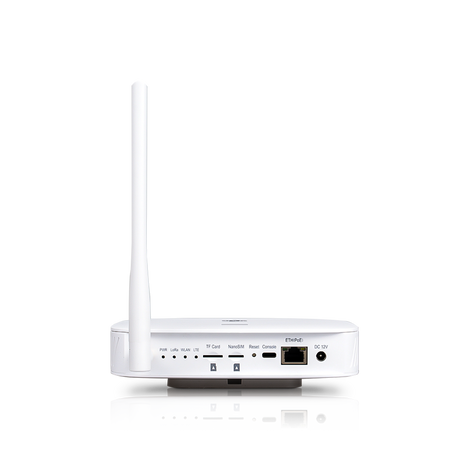

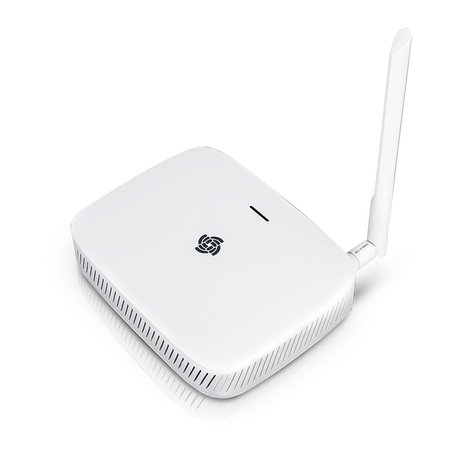

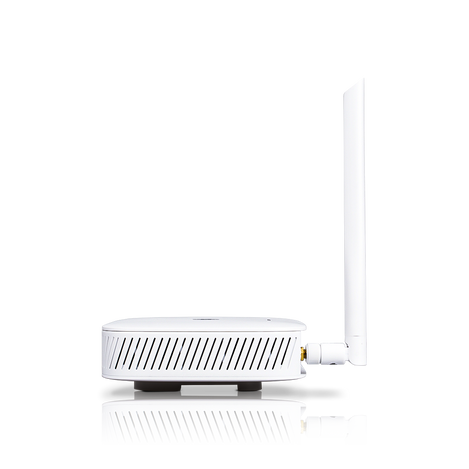

RAK7268 WisGate Edge Lite 2 Gateway: LTE Included

Leave a review

SKU: GC-RAK7268C-US915-LTE

MPN: 706049(EG95-NA)

Manufacturer: RAKwireless Technology Co., Ltd.

LTE Option

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol.  It has built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. Moreover, the gateway supports LTE uplink communication connections (optional).

MQTT Bridge mode is supported with the option for TLS authentication.  This function can use MQTT integrated to third-party platforms.

Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.

The open-source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.

RAK7268 is especially suitable for small and medium-sized deployment scenarios in industry applications, saving the additional cost for server and R&D investment, and has the advantages of high execution efficiency.

Product Inclusion
  • 1pc WisGate Edge Lite 2/2+
  • 1pc LoRa antenna
  • 1set Mounting screws
  • 1set Anchors
  • 1pc Power Adapter


    • Order Summary



    SKU

    LTE Option

    Manufacturer Part # (MPN)
    GC-RAK7268C-US915-LTE LTE RAK7268C (DISCONTINUED)
    GC-RAK7268-US915 No LTE RAK7268 (DISCONTINUED)

    Features

    • Full LoRaWAN Stack support (V 1.0.3) with Semtech SX1302
    • Supports 2.4 GHz Wi-Fi AP for configuration
    • 100M Base-T Ethernet with PoE
    • Multi back-haul with Ethernet, Wi-Fi, Cellular
    • OpenWRT software supports Web UI for easy configuration and monitoring
    • Can integrate with both private (ChirpStack) and public (TTN) network servers
    • TF card for log backup and LoRa frame buffering (in case of backhaul failover)
    • Built-in Network Server for easy deployment of applications and integration of gateways
    • LTE Cat 4 network (optional)

    Specifications

    Antennas

    • LoRa: RP-SMA female connector
    • LTE: Internal antenna
    • Wi-Fi: Internal antenna

    Channels

    • Wi-fi: Operation channels: 2.4 GHz: 1-13
    • LoRa: 8 Channels

    Dimensions

    166 x 127 x 36 mm (6.53 x 5 x 1.41 Inches)

    Frequency

    • Wi-fi: 2.4 GHz (802.11b/g/n)
    • LoRa: EU433/CN470/EU868/US915/AS923/AU915/IN865/KR920

    Indicators LED

    • Power
    • LoRa
    • WLAN
    • Breathing
    • Ethernet

    Material

    Plastic

    Memory

    DDR2 RAM 128 MB

    Mounting

    Wall mounting

    MPN

    706045

    Power Consumption

    12 W (typical)

    Power Source

    • DC 12 V - 1 A
    • PoE (IEEE 802.3 af), 36~57 VDC

    Product Weight

    0.3 kg

    Receiver Sensitivity

    • Wi-fi: -95 dBm (Min)
    • LoRa: -139 dBm (Min)

    Security/Protection

    IP30

    Temperature Range

    -10°C to +55°C (14°F to +131°F)

    Transmit Power

    • Wi-fi: 20 dBm (Max)
    • LoRa: 27 dBm (Max)
