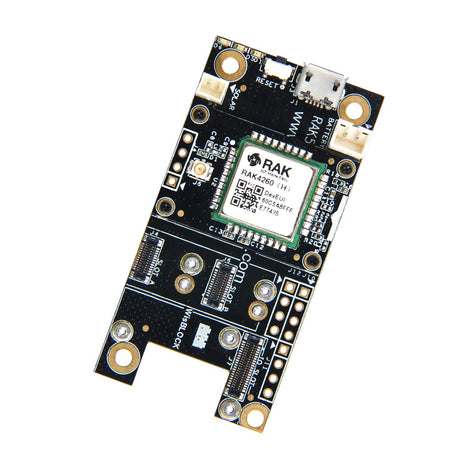

RAK4260 - LPWAN Evaluation Board
RAK4260 - LPWAN Evaluation Board
Product Images
RAK4260 - LPWAN Evaluation Board
$30.55
SKU: GC-RAK4260-Eval-US915
MPN: 316004
Manufacturer: RAKwireless Technology Co., Ltd.
Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description
The RAK4260 LPWAN Evaluation Board is built around the RAK4260 Module. The development board allows for easy configuration with access to all serial and GPIO ports.
The core RAK4260 includes RAK Unified Interface (RUI) for quick and easy development and testing of firmware. It’s compact size, LoRa transceiver, and 32-bit ARM Cortex –MO+ MCU makes it ideal of IoT applications.
Features
- LoRaWAN® 1.0.2
- Low-power consumption
- High level accuracy and stability
- Microchip ATSAMR34J18 SiP
Documents and Drivers
Documentation
RAK4260 LPWAN Module
RAK4260 Evaluation Board Schematics
Specifications
Accuracy
- 32MHz TXCO
- Max Sensitivity (SF12 BW125kHz): -136dBm
CPU
Microchip ATSAMR34J18 SiP
Current
17mA (typical)
Dimensions
6mm x 6mm
Interface(s)
I2C/ SPI/ ADC/ UART/ GPIO
Memory
256KB Flash, 40 KB RAM
MPN
RAK4260-Eval-US915
Power
Max Tx Power: 20dBm
Protocols
LoRaWAN® 1.0.2
