PKV4500 Ethernet TCP / IP to Data Highway Plus (DH+)
PKV4500 Ethernet TCP / IP to Data Highway Plus (DH+)

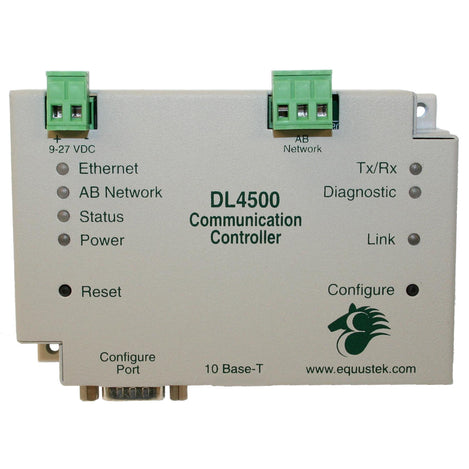

Product Images
PKV4500 Ethernet TCP / IP to Data Highway Plus (DH+): Multiple Computers
$1,695.00
SKU: GC-PKV4500-E-DHP-MM
MPN: DL4500-EDH+ DF1-MultiMaster
Manufacturer: Equustek Solutions Inc.
Ethernet Connection
-
$1,695.00
-
$1,695.00
We Have You Covered
Product Information
Product Description
Order Summary
SKU |
Ethernet Connection |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-PKV4500-E-DHP-MM | Multiple Computers | DL4500-EDH+ DF1-MultiMaster |
| GC-PKV4500-E-DHP-ST | Single Computer | DL4500-EDH+ Standard Tunnel |
Specifications
Baud Rate
DH+/RIO at 57.6, 115.2, and 230.4K baud
Communication
- A-B Channel: Synchronous, DH+/RIO at 57.6, 115.2, and 230.4K baud
- Ethernet Channel: 10 Base–T; TCP/IP
Configuration Methods
Telnet to IP address for configuring communications parameters
Dimensions
26.2 x 105 x 86.3 mm
Enclosure
Metal Enclosure
Indicators LED
- Power-On
- DF1 tunneled over TCP/IP
- A-B Channel operation
- DL4500 Status
- Network Link Status
- DF1 Channel operation
- Diagnostics
Interface(s)
- A-B Channel: Synchronous; SDLC Transformer-coupled
- Ethernet Channel: 10 Base-T
Mounting
Freestanding, DIN Rail mounting clips, or #8 bolts
MPN
DL4500-EDH+ DF1-MultiMaster, DL4500-EDH+ Standard Tunnel
Power Consumption
Less than 2 Watts
Product Weight
0.3 kg
Protocols
- A-B Channel: Allen-Bradley Data Highway Plus (DH+) or Remote I/O (RI/O)
- Ethernet Channel: TCP/IP – 10 Base T
Push Buttons
Reset, Configure/Diagnostics Mode
Temperature Range
- Storage: -40°C to +85°C (-40°F to +185°F)
- Operating: 0°C to +50°C (32°F to +122°F)
Humidity
5% to 95% (non-condensing)
Voltage
9-27VDC
