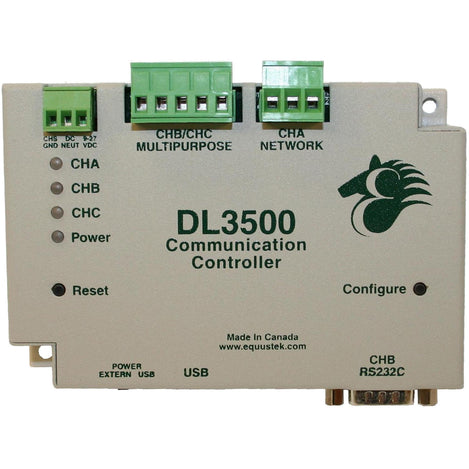

PKV3500 Modbus to DH-485

$1,695.00

Leave a review

SKU: GC-PKV3500-MB-DH485

MPN: DL3500-Modbus/DH485

Manufacturer: Equustek Solutions Inc.

Delivery: Ships within 2-3 business days
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The PKV3500-MB-DH-485 is a Modbus master/slave interface for computers, MMIs, and OEM based applications that require access to a node on AB's DH485 network. Highlights include palm-size portability, DC power, external Din Rail cabinet with Modbus USB or serial functionality to DH-485.

The Modbus/DH-485 can be set to be either a Master or a Slave on the Modbus serial link, as well as communicate using either RTU or ASCII protocols. The Modbus/DH485 in Master Mode can read from and write to registers and coils in any Modbus Slave device connected. Slave Mode allows a Modbus Master device to read from or write to files in a A-B PLC or SLC connected to the DH485 network. DL3500-Modbus

Connect a Modicon PLC to other PLCs and HMI/MMI devices via a PKV3500


Connect a PLC tp other PLCs and HMI/MMI devices via the PKV3500 and a BM85 Bridge Mux



Serial Interfacing:
CHA - Isolated DH-485
CHB - Serial 300 b to 230.4 Kb or USB Interface

Specifications

Communication

  • Channel A: Isolated DH-485
  • Channel B: Serial 300 b to 230.4 Kb or USB

Connector(s)

  • CHA: 3-pin DH-485
  • CHB: 9-pin RS232, 5-pin RS422/RS485, and USB
  • Power: 3-pin Miniature Phoenix Euro

Dimensions

30.4 x 120.7 x 81.3 mm

Enclosure

Metal Enclosure

Indicators LED

Power-On, Communications

Mounting

Freestanding, DIN Rail mounting clips, or #8 bolts

MPN

DL3500-Modbus to DH485

Power Consumption

Less than 2 Watts

Product Weight

0.194 kg

Push Buttons

Reset, Configure/Diagnostics Mode

Temperature Range

  • Storage: -40°C to +85°C (-40°F to +185°F)
  • Operating: 0°C to +50°C (32°F to +122°F)

Humidity

5% to 95% (non-condensing)
