DL3500 DF1 to Data Highway Plus (DH+)
$1,595.00
5.0 stars 5.0 (1) See customer reviews
SKU: GC-PKV3500-DF1-DHP
MPN: DL3500-DF1/DH+
Manufacturer: Equustek Solutions Inc.
We Have You Covered
Product Information
Product Description

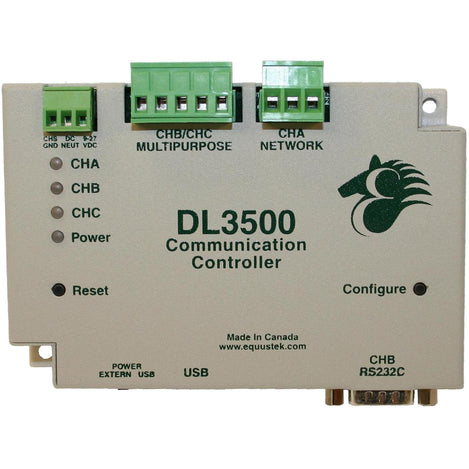

The DL3500-DH+/DF1 is a low cost, compact alternative to Allen-Bradley's 1770-KF2. It also provides the same functionality as the 1784-P(KTX), 1784-PCMK or SST 5136-SD. The DL3500 converts A-B DF1, serial protocol to A-B DH+ network protocol providing a serial interface to DH+ for computers, modems and OEM equipment.
Applications include PLC programming and graphical user interfaces (GUIs and MMIs) such as RSLINX, RSLOGIX, Wonderware, Kepare, Intellution, Citect, etc. DL3500-DF1
Serial Interfacing:
CHA - DH+
CHB - Serial 300 b to 230.4 Kb or USB Interface
Documents and Drivers
Documentation
DL3500 Specifications
DL3500 User Manual
DL3500 Quickstart Guide
Configuration with Wonderware’s InTouch MMI software Package App Note
Allen Bradley 1784 U2DHP Driver using Equustek DL3500 DF1 DH+
Specifications
Communication
- Channel A: DH+
- Channel B: Serial 300 b to 230.4 Kb or USB
Connector(s)
- CHA: 3-pin DH+
- CHB: 9-pin RS232, 5-pin RS422/RS485, and USB
- Power: 3-pin Miniature Phoenix Euro
Dimensions
30.4 x 120.7 x 81.3 mm
Enclosure
Metal Enclosure
Indicators LED
Power-On, Communications
Mounting
Freestanding, DIN Rail mounting clips, or #8 bolts
MPN
PKV3500-DF1-DHP
Power Consumption
Less than 2 Watts
Product Weight
0.194 kg
Push Buttons
Reset, Configure/Diagnostics Mode
Storage Specifications
Temperature: -40°C to +85°C (-40°F to +185°F)
Temperature Range
- Operating: 0°C to +50°C (32°F to +122°F)
- Humidity: 5% to 95% non-condensing
