DL3500 ASCII to Data Highway Plus (DH+)
DL3500 ASCII to Data Highway Plus (DH+)
Product Images
DL3500 ASCII to Data Highway Plus (DH+)
$1,595.00
SKU: GC-PKV3500-ASCII-DHP
MPN: DL3500-ASCII/DH+
Manufacturer: Equustek Solutions Inc.
We Have You Covered
Product Information
Product Description

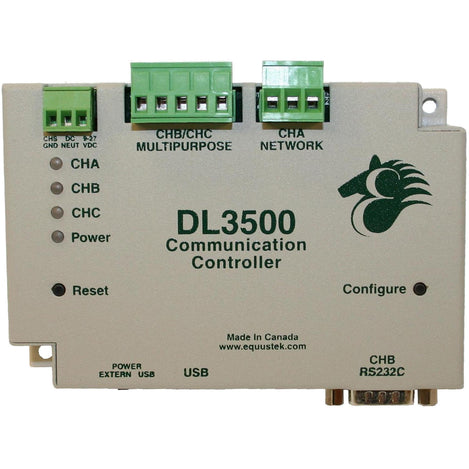

The DL3500 facilitates ASCII data transfer to any PLC including models without an ASCII port, such as A-B’s ControlLogix. A block of data is temporarily stored in the 240-byte buffer until the buffer is filled or an ASCII carriage return is detected in the data. Once the data is terminated, the bytes are transmitted to the PLC's integer files in DH+ protocol format. All bytes are re-transmitted in the order they were received minus the carriage return.
Serial Interfacing:
CHA - DH+
CHB - Serial 300 b to 230.4 Kb or USB Interface (ASCII)
Documents and Drivers
Documentation
DL3500-ASCII/DH+ User Manual
Specifications
Communication
- Channel A: DH+
- Channel B: Serial 300 b to 230.4 Kb or USB
Connector(s)
- CHA: 3-pin DH+
- CHB: 9-pin RS232, 5-pin RS422/RS485, and USB
- Power: 3-pin Miniature Phoenix Euro
Dimensions
30.4 x 120.7 x 81.3 mm
Enclosure
Metal
Indicators LED
Power-On, Communications
Mounting
Freestanding, DIN Rail mounting clips, or #8 bolts
MPN
DL3500 ASCII to DH+
Power
DC: 9-27
Power Consumption
Less than 2 Watts
Product Weight
0.194 kg
Push Buttons
Reset, Configure/Diagnostics Mode
Storage Specifications
Temperature: -40°C to +85°C (-40°F to +185°F)
Temperature Range
- Operating: 0°C to +50°C (32°F to +122°F)
- Humidity: 5% to 95% (non-condensing)
