PCAN-PCI Express FD: 4 Channel

$449.00

Regular price: $455.00

Leave a review

SKU: GC-CAN-PCI-E-FD-4

MPN: IPEH-004040

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

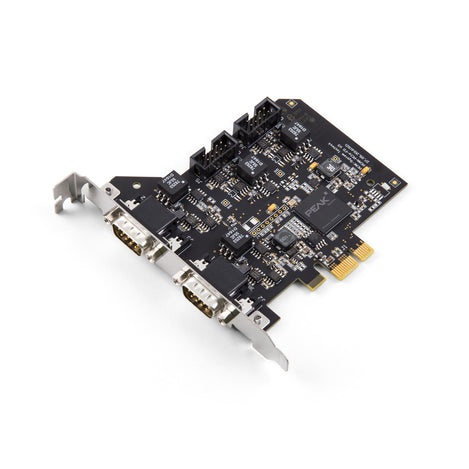

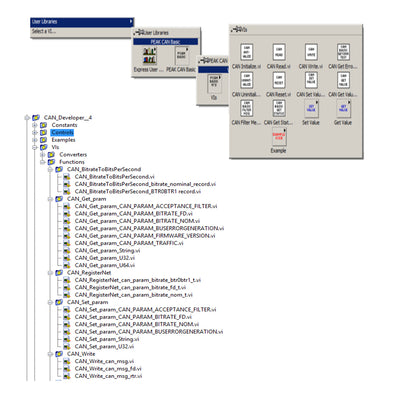

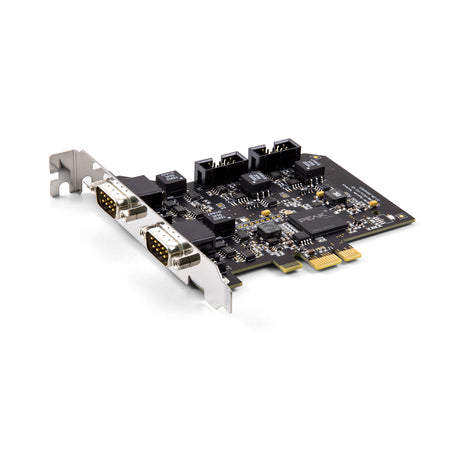

The PCAN-PCI Express FD card with 4 channels uses PCI Express slots to connect a PC to a CAN FD or a Classic CAN network. The first 2 DB9 channels are on the card itself, and the other 2 DB9 channels come out to a second slot bracket and connect to the card via ribbon cables. The card comes with free PCAN-View Windows software, as well as with the PCAN-Basic API. Advanced software and APIs are available.

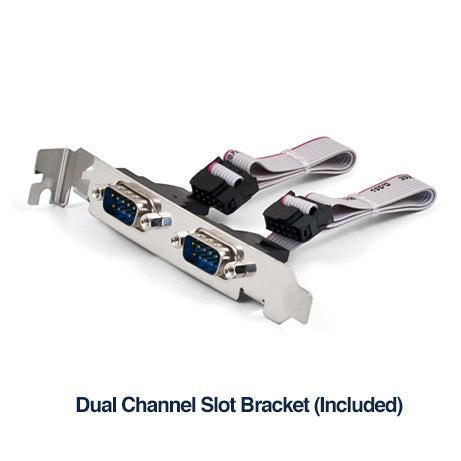

Dual Channel Slot Bracket for PCAN-PCI Express FD Card

This device offers an increased bandwidth for data transfers capable of up to 64 data bytes per CAN FD frame and transmits with a bit rate up to 12 Mbit/s. With galvanic isolation, the device is able to achieve up to 500 Volts between a computer and CAN sides.

The CAN FD is downward-compatible to the CAN 2.0 A/B standard and therefore can be used with existing networks.

Features

  • PC plug-in card (PCIe x1) for PCI Express slots
  • PCIe data transfer via bus master DMA
  • DMA memory access operations with 32- and 64-bit addresses
  • Extended operating temperature range
  • High-speed CAN channels (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  • CAN termination can be activated through a solder jumper, separately for each CAN channel
  • Measurement of bus load including error frames and overload frames on the physical bus
  • Induced error generation for incoming and outgoing CAN messages
  • 5-Volt supply to the CAN connection can be connected through a solder jumper
  • CAN FD support for ISO and Non-ISO standards switchable
  • FPGA implementation of the CAN FD controller

Documents and Drivers

Documentation

PCAN-PCI Express FD User Manual

Downloads

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

PCI-Express FD Package

PEAK-System PCAN DOWNLOAD SUPPORT

Specifications

Connector(s)

  • PCI Express x1 (1 lane)
  • D-Sub (m), 9 pins Pin assignment according to specification CiA® 303-1

Controller(s)

FPGA implementation

Dimensions

121 x 114 mm (H x W)

EMC Directive

  • Directive 2014/30/EU
  • DIN EN 55024:2016-05
  • DIN EN 55022:2011-12

Highspeed CAN

4 High-speed CAN Channel (ISO 11898-2)

Interface(s)

  • PCAN-Basic
  • CAN FD

MPN

IPEH-004040

Power Supply

Max. 200 mA, Max. 100 mA

Product Weight

73 g

Protocols

  • CAN FD ISO 11898-1:2015
  • CAN FD non-ISO
  • CAN 2.0 A/B

Software

Supports Windows 11 & 10

Temperature Range

  • Storage: -40 to 125 °C ( -40 to 257 °F)
  • Operating: -40 to 85 °C (-40 to 185 °F)

Humidity

15 - 90 %, not condensing, relative

Transceiver

NXP TJA1044GT
