PCAN-MicroMod FD Evaluation Board

$259.00

Regular price: $275.00

Leave a review

SKU: GC-CAN-MICROMOD-FD-EVAL-BRD

MPN: IPEH-003081

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

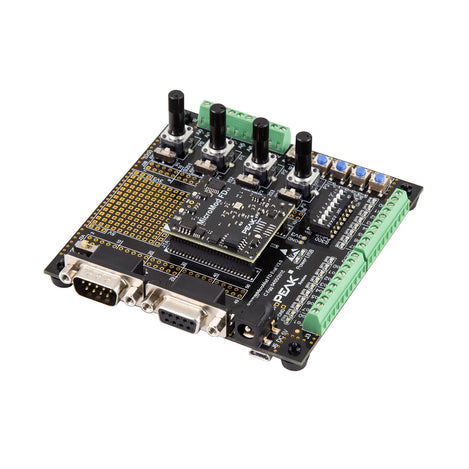

The PCAN-MicroMod FD Evaluation Board features the compact PCAN-MicroMod FD Module. The PCAN-MicroMod provides integration of I/O functionality with CAN and CAN FD networks allowing for customized OEM designs. With the evaluation board, the user is able to access the resources of attached MicroMod CPU for circuit testing and configuration checks.

With the provided Windows® software, configurations are transferred to the CPU via the CAN bus creating an independent CAN node. The software includes I/O mapping to CAN IDs and function blocks for processing data for both analog and digital I/O signals.


PCAN-MicroMod FD Evaluation Board includes:

  • PCAN-MicroMod FD Module
  • PCAN-MicroMod FD Evaluation Board
  • USB Connector Cable
  • PCAN-MicroMod FD Configuration for Windows® 10, 8.1, 7


*Requires PEAK CAN Interface.

Features

  • CAN bus connection via D-Sub, 9-pin (CiA® 303-1)
  • Complies with CAN specifications 2.0 A/B and FD
  • Switchable CAN termination of 120 Ohm
  • Pick-offs for all pins of the PCAN-MicroMod FD
  • Low-side switches for the digital outputs
  • DIP switches for status change of the digital inputs
  • Protected digital inputs
  • LEDs for digital inputs and outputs
  • 4 potentiometers for analog inputs
  • Soldering fields for individual additional wiring
  • RS-232 connection with V.24 signal levels for direct access to the microcontroller
  • 4-bit rotary coding switch for setting the module ID
  • Configuration via the CAN bus with the Windows software PCAN-MicroMod FD Configuration
  • NXP LPC54618 microcontroller with Arm® Cortex® M4 core
  • Firmware upload via CAN, USB, or RS-232; switchable via 3 buttons
  • Reset button for restarting the board
  • Voltage supply 5 V via Micro-USB connection or power supply unit

Documents and Drivers

Documentation

PCAN-MicroMod FD CPU User Manual

PCAN-MicroMod FD Evaluation Board Manual

Downloads

PCAN-MicroMod FD Configuration

PCAN-Flash

PEAK-System PCAN Download Support

Specifications

Channels

1 CAN FD channel

Connector(s)

  • Supply socket for barrel plug 5.5 mm outside / 2.5 mm inside
  • Micro USB socket

CPU

NXP LPC54618, Arm® Cortex® M4 core

Data Rate

  • Nominal bitrates: 20 kbit/s - 1 Mbit/s
  • CAN FD bitrates: 20 kbit/s - 10 Mbit/s

Dimensions

100 mm x 102 mm

Firmware

Configuration via reserved CAN ID 7E7h

Humidity

15% - 90% (not condensing)

Indicators LED

Digital inputs and outputs

Input/Output

Inputs:

  • Digital: 8
  • Analog: 8, 0 - 3 V


Outputs:

  • Digital: 8
  • Frequency: 2

MPN

IPEH-003081

Power Consumption

max. 300 mA

Power Supply

5 V DC

Product Weight

  • With PCAN-MicroMod FD Module: 92 g
  • Without PCAN-MicroMod FD Module: 83 g

Specifications

ISO 11898-2, CAN 2.0 A/B and CAN FD

Temperature Range

  • Operating: 0ºC to 85ºC (32ºF to 185ºF)
  • Storage: -40ºC to 100ºC (-40ºF to 212ºF)

Trasceiver

Microchip MCP2558FD
