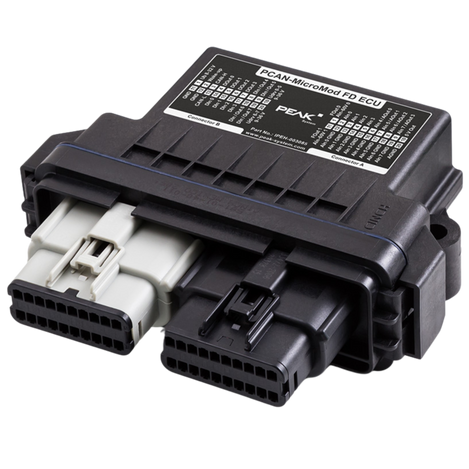

PCAN-MicroMod FD ECU - Universal, Configurable Control Unit, I/O & CAN FD

$595.00

Leave a review

SKU: GC-CAN-MICROMOD-FD-ECU

MPN: IPEH-003085

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The PCAN-MicroMod FD ECU is a universal control unit for the integration of custom accessories in automotive applications. For this purpose, it provides a CAN FD connection as well as a mix of analog and digital I/Os. With its tough casing and two automotive connectors, it is designed for use in utility and heavy duty vehicles under harsh conditions.

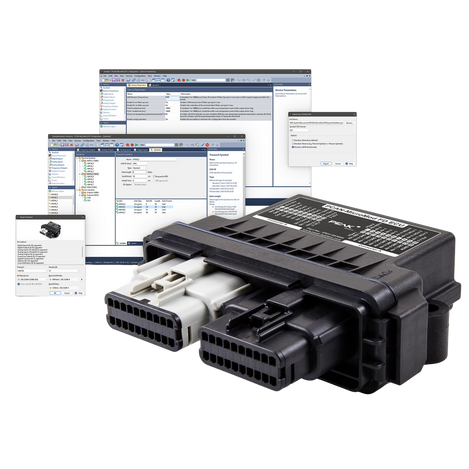

PCAN-MicroMod FD products are configured with a free Windows® software. In addition to simply mapping I/Os to CAN IDs, function blocks for processing the data are also available. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an autonomous CAN node.

NOTE:  Requires the use of a PEAK CAN interface. View list of interface products available (sold separately).


Package Contents:

  • PCAN-MicroMod FD ECU

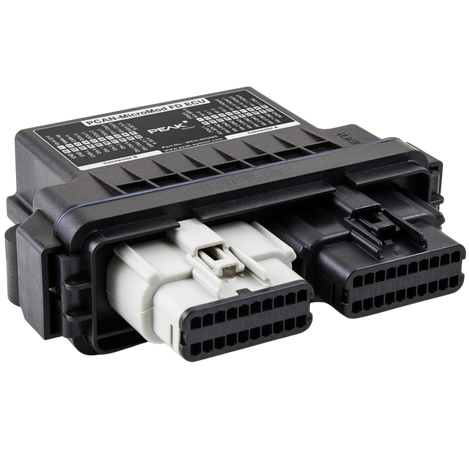

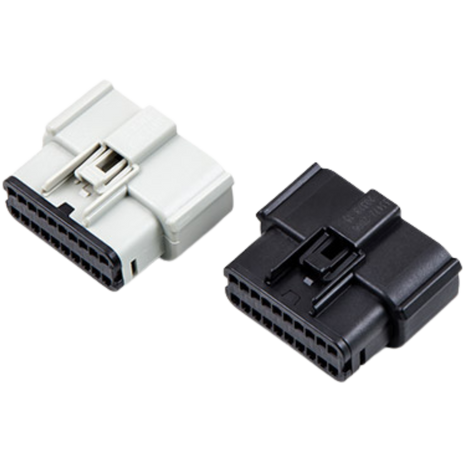

  • 2 mating connectors (1 black and 1 light gray)
  • PCAN-MicroMod FD Configuration for Windows®
  • Manual in PDF format

Features

  • Module with integrated PCAN-MicroMod FD
  • High-speed CAN connection (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • Wake-up by CAN bus or by separate input
  • 4 digital inputs
  • 8 digital outputs with High-side switches.
  • 8 analog inputs, 4 alternatively usable as analog output
  • 2 frequency outputs
  • Connections for CAN, I/O, and power supply via two 20-pole automotive connectors
  • Plastic casing with increased Ingress Protection IP67 and flange
  • Operating voltage 8 to 32 V; suitable for use in 12 and 24 V vehicle electrical systems
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
  • E1 type approval


Documents and Drivers

Documentation

PCAN-MicroMod FD ECU Connectors & Pinout Information

PCAN -MicroMod-FD-ECU User Manual

PCAN-MicroMod-FD User Manual

PCAN-MicroMod FD Configuration Tutorial

Downloads

PCAN-MicroMod FD Products Configuration Software (Windows® 11 (x64/ARM64), 10 (x64)

PEAK-Flash 2
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (x64/ARM64), 10 (x64).

Specifications

Protocols

CAN FD ISO 11898-1:2015, CAN 2.0 A/B

Physical transmission

ISO 11989-2 (High-speed CAN)

Transceiver

NXP TJA1043

Bit Rates

  • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 10 Mbit/s
  • CAN bit rates from 40 kbit/s up to 1 Mbit/s

Supported clock frequencies

20 MHz, 40 MHz, 80 MHz

Dielectric strength

± 30 V permanent, ± 30 kV ESD

Operating voltage Ub

8 to 32 V DC, 12 V or 24 V nominal

Current consumption

  • Typical Operation:  150 mA at 12 V, 100 mA at 24 V
  • Max Operation: 5 V Out and AOut active):  600 mA at 12 V, 450 mA at 24 V
  • Standby: approx. 25 μA at 12 V, approx. 30 μA at 24 V

Enclosure

  • Plastic casing with increased Ingress Protection IP67 and flange
  • IP67 - Ingress protection (ISO 20653)

Dimensions

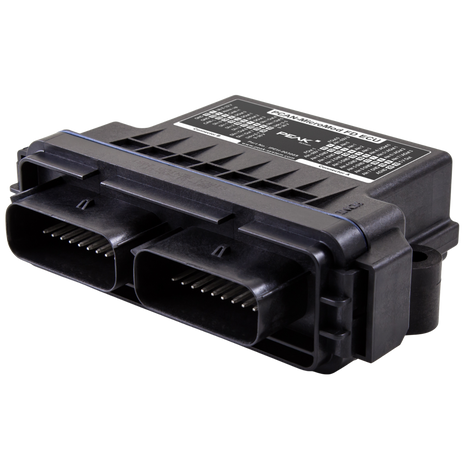

  • Without mating connectors: 130.3 x 94.9 x 42.3 mm (5.1 x 3.7 x 1.7 in)
  • With mating connectors: 130.3 x 112.9 x 42.3 mm (5.1 x 4.4 x 1.7 in)

Weight

  • Without mating connectors: 205 g (0.45 lb)
  • With mating connectors and crimp contacts: 270 g  (0.46 lb)

Connections

CAN, I/O, and power supply:  20-pole automotive connector

Temperature

  • Operating:  -40°C ~ 85°C (-40°F ~ 185°F)
  • Storage & transportation:  −40 to +100 °C (−40 to +212 °F)
  • Relative humidity:  15 to 90 %, not condensing

Conformity

RoHS -

  • EU Directive 2011/65/EU (RoHS 2) + EU Directive 2015/863/EU
  • (amended list of restricted substances)
  • DIN EN IEC 63000:2019-05

EMC - EU Directive 2014/30/EU, DIN EN 61326-1:2022-11

E1 type approval - E1 10 R - 06 10298

Digital I/O

  • Inputs,  4 digital, pull-up or pull-down configurable
  • Outputs:  8 digital with High-side switches.

Frequency outputs

  • 2 frequency outputs
  • Frequency range: 0.1 Hz to 20 kHz
  • Voltage load:  6 to 36V

Analog Inputs

  • 8 inputs, Resolution 16 bit,  Measuring range adjustable: ±2.5 V, ±5 V, ±10 V, ±20 V
  • 4 can alternatively be used as analog output, Resolution 12 bit, Voltage range adjustable: 0 to 5 V or 0 to 10 V
