PCAN-M.2 - CAN & CAN FD Interface for M.2 (PCIe): 1 Channel

$319.00

5.0 stars 5.0 (1) See customer reviews

SKU: GC-CAN-M2-1

MPN: IPEH-004083

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

Select Channels

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The PCAN-M.2 is a compact plug-in card that uses the M.2 interface (PCIe) to connect a single-board computer (SBC) or embedded PC to a CAN /CAN FD network. The card offers a galvanic isolation up to 300 Volts and is available as a single, dual, or four-channel.

The device includes PCAN-View software for monitoring and the PCAN-Basic API for development of custom applications.

The PCAN-M.2 supports the CAN FD (Flexible Data rate) standard with a higher bandwidth of 64 data bytes per CAN FD frame and bit rates up to 12Mbits/s. It can be used in existing CAN networks and is downward-compatible to the CAN 2.0 A/B standard. In this instance, the CAN FD extensions are not applicable.



Order Summary

Product Image

SKU

Channels

Manufacturer Part # (MPN)

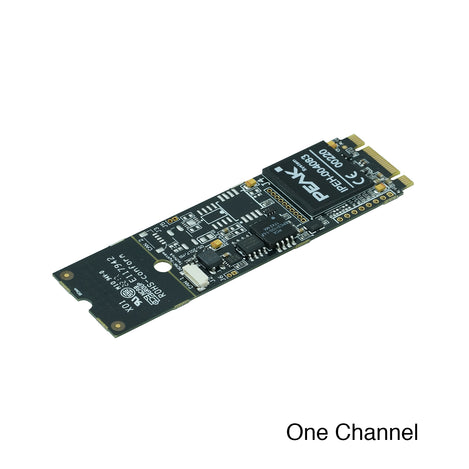

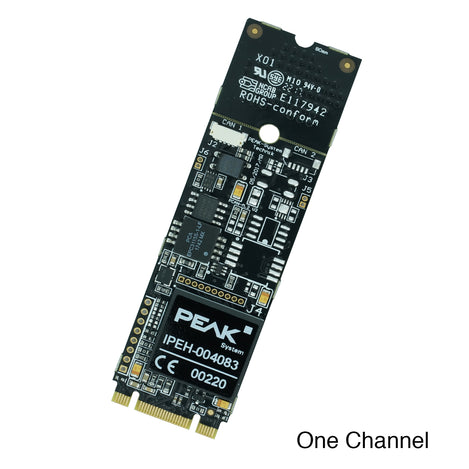

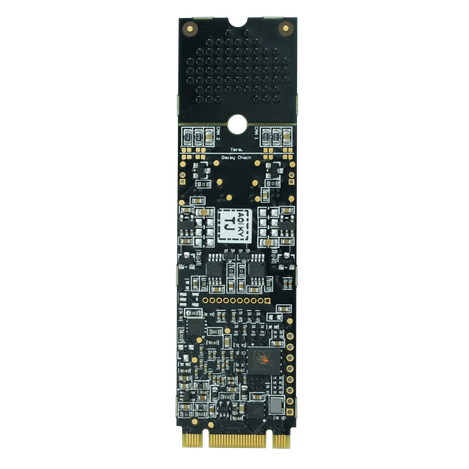

GC-CAN-M2-1 Image GC-CAN-M2-1 1 Channel IPEH-004083

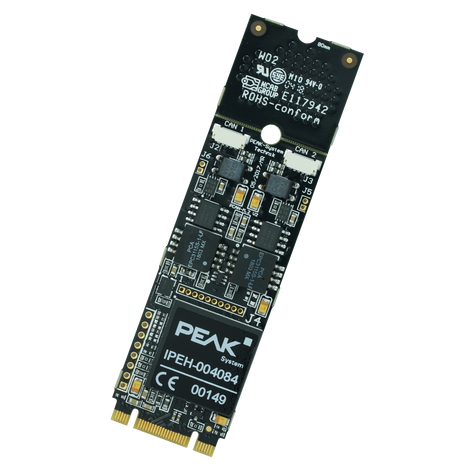

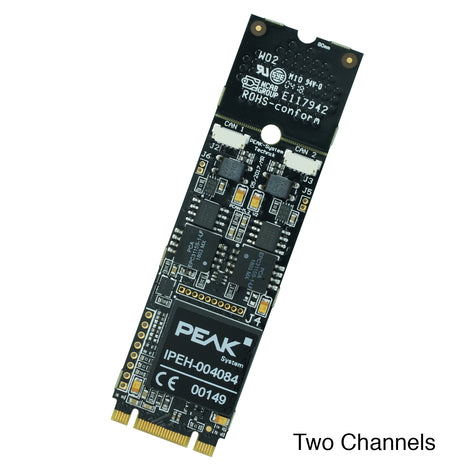

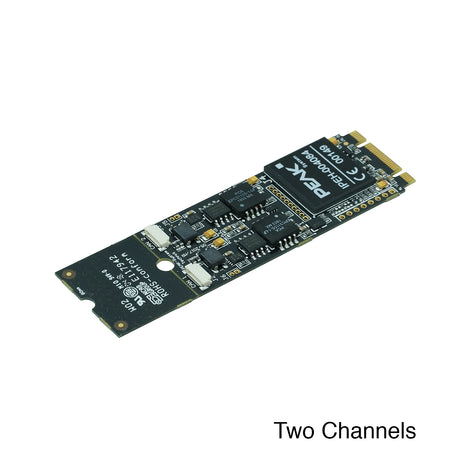

GC-CAN-M2-2 Image GC-CAN-M2-2 2 Channels IPEH-004084

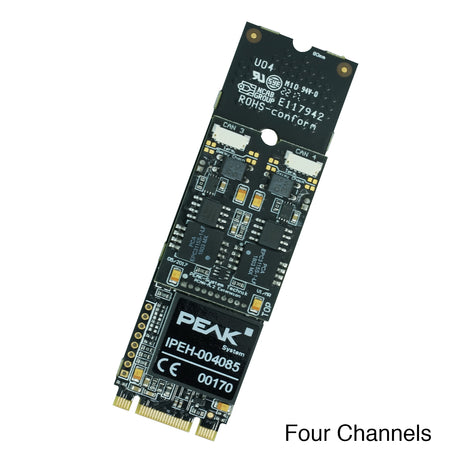

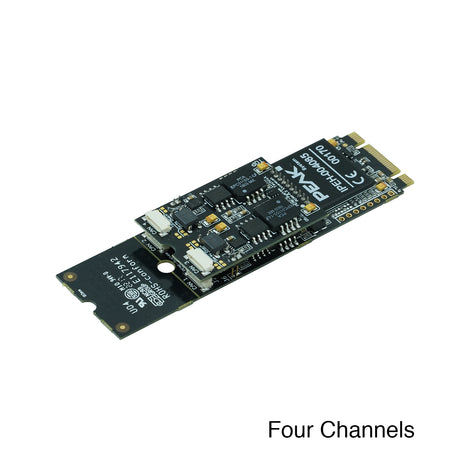

GC-CAN-M2-4 Image GC-CAN-M2-4 4 Channels IPEH-004085

Features

  • CAN interface M.2 (PCIe)
  • Galvanic isolation up to 300 V (for each channel)
  • Meets CAN 2.0 A/B and FD standards
  • PCIe data transmission via bus master DMA
  • DMA memory accesses with 32 and 64 bit addresses
  • 9 Pin D-Sub connector (CiA® 303-1)
  • FPGA implementation of the CAN FD controller
  • Microchip CAN transceiver MCP2558FD
  • CAN FD support for ISO and Non-ISO standards switchable
  • CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 12 Mbit/s
  • CAN bit rates from 20 kbit/s up to 1 Mbit/s
  • CAN termination can be activated through a solder jumper, separately for each CAN channel
  • Measurement of bus load including error frames and overload frames on the physical bus
  • Induced error generation for incoming and outgoing CAN messages

Documents and Drivers

Documentation

PCAN-M.2 User Manual

Downloads

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

PEAK-System PCAN DOWNLOAD SUPPORT

Specifications

Certifications

CE

Channels

1, 2, or 4 CAN Channels (ISO 11898-2)

Connector(s)

D-Sub : 9 pins

Controller(s)

FPGA implementation

Dimensions

  • Single Channel: 22 x 80 x 4.6 mm
  • Dual Channel: 22 x 80 x 4.6 mm
  • Four Channel: 22 x 80 x 10.2 mm

Highspeed CAN

ISO 11898-2

Interface(s)

CAN interface M.2 (PCIe)

Isolation

Up to 300 V (for each channel)

MPN

IPEH-004083, IPEH-004084, IPEH-004085

Pinout

CiA® 303-1

Pins

9

Power Consumption

  • Single Channel: max. 450 mA
  • Dual Channel: max. 550 mA
  • Four Channel: max. 750 mA

Power Supply

3.3 V

Product Weight

  • Single Channel: 6 g
  • Dual Channel: 6 g
  • Four Channel: 10 g

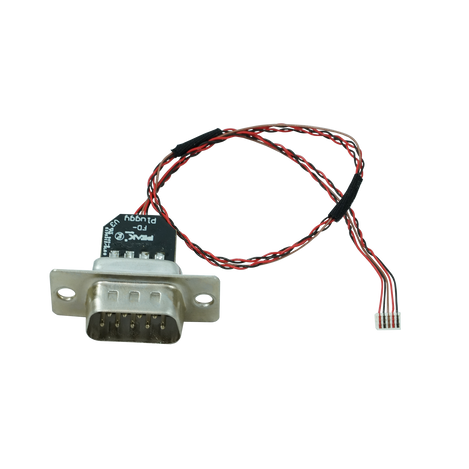

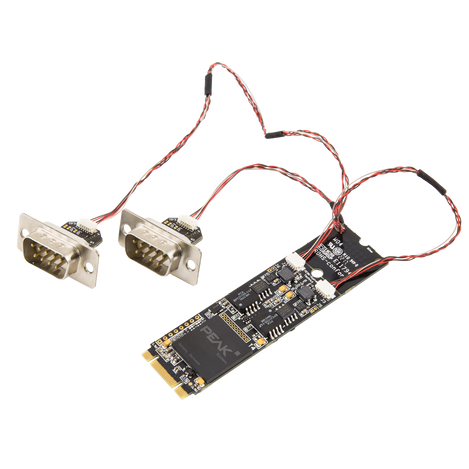

  • Cable for D-Sub Connection: 7g (per cable)

Protocols

CAN FD ISO 11898-1:2015, CAN FD non-ISO, CAN 2.0 A/B

Software

Driver: Windows 11 & 10

Tools: PCAN-View for Windows

SDK: PCAN-Basic API

Specifications

CAN 2.0 A/B and FD standards

Temperature Range

Operating: -40ºC to 85ºC (-40ºF to 185ºF)

Storage: -40ºC to 100ºC (-40ºF to 212ºF)

Transceiver

MCP2558FD
