This product is discontinued and no longer available.

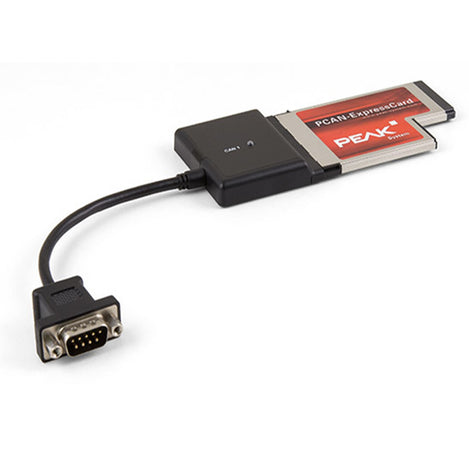

PCAN-ExpressCard - 1 Channel CAN Express Card Adapter
CAN Express Card Adapter
PCAN-ExpressCard - 1 Channel CAN Express Card Adapter
Product Images
PCAN-ExpressCard - 1 Channel CAN Express Card Adapter: 1 Channel / No Isolation
SKU: GC-CAN-EXPRESS-1
MPN: IPEH-003000
Manufacturer: Peak System Technik
Select Channels / Isolation
-
$239.00
-
$349.00
We Have You Covered
Product Information
Product Description
The PCAN-ExpressCard format plugs directly into you laptop computer and allows you to monitor a CAN network, write a CAN program and communicate with CAN devices.
This adapter has 1 CAN channel and plugs into the Laptop EXPRESS CARD bus directly, 100% Plug-n-Play. Available with or without isolation.
Order Summary
SKU |
Channels/Isolation |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-CAN-EXPRESS-1 | 1 Channel / No Isolation | IPEH-003000 |
| GC-CAN-EXPRESS-1-ISO | 1 Channel / 300V Isolated | IPEH-003002 |
Features
- Baud rates up to 1MBaud
- CAN is connected via a 9-pin SUB-D as defined by the CiA DS102-1 standard
- CAN 2.0A (11-bit ID standard frames) and 2.0B (29-bit ID extended frames)
- Supports all interrupt and port addresses configurations of the EXPRESS interface
- Select isolation option if you need 500V isolation
- Complete control of the SJA1000 CAN controller
Documents and Drivers
Documentation
PCAN-ExpressCard User Manual
Downloads
PCAN-ExpressCard Device Driver Setup for Windows
PCAN-ExpressCard Linux Drivers
CAN Download Support
View the available Peak System downloads:
Specifications
Baud Rate
CAN: max. 1 Mbit/s
Certifications
CE, RoHS
Channels
1
Controller(s)
CAN: NXP / Philips SJA1000
Dimensions
116 x 54 x 12 mm
EMC Directive
- EN 55024:2003-10
- EN 55022:2007-04
- EC directive 2004/108/EG
Enclosure
IP30
Interface(s)
- PC: ExpressCard Slot, type ExpressCard/54
- CAN: ISO 11898-2, complies with CiA-recommendation DS 102
IO and IRQ
automatically assigned via "plug n play"
Isolation
300 VDC (optional)
MPN
IPEH-003000, IPEH-003002
Pinout
C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Power Consumption
- 1 channel max. 142 mA (1.5V), 245 mA (3.3V)
- 1 channel isolated max. 142 mA (1.5V), 273 mA (3.3V)
Product Weight
60, 80, 60, 80 g
Software
- Driver: Windows® 0, 8.1, 7 (32/64-bit); Linux (32/64-bit)
- Tools: PCAN-View for Windows®
Specifications
CAN: 2.0A (Standard format) and 2.0B (extended format)
Storage Specifications
Temperature: -30°C to +100°C (-22°F to +212°F)
Temperature Range
- Operating: 0 to 70 °C (32 to 158 °F)
- Humidity: 15% to 90% (non-condensing)
Transceiver
CAN: NXP / Philips PCA82C251
