LX-001 uP, Ethernet, Can, Serial, 256K, 8K Dual Port RAM
LX-001
LX-001 uP, Ethernet, Can, Serial, 256K, 8K Dual Port RAM
Product Images

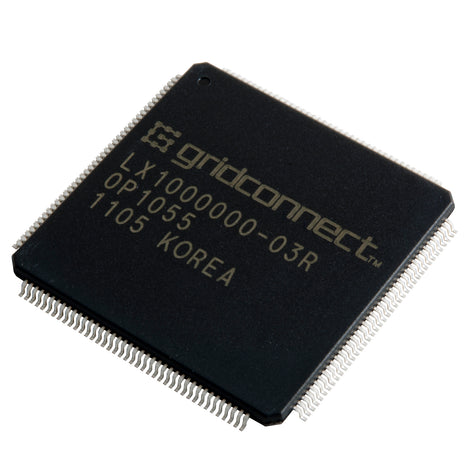

LX-001 uP, Ethernet, Can, Serial, 256K, 8K Dual Port RAM
SKU: GC-LX-001-LF
MPN: LX1000000-03R
Manufacturer: Grid Connect Inc.
We Have You Covered
Product Information
Product Description
The LX is a powerful x186 System-on-a-chip (SOC) that has many features which allows it to be used in embedded communication or co-processor applications. The extended x186 architecture allows for up to 16M bytes of memory and executes most instructions in one clock cycle - 12.5MIPS. The LX has a sister chip called the DSTni EX which is compatible and 3x faster with some different peripherals.
LX-001, GC-LX-001-LF, LX1000000-02R, LX1000000-03R.
Applications:
The LX is perfect for embedded applications that require 10/100 Ethernet and other communication channels like CAN, SPI, or RS232 or RS422/485. With the on-chip 256K bytes of RAM memory applications can be loaded from SPI serial Flash or external Flash/EPROM into the on-chip memory and execute with 0 wait state performance and no external memory devices. External memory can be added to support additional RAM or Flash for a total of up to 16M bytes. The on-chip 8K Dual port memory can be used to talk with a co-processor (DSP).
Development:
Use of all the x86 compilers and tools and code base allows the users to use existing code, use binaries provided, or develop their own software using the Borland or Paradigm development environments.
Support:
We provide complete technical support for this product with knowledgeable engineers that designed and know how to use the product. We offer phone support and on-line chat support during regular business hours.
Documents and Drivers
Documentation
LX-001 Datasheet
DSTni-LX DataBook
Using Paradigm with Windows 7
Specifications
Channels
- 2, 230K baud High performance RS232/422/485 Serial Channels
- 2, 1M baud CAN channels
Controller(s)
- 10/100M Ethernet controller
- SPI controller
- Interrupt Controller
Core
2.5V core
CPU
x186 compatible 48Mhz 16 bit processor
Dimensions
24 x 24 mm
DMA
4
IO Type
2.5 V I/O
Memory
- 256K bytes SRAM on-chip
- 16M bytes of external memory available
- 8K dual port memory
MPN
LX1000000-03R
Pins
160 pin QFP
Pitch
0.5 mm
Temperature Range
Operating: -40°C to +85°C (-40°F to +185°F)
Timers
3
Watchdog Timer
Yes
