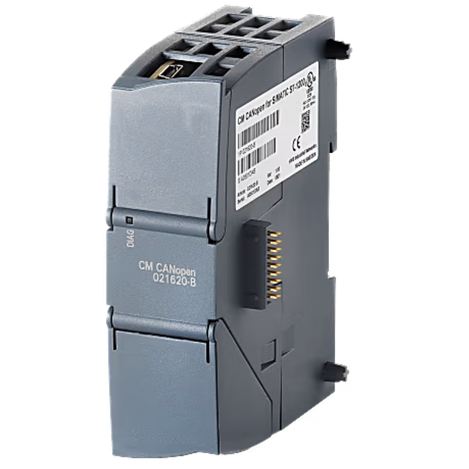

IXXAT CM CANopen module for Siemens S7-1200 systems
CM CANopen is a compact interface plug-in module designed for the integration of CANopen or CAN 2.0A devices with SIMATIC S7-1200 automation systems.
IXXAT CM CANopen module for Siemens S7-1200 systems
Product Images
IXXAT CM CANopen module for Siemens S7-1200 systems
$651.00
SKU: GC-IXT-021620-B
MPN: 021620-B
Manufacturer: Ixxat
We Have You Covered
Product Information
Product Description
The Ixxat CM CANopen is a compact interface plug-in module designed for the integration of CANopen or CAN 2.0A devices with SIMATIC S7-1200 automation systems. It offers a cost-efficient solution to achieve PROFINET connectivity for CANopen-based field devices. This module offers full integration into the Siemens TIA Portal and configuration tool support.
As a CANopen commander/responder (master/slave) module, the CM CANopen module connects any CANopen or CAN 2.0A field device to a SIMATIC S7-1200 PLC, acting as a bridge between the devices.
System expansion supports up to 3 CM CANopen modules per PLC and up to 16 CANopen responder (slave) devices in Commander (master) mode. This support enables scalable system expansion without significant cost increase.
Configuration is simplified by integration into the hardware catalog of the TIA Portal configuration environment. The CM CANopen module can be easily configured as either a commander (master) or responder (slave) module with no additional programming required. For custom protocol implementation, transparent CAN 2.0A is supported.
For easy troubleshooting, integrated LEDs provide comprehensive diagnostic information on module network and I/O status. Galvanic isolation safeguards against overvoltage and protects from potential electrical damage.
Features
- Able to connect 3 modules per CPU
- Connects up to 16 CANopen slave nodes
- 256 byte input and 256 byte output per module
- 3 LEDs provide diagnostic information on module, network and I/O status
- Able to integrate modue in the hardware catalog of the TIA Portal configuration suite
- CANopen configuration via the included CM CANopen Configuration Studio or via any other external CANopen configuration tool
- Complies to the CANopen communication profiles CiA 301 rev. 4.2 and the CiA 302 rev. 4.1
- Supports transparent CAN 2.0A for custom protocol handling
- Pre-made function blocks available for easy PLC programming in TIA portal
Documents and Drivers
Documentation
CM CANopen for SIMATIC S7-1200 Datasheet
CM CANopen Module for SIMATIC S7-1200 User Manual
CM CANopen Module Dimensions Diagram
CM CANopen Module Schematic
Specifications
Content of Delivery
- CM CANopen module
- User manual
- USB configuration cable
- CM CANopen Configuration Studio CD
Available as download
- function blocks
- configuration files
Dimensions (W x H x D)
30 x 100 x 72 mm (1.2 x 4.0 x 2.8 in)
Weight
217 g (0.48 lbs)
Mounting
DIN rail mount (bracket included)
Current Consumption Max value at Vcc nom (mA)
200 mA (5 V DC)
Input Voltage (V)
5 V DC +/-10%
Isolation
Galvanic isolation on sub-network interface
Temperature
- Operating: 0 °C ~ 60°C (32°F ~ 140°F)
- Storage: -40°C ~ 70°C (-40°F ~ 158°F)
- Relative Humidity: 5 to 95 %, non-condensing
Enclosure
IP20, Plastic
Configurtion
The Ixxat CM CANopen module is integrated into the TIA Portal. The CANopen network is configured easily via USB connection through the CM CANopen Configuration Studio tool, with software and TIA files available for free download. Configurations are uploaded to the module via USB and stored in its non-volatile memory
Certificates & Standards
- CE
- UL
- WEEE Category: IT and telecommunications equipment
- ETIM Classification: EC001604
- Protection Class IP: IP20
Connectors / Input / Output
1 x Mini USB port, 1 x D-Sub 9 connector
CAN Features
- CAN Mode: Transparent CAN 2.0A mode
- CAN Baud Rate: 20 kBit/s to 1 Mbit/s
CAN FD Features
- CANopen Supported Functionality: Connects max. 3 CM CANopen modules per CPU & max. 16 CANopen responder nodes per module in commander mode
- CANopen Input Data Size: 256 byte input per module
- CANopen Output Data Size: 256 byte output per module
