Industrial Serial Ethernet RS232 Converter, 3 DI, 3 DO

$99.00

5.0 stars 5.0 (2) See customer reviews

SKU: GC-CYT-133SC

MPN: CYT-133SC

Manufacturer: Chiyu Technology

Stock Status: Out of stock (more on the way)

Delivery: Order now and we'll deliver when available
Free shipping to the US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

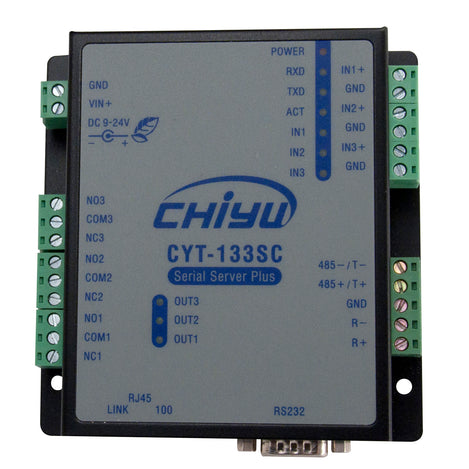

Authorized North America Distributor Stamp CYT-133SC is a device server with 3 digital inputs and 3 digital outputs. It provides a single port Ethernet RS232 or RS485 serial device server that makes your industrial serial devices be IP / Ethernet network enabled. The digital inputs (3) and digital outputs (3) can be used to read or write relays, alarms, and lights. Configuration and firmware upgrade are available using the network. PPPoE & DDNS protocols make the user connect to the Internet without static IP.

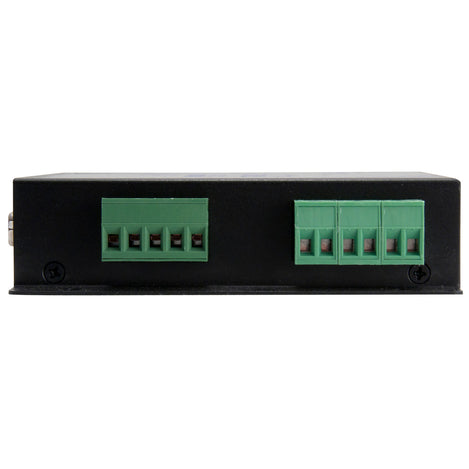

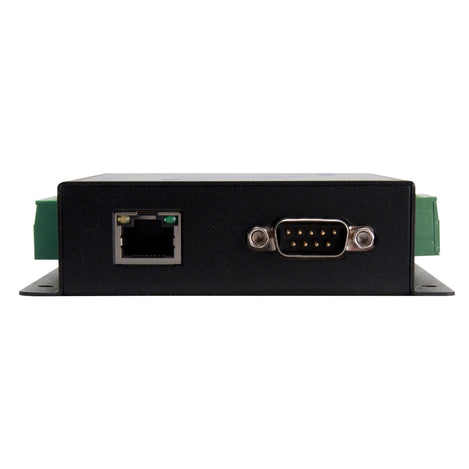

The CYT-133SC is easy to configure using a simple configuration web page. The terminal block is used for digital I/O and RS485 operation. The RS232 connection is a standard DB9 male.The power connection (9-30VDC) can be made using the built in terminal block or via a power supply (not included).

Features

  • DHCP Client
  • PPPoE Over Ethernet
  • Dynamic DNS
  • TCP/UDP server/client support
  • Backup and Restore configuration
  • Full Network Management via Web
  • Auto-negotiating 10/ 100M bps Ethernet
  • Alarm Generation
  • Support alarm system via SMS (Short Message Service) to mobile phone or e-mail to PC
  • Support I/O control to integrate with other system

Documents and Drivers

Documentation

CYT-133SC Datasheet

CYT-133SC Installation Hardware

CYT-133SC User Manual

CYT-133SC IP Search Software Manual

Specifications

Baud Rate

1200 bps - 230.4 Kbps

Certifications

CE

Channel Support

  • Support alarm system via SMS (Short Message Service) to mobile phone or e-mail to PC
  • Support I/O control to integrate with other system

Characters T

5, 6, 7, 8 data bits

Communication

Support alarm system via SMS (Short Message Service) to mobile phone via email SMS or e-mail to PC

Connector(s)

Types: DB9 (female)/ RJ-45

CPU

16 bit CPU, 100 MHz

Dimensions

81 x 103 x 30 mm

Flow Control

XON/XOFF, RTS/CTS

Indicators LED

Power, Serial Transmission, Ethernet Activity

Interface(s)

  • Network: Ethernet 10/100Base-T, half/full duplex
  • RS232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS485 Signals: Data+/-

Management

Support TCP/UDP Server/Client mode. Built-in HTTP/Web server for set up and remote management via any browser easily. Support backup & restore system configuration data.

Memory

256 KB ROM & 768KB SDRAM

MPN

CYT-133SC

Parity

odd, even, mark, space, none

Ports

Serial: 1

Power Consumption

DC 9-30V, 300 mA

Protocols

TCP, IP, UDP, Telnet, ARP, DHCP, ICMP, PPPoE, HTTP, DDNS, SMTP

Security/Protection

  • Magnetic Protected: Ethernet port 1.5 KV
  • Surge Protection: Serial port 15 KV ESD

Stop Bits

1 or 2

Supported OS

Windows XP, Windows 2000, Windows NT, Windows95/98 ME, Linux, UNIX

Temperature Range

  • Storage: -20°C to +85°C (-4°F to +185°F)
  • Operating: 0°C to +65°C (32°F to +149°F)

Humidity

5% to 95% RH

Watchdog Timer

Yes
