Ethernet IO - Isolated with 12 DI and 6 DO, plus RS232 & 485 Ports

Leave a review

SKU: GC-BF-2300

MPN: BF-2300

Manufacturer: Chiyu Technology

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

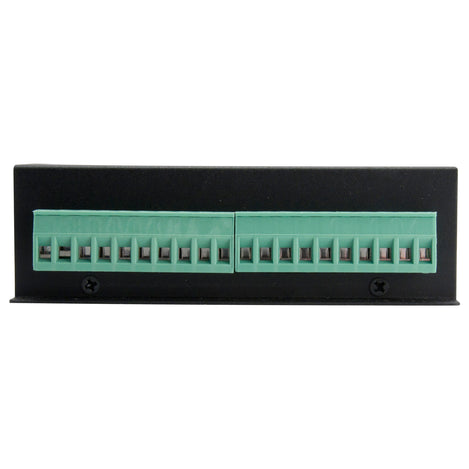

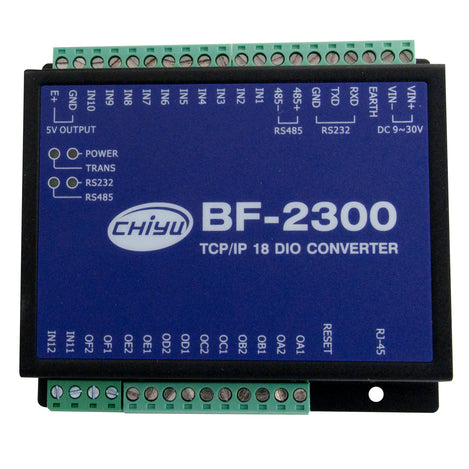

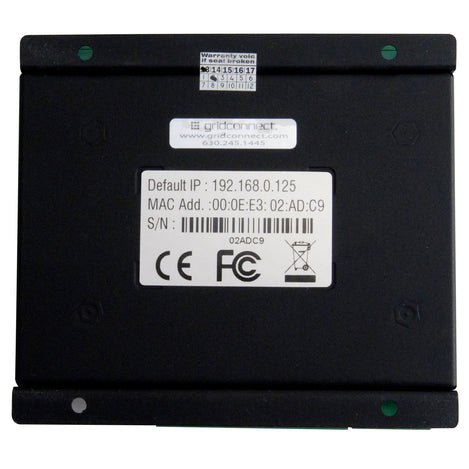

The BF-2300 is an Ethernet IO controller with 12 Digital Inputs and 6 Digital Outputs. This Ethernet TCP/IP based controller is integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet.

The BF-2300 uses a RTOS (Real Time Operating System) and complete TCP/IP protocol stack to provide not only a robust and high performance system to make your device monitored or controlled via Network, but also ease installation and Internet access.

The BF-2300 Web Configuration is easy to operate and totally independent of the operating system platform used.

Features

  • DHCP Client
  • PPPoE Over Ethernet
  • Dynamic DNS
  • TCP/UDP server/client support
  • Backup and Restore configuration
  • Full Network Management via Web
  • Auto-crossover, Auto-negotiating 10/ 100M bps Ethernet
  • Alarm Generation
  • I/O Remote Control
  • Reset Button: Multi-function for system restart and factory default reset
  • Support alarm system via SMS (Short Message Service) to mobile phone via email SMS or e-mail to PC
  • Support I/O control to integrate with other system

Documents and Drivers

Documentation

BF-2300 Datasheet

BF-2300 Installation Diagram

Downloads

BF-2300 Product CD

Specifications

Baud Rate

1200 bps - 230.4 Kbps

Certifications

CE

Characters T

5, 6, 7, 8 data bits

Communication

Support alarm system via SMS (Short Message Service) to mobile phone via email SMS or e-mail to PC

Configuration Methods

User name & password protected for web management

Connector(s)

Types: Terminal Blocks / RJ-45

CPU

16 bit CPU, 100 MHz

Dimensions

127 x 37 x 110 mm

Flow Control

XON/XOFF, RTS/CTS

Input/Output

Inputs:

  • 12 Digital Inputs
  • Optical Isolation, 2500V(DC), Over-voltage Protect: 70V(DC), Dry Contact


Outputs:

  • 6 Digital Relay Outputs
  • Optical Isolation, 2500V(DC), Contact rating: AC:120V@ 0.5A, DC:30V@ 1A

Interface(s)

  • RS232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS485 Signals: Data+/-
  • Ethernet RJ-45 Port: 10/100Base-T, half/full duplex, Auto Cross Over, 1.5 KV Magnetic protected

Management

Support TCP/UDP Server/Client mode. Built-in HTTP/Web server for set up and remote management via any browser easily. Support backup & restore system configuration data.

Memory

256 KB ROM & 768KB SDRAM

MPN

BF-2300

Parity

odd, even, mark, space, none

Ports

Serial Ports: RS232 and RS485 (ALL Terminal Block Connections)

Power Consumption

DC 9-30V, 500 mA

Product Weight

430 g

Protocols

TCP, IP, UDP, Telnet, ARP, DHCP, ICMP, PPPoE, HTTP, DDNS, SMTP

Security/Protection

  • Magnetic Protected: Ethernet port 1.5 KV
  • Surge Protection: Serial port 15 KV ESD

Stop Bits

1 or 2

Supported OS

Windows XP, Windows 2000, Windows NT, Windows95/98 ME, Linux, UNIX

Temperature Range

  • Storage: -20°C to +85°C (-4°F to +185°F)
  • Operating: 0°C to +65°C (32°F to +149°F)

Humidity

5% to 95% RH

Watchdog Timer

Yes
