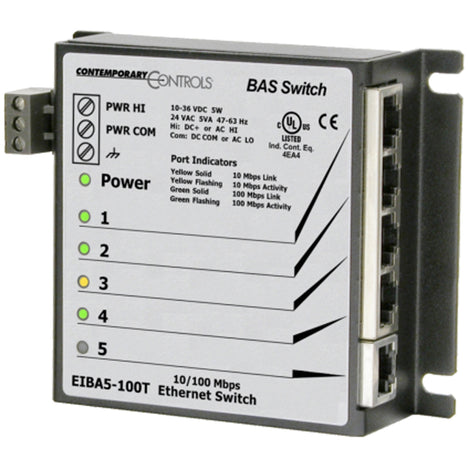

Ethernet Commercial Switch - 5 Port Panel Mount
Ethernet Commercial Switch - 5 Port Panel Mount
Product Images
Ethernet Commercial Switch - 5 Port Panel Mount
$112.00
SKU: GC-ENET-SW5
MPN: EIBA5-100T
Manufacturer: Contemporary Controls
We Have You Covered
Product Information
Product Description
This commercial grade 5 port Ethernet Switch is designed for building automation environments. It divides an Ethernet network into 5 collision domains thereby bridging data links to create larger network diameters than possible with hubs. There are 5 Auto MDI/MDIX ports for attaching local devices. Package includes cable tags for ease of cable identifications.
Features
- 5x 10/100Mb/s Auto Sensing RJ45 Ethernet Ports
- 5x Ethernet activity and status LED's
- Industrial environment EMC compatible
- Power through a quick-disconnect terminal strip
- Writable label for listing connected devices
Documents and Drivers
Documentation
EISK5-100T Ethernet Switch Datasheet
EISK5-100T Ethernet Switch Installation Guide
Specifications
Certifications
CE Mark, UL508 Industrial Control Equipment
Connector(s)
Shielded RJ-45
Enclosure
IP30 rated
Indicators LED
Power, Activity, Link & Data Rate
Interface(s)
- Ethernet: 10/100 Mbps
- 10BaseT/100BaseTX
MPN
EIBA5-100T
Temperature Range
Operating: 0°C to +60°C (32°F to +140°F)
