ESP32-WROVER-E - WI-FI/BT/BLE Module, PCB Antenna
GC-ESP32-WROVER-E-N4R8
ESP32-WROVER-E - WI-FI/BT/BLE Module, PCB Antenna

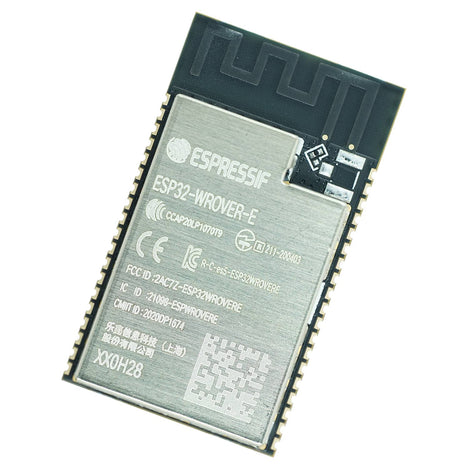

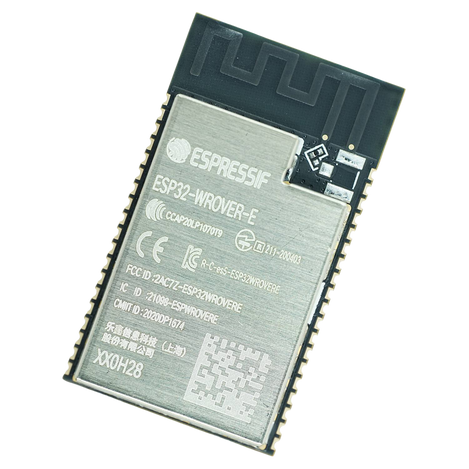

Product Images
ESP32-WROVER-E - WI-FI/BT/BLE Module, PCB Antenna: 4MB Flash
$3.15
5.0 stars 5.0 (1) See customer reviews
SKU: GC-ESP32-WROVER-E-N4R8
MPN: ESP32-WROVER-E-N4R8
Manufacturer: Espressif Systems
Flash Memory
-
$3.15
-
$3.45
-
$3.86
We Have You Covered
Product Information
Product Description
ESP32-WROVER-E module INT is a powerful, generic Wi-Fi/BT/BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
It integrates ESP32-D0WD-V3, with higher stability and safety performance.
The module comes with an internal PCB antenna and is available with a 4 MB or 16 MB external SPI flash and an additional 8 MB SPI Pseudo static RAM (PSRAM).
Order Summary
SKU |
Flash Memory |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-ESP32-WROVER-E-N4R8 | 4MB Flash |
ESP32-WROVER-E-N4R8 |
|
GC-ESP32-WROVER-E-N8R8 |
8MB Flash |
ESP32-WROVER-E-N8R8 |
|
GC-ESP32-WROVER-E-N16R8 |
16MB Flash |
ESP32-WROVER-E-N16R8 |
Features
- 4 MB external SPI flash and an additional 8 MB SPI Pseudo static RAM (PSRAM)
- Class-1, class-2 and class-3 transmitter
- ESP32-D0WD-V3 embedded, Xtensa® dual-core 32-bit LX6 microprocessor, up to 240 MHz
- 448 KB ROM for booting and core functions
- 520 KB SRAM for data and instructions
- 16 KB SRAM in RTC
- 40 MHz crystal oscillator
- Interfaces: SD card, UART, SPI, SDIO, I2C, LED, PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®, compatible with ISO11898-1)
Documents and Drivers
Documentation
ESP-WROVER-32E-INT Datasheet
Specifications
Certifications
FCC/CE-RED/SRRC
Dimensions
(18.00±0.15) mm × (31.40±0.15) mm × (3.30±0.15) mm
Frequency
240 MHz
Interface(s)
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®, compatible with ISO11898-1)
Memory
4,8,16MB Flash, 8 MB PSRAM
MPN
ESP32-WROVER-E
Power Supply
500 mA
Protocols
- Wifi: 802.11 b/g/n (802.11n up to 150 Mbps), A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support
- Frequency: 2412 ~ 2484 MHz
- Bluetooth: v4.2 BR/EDR and BLE specification
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Voltage
3.0 V ~ 3.6 V
