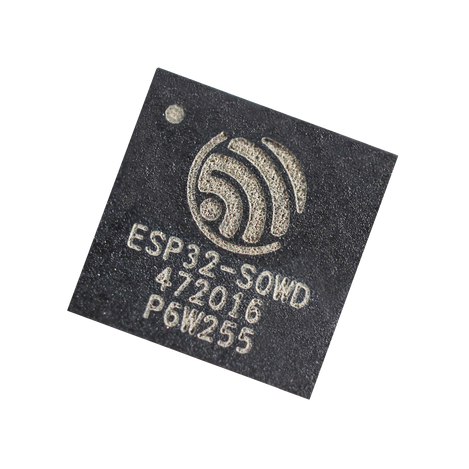

ESP32-S0WD - Single Core 2.4 GHz Wi-Fi & Bluetooth Combo Chip
ESP32-S0WD - Single Core 2.4 GHz Wi-Fi & Bluetooth Combo Chip
Product Images
ESP32-S0WD - Single Core 2.4 GHz Wi-Fi & Bluetooth Combo Chip
SKU: GC-ESP32-S0WD
MPN: ESP32-S0WD
Manufacturer: Discontinued
We Have You Covered
Product Information
Product Description
The ESP32-S0WD has a single-core microprocessor, making it a money saving option for applications where line power is available. Unlike the rest of the ESP32 family, the ESP32-S0WD lacks the second microprocessor used for low power modes, but otherwise has all the same great features and peripherals. This single core option is perfect for gateway applications where line power is available. This combo chip has both Bluetooth (BT 4.2 and BLE) and Wi-Fi. .
ESP32-S0WD Key Features
- Small 5 x 5 mm package
- 2.4 GHz Wi-Fi
- Bluetooth 4.2 and BLE
- Fine resolution clock gating
- Dynamic power scaling
- Built-in Antenna Switches
These features allow the support of leading industry smart home standards including Apple HomeKit.
Features
- Built-In Antenna Switches
- Power Amplifier
- RF Balun
- Low Noise Receive Amplifier
- Compliant with Bluetooth v4.2 BR/EDR and BLE specification
- Bluetooth Class 1, Class 2, and Class 3 transmitter without external power amplifier
- BT 4.2 controller and host stack
- 802.11 b/g/n/e/i Wi-Fi
- Wi-Fi Antenna diversity and selection
- Fine Resolution Clock Gating
- Supports the industry leading smart home standards including Apple HomeKit
Peripherals and Sensors:
- 12-bit SAR ADC up to 18 channels
- 2 x 8-bit D/A convertors
- 10 x touch sensors
- On-chip temperature sensor
- On-chip Hall sensor
- 4 x SPI, 2 x I2S, 2 x I2C, 3 x UART
- CAN 2.0
- IR (TX/RX)
- Motor PWM
- LED PWM
Documents and Drivers
Documentation
ESP32 Datasheet
ESP32 Technical Reference Manual
ESP32 Hardware Design Guidelines
ESP32 Audio Design Guidelines
ESP32 Bluetooth Networking User Guide
ESP32 Bluetooth Architecture
Espressif HomeKit SDK Product Brief
BT/BLE Coexistence Demo
ESP32 Instruction Set and Examples
ESP32 FAQs
ESP32 Phy Init Bin Parameter Configuration Guide
ESP32 Flash Encryption Guide
Downloads
ESP32 RF Performance Test Demonstration
ESP32 Certification and Test
ESP32 AT
Flash Hardware Tools (ESP8266 & ESP32)
Specifications
Chip Package
QFN 5x5
Controller(s)
- Infrared Remote Controller
- DMA controllers
- Bluetooth Link Controller
- BT 4.2 Controller
- SD/SDIO/MMC HOst Controller
- PID Controller
- Efuse Controller
- Media Access Controller (MAC)
- Pulse Width Modulation (PWM) controller
Core
Single Core
CPU
Xtensa® 32-bit LX6 microprocessor
Dimensions
5.0 x 5.0 x 0.85 mm
Interface(s)
- 4 x SPI, 2 x I2S, 2 x I2C, 3 x UART, CAN 2.0, IR (TX/RX)
- Motor PWM, LED PWM (up to 16 channels)
- 12-bit SAR ADC up to 18 channels, 2 x 8-bit D/A converters
- 10 x touch sensors
Memory
- 448 KByte ROM
- 520 KByte SRAM
- 8 KB SRAM in RTC
- 1 kbit of eFuse
MPN
ESP32-S0WD
Pins
48 Pin QFN package
Power Supply
2.2 V to 3.6 V
Protocols
- Wi-Fi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
- Wi-Fi: A-MPDU and A-MSDU aggregation and 0.4 guard interval support
- Bluetooth: Bluetooth v4.2 BR/EDR and BLE specification
- Network: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
Temperature Range
- Operating: -40°C to +125°C (-40º to 257ºF)
- Storage: -40ºC to 150ºC (-40º to 302ºF)
Timers
4 General-Purpose Timers
Watchdog Timer
3
