This product is discontinued and no longer available.

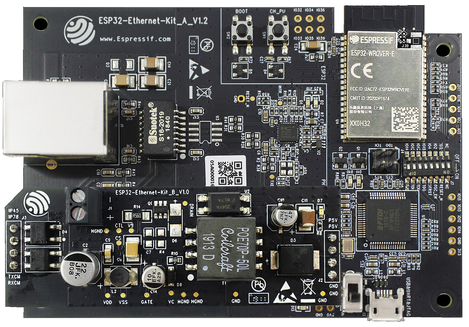

ESP32-Ethernet-Kit - ESP32 Ethernet Kit V1.2
ESP32-Ethernet-Kit - ESP32 Ethernet Kit V1.2
Product Images
ESP32-Ethernet-Kit - ESP32 Ethernet Kit V1.2
SKU: GC-ESP-ETHERNET-KIT
MPN: ESP32-Ethernet-Kit
Manufacturer: Espressif Systems
We Have You Covered
Product Information
Product Description
ESP32-Ethernet-Kit is an ESP32-based development board produced by Espressif.
It consists of two development boards, the Ethernet board A and the PoE board B, The Ethernet board contains Bluetooth / Wi-Fi dual-mode ESP32-WROVER-E module and IP101GRI, a Single Port 10/100 Fast Ethernet Transceiver (PHY). The PoE board (B) provides power over Ethernet functionality. The A board can work independently, without the board B installed.
Features
- 10/100 Fast Ethernet with RJ45 interface
- PoE power
- Wi-Fi 802.11b/g/n
- JTAG debug
Documents and Drivers
Documentation
ESP32 Ethernet Kit V1.2 User Guide
Ethernet Board (A) Schematic
PoE Board (B) Schematic
Ethernet Board (A) PCB Layout
PoE Board (B) PCB Layout
Specifications
Interface(s)
RMII
Memory
4 MB Flash+ 8 MB PSRAM
MPN
ESP32-Ethernet-Kit
Product Weight
5.463584 oz
