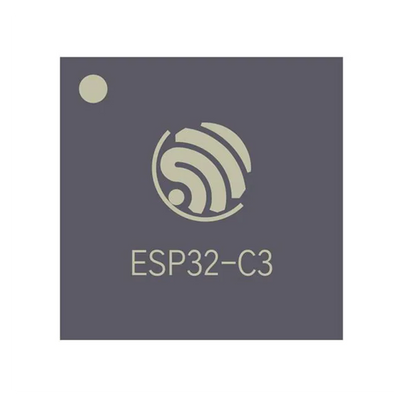

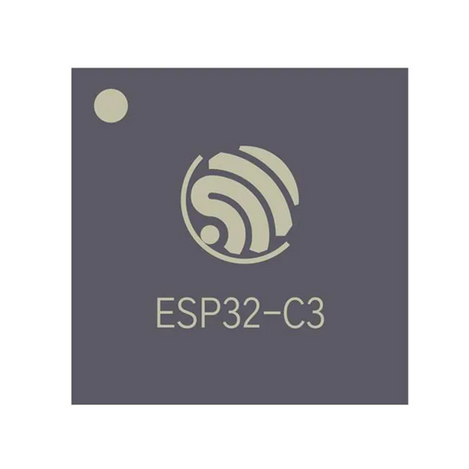

ESP32-C3FN4 - 4MB Flash Wi-Fi & BLE Microcontroller Chip
ESP32-C3FN4 - 4MB Flash Wi-Fi & BLE Microcontroller Chip
Product Images
ESP32-C3FN4 - 4MB Flash Wi-Fi & BLE Microcontroller Chip
$1.09
SKU: GC-ESP32-C3FN4
MPN: ESP32-C3FN4
Manufacturer: Espressif Systems
Delivery: Ships within 8 to 12 weeks
Free shipping to the US on orders over $100
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The ESP32-C3FN4 SOC has 4MB flash and is the next generation replacement for the ESP8266EX SOC. This new chip makes new designs simple and is a very cost effective solution. Based on a single RISC-V core, performance has improved.
Other ESP32-C3FN4 updates include
- advanced security
- USB 2.0
- BLE 5.0 with long range support
- power management
The ESP32-C3FN4 is part of the ESP32-C3 family of parts and provides the lowest cost fully certified solution of all the Espressif parts.
Trouble shooting is improved with on-chip debug module (DM), compliant with RISC-V debug specification v0.13. Also, an external debugger is supported using the industry-standard JTAG/USB port. The debugger provides direct system bus access (SBA) to memory and peripherals along with up to 8 trigger breakpoints/watchpoints.
Features
- SMD IC ESP32-C3
- RISC-V single-core MCU
- 4 MB flash inside, 384 KB ROM, 400 KB SRAM (16 KB for cache), 8 KB SRAM in RTC
- 2.4G Wi-Fi & BLE 5.0 combo
- QFN 32-pin
- 5*5 mm
Documents and Drivers
Documentation
ESP32-C3FN4 Datasheet
Specifications
Controller(s)
LED PWM, Full Speed USB Serial/JTAG, General DMA, TWAI®
Interface(s)
SPI, Duel SPI, Quad SPI, QPI, UART, I2C, I2S, 12-bit SAR ADCs, virtual Wi-Fi interfaces
Memory
- 4MB Flash
- 384 KB of ROM
- 400 KB of onchip SRAM
- RTC memory: 8 KB of SRAM
- 4 Kbit of eFuse
MPN
ESP32-C3FN4
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Timers
2 × 54-bit general-purpose timer
Watchdog Timer
3
