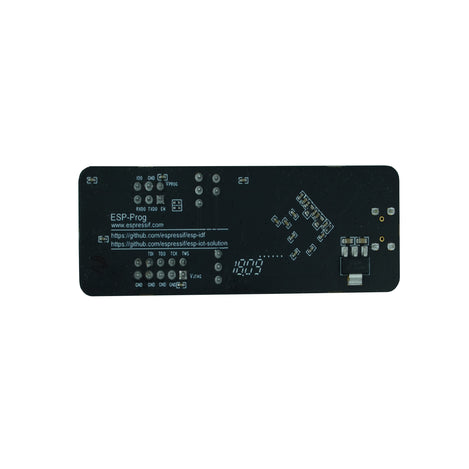

ESP-PROG Development and Debugging Tool
ESP-PROG Development and Debugging Tool
Product Images
ESP-PROG Development and Debugging Tool
$15.00
SKU: GC-ESP-PROG
MPN: ESP-PROG
Manufacturer: Espressif Systems
Stock Status: In stock
Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description
The ESP-Prog is a development and debugging tool that easily connects to PC by USB port. This device uses FT2232HL as a USB Bridge Controller chip to support serial and parallel interfaces. To ensure compatibility with development boards the ESP-Prog offers a power supply ranging from 3.3V to 5V through pin headers, depending on the user board’s requirements.
ESP-Prog functions include:
- Automatic Firmware Downloading
- Serial Communication
- JTAG online debugging for ESP32 platform
- Support on ESP8266 and ESP32 platforms
Features
- 10 pin JTAG 1.27mm and 2.54mm
- 6 pin PROG 1.27mm and 2.54mm
- Boot mode selection pin (ESPIO0)
- Reset pin (ESPEN)
- UART interface (TXD, RXD)
- On board delay circuit
Documents and Drivers
Downloads
ESP-Prog Reference Design
FT2232HL Chip Driver
Specifications
Dimensions
25.1mm x 73.4mm
Indicators LED
RGB
Interface(s)
- I/O
- USB
- Header connecters
MPN
ESP-PROG
Output Voltage
3.3V to 5V
Pins
- 10 pin JTAG 1.27mm and 2.54mm
- 6 pin PROG 1.27mm and 2.54mm
