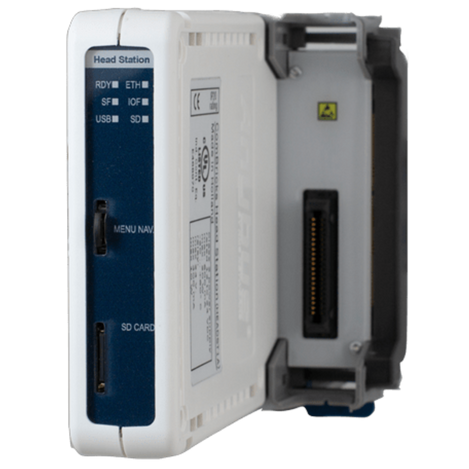

ComBricks Head Station Type 1C Side Station

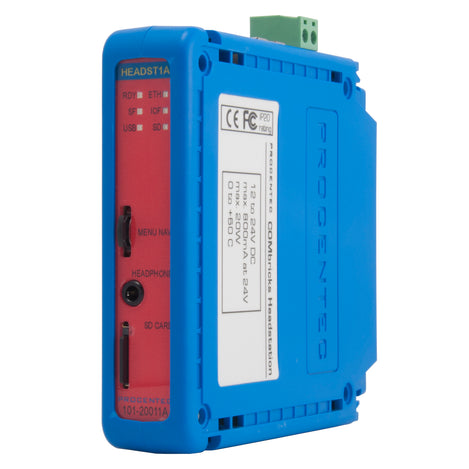

COMbricks Head Station Type 1C

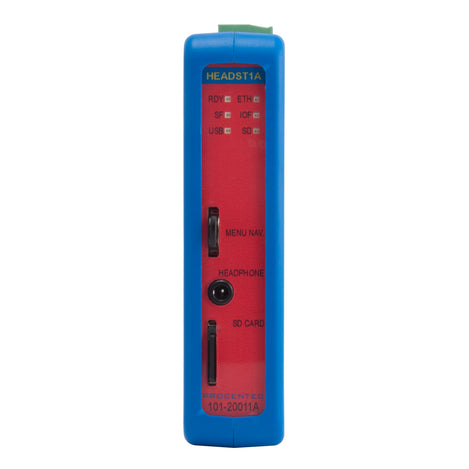

COMbricks Head Station Type 1C Front

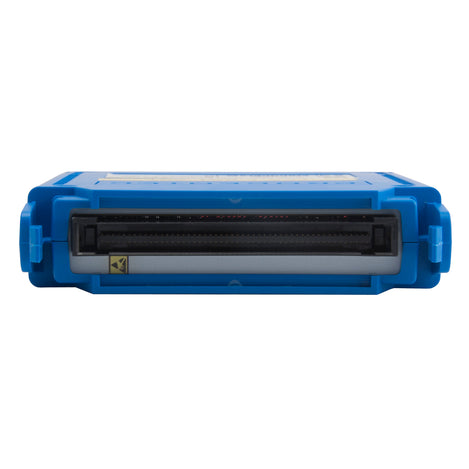

COMbricks Head Station Type 1C Backplane Connection

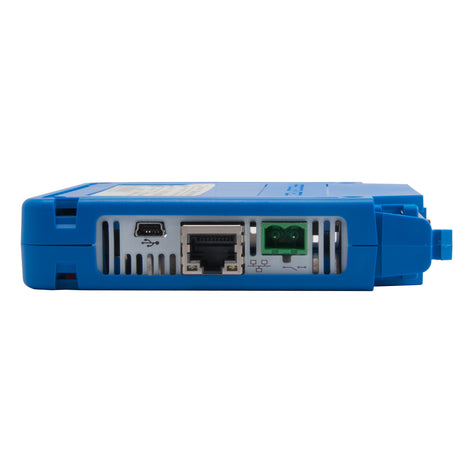

COMbricks Head Station Type 1C Network

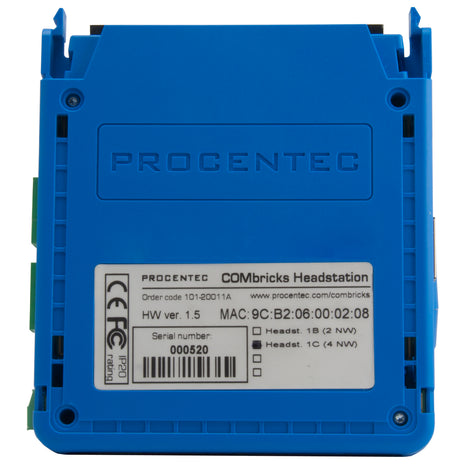

COMbricks Head Station Type 1C Side 1

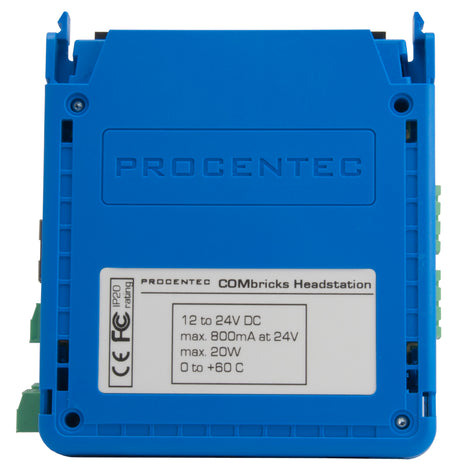

COMbricks Head Station Type 1C Side 2
ComBricks Head Station Type 1C
Product Images
ComBricks Head Station Type 1C
$3,443.00
SKU: GC-PB-CB-HS-1C
MPN: 101-20011C
Manufacturer: Anybus Diagnostics
Stock Status: In stock
We Have You Covered
Product Information
Product Description
ComBricks™ is a Modular PROFIBUS repeater platform that allows you to build an intelligent repeater backbone for permanent monitoring of up to four PROFIBUS Networks at the same time!
All ComBricks systems consist of a Head Station plus up to 10 repeater modules. The repeater modules come with either one or two channels (PROFIBUS segments) each, so it is possible to build a backbone of up to 20 segments with a single ComBricks system. In addition, each segment can be assigned to any one of four possible networks!
The Head Station has an Ethernet port, and when equipped with ProfiTrace OE, the ComBricks headstation will allow you to remotely monitor up to 4networks (as designated on the modular repeaters) over the network.
ProfiTrace OE allows you to monitor the installation remotely over the network using just a web browser. It is now possible to check the health of your installation from anywhere in the world using ProfiTrace OE, thus allowing you to get maintenance personnel on the scene more quickly, and to diagnose and correct the problem fast.
The ComBricks Head Station Type 1C consists of a Type 1B Head Station and an expandable backplane unit. The Type 1C version of the Head Station includes ProfiTrace OE and allows you to monitor up to 4 PROFIBUS Networks.
Features
ProfiTrace OE - Remote monitoring in a web browser
Permanent and simultaneous monitoring of up to 4 PROFIBUS networks (2 are licensed with the Basic Kit) is a powerful feature of COMbricks. Remote PROFIBUS Networks and a shortage of (qualified)technical staff, are causing significant network management problems. COMbricks offers a solution by remotely monitoring PROFIBUS installations over the Internet and by providing email alerts to key personnel.
COMbricks does not require any PC software. You only need a standard web browser to view network information in an understandable format (ProfiTrace OE). Moreover a constant connection with a PC to the COMbricks is NOT necessary. The information will be there waiting whenever you pull up the COMbricks ProfiTrace OE web-pages in your browser.
The monitoring and logging is performed by the repeater modules which are inserted in the backplane. COMbricks is the first system that has integrated the busmonitor into actual network components that serve another purpose (repeaters). Deploying COMbricks repeaters for regular automation means an automatic availability of ProfiTrace OE.
E-mail messages provide real-time alerts should malfunctions be detected in the PROFIBUS installation. These can be easily set up through ProfiTrace OE's configuration pages.
A brand new functionality within ProfiTrace OE is the device location detection. It gives a detailed overview of on which repeater segment the devices are installed.
Documents and Drivers
Documentation
ComBricks Head Station Type 1C Datasheet
ComBricks User Manual
Webinar
How To Build A Better PROFIBUS Network Using ComBricks (1 hour)
Downloads
ComBricks DWG Drawing
Specifications
Cable Length
Ethernet: Max 100 m
Compatible Backplane Units
101-200023, 101-200012
Connector(s)
RJ45 Ethernet Connector
Current
- Consumption: 800 mA (fully loaded)
- Available to Backplane Modules: 2.5 A
Interface(s)
Link Speed: 10/100 Mbps
Internal Web Server
20 Simultaneous web server clients
Memory
SD Card: SD & SDHC (Max 32GB, 2GB included)
MPN
101-20011C
Network
PROFITRACE OE for 4 PROFIBUS Networks
Power Supply
- Redundant Power Supply
- Power supply Wire Diameter: <2.5 mm
Protocols
HTTP, FTP, SMTP, TELNET, DHCP
Security/Protection
Reverse Polarity Protection
