This product is discontinued and no longer available.

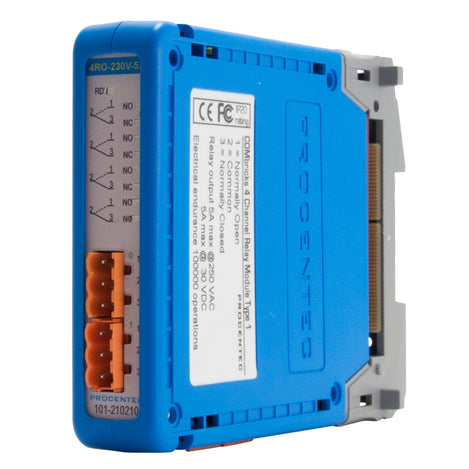

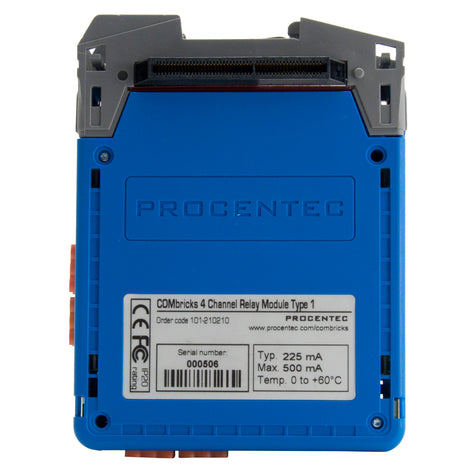

ComBricks 4 Relay Module

Leave a review

SKU: GC-PB-CB-RLY4

MPN: 101-210210

Manufacturer: Anybus Diagnostics

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The ComBricks Standard 4 channel relay module with normally Open and normally Closed connectors allows you to build up a ComBricks system to respond to network events, or to create PROFINET remote I/O systems. The module’s relays can also be controlled manually or by a timer through the web server (Output Control menu). In addition, the module will be able to be used in the future to create PROFIBUS DP slaves with I/O. The relays are suitable for 5 A – 230 VAC.

The relays can be configured in the ComBricks web server (Output Control menu) to respond directly to bus problems such as: bus voltage too low, master lost and retries. This unique feature allows applications to directly and independently act on the machine / process when the bus communication becomes unreliable. This is especially important when there are environmental or human safety impacts when a system goes down.

Examples of devices that can be hooked up to the relays:

  • Power switches
  • Hold switches
  • Indicators
  • Backup systems
  • Device I/O
  • Doors
  • LED towers

The configured settings are saved and activated after reset or power-up.



COMBRICKS 4 RELAY MODULE


Learn more about the ComBricks product family.

Features

  • Relay modules can be used in combination with any other type of COMbricks modules in the same system.

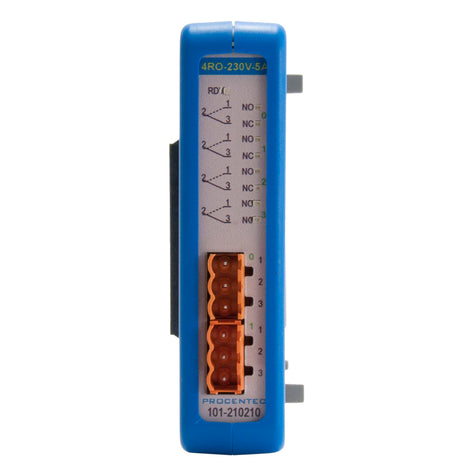

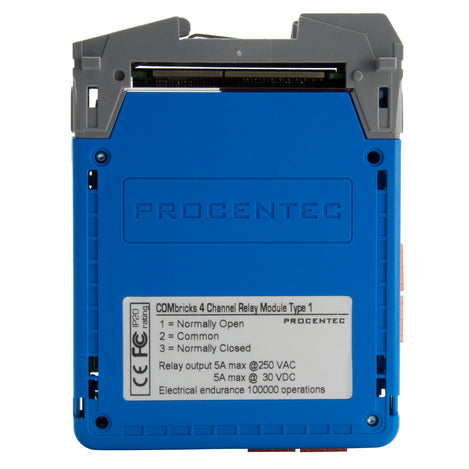

  • Each relay has its own 3 pole Terminal Block Connector. Connect pins 1 & 2 for Normally Open and pins 2 & 3 for Normally closed relays.

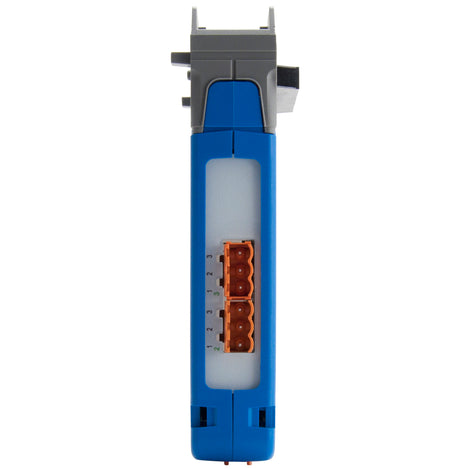

  • Two relay connectors on the front, and two on the bottom side of the module.
  • Up to 31 Relay and Digital Output modules may be combined in a single system.
  • DIN-rail mount.
  • Back-plane extender included.
  • 1 year warranty

Documents and Drivers

Documentation

ComBricks 4 Relay Module Datasheet

ComBricks User Manual

Downloads

ComBricks DWG Drawing

Specifications

Additional Software

152

Backplane

  • Controllers: Web Servier, PROFINET IO device, DP slave
  • 32 Modules (all slots)
  • 225mA current consumption

Compatible Backplane Units

Procentec 101-200011, 101-200023, 101-200012

Connector(s)

2 Relay Connectors on front and 2 on bottom of the module

  • 3 pins per connector (No, Common, Nc)
  • < 2.5 mm 2 wire diameter
  • stranded or solid core wire

Current

5 A per relay

Dimensions

140 x 110 x 25 mm

Interface(s)

  • 300 mOhm resistance (including connectors)
  • 100000 Toggles at 5 A - 230 VAC

Internal Web Server

  • Customizable channels
  • Manual ON/OFF
  • Timer ON/OFF
  • Event Notices

Mounting

DIN-Rail

MPN

101-210210

Power Consumption

410 mA current consumption

Power Supply

Provided through the backplane

Product Weight

125g

Software

Requires Head Station Firmware: VI.260 or later

Temperature Range

0°C to +60°C (32°F to +140°F)

Transmission Speed

10/100 Mbps (100BaseTX, 10BaseT)

Voltage

230 VAC
